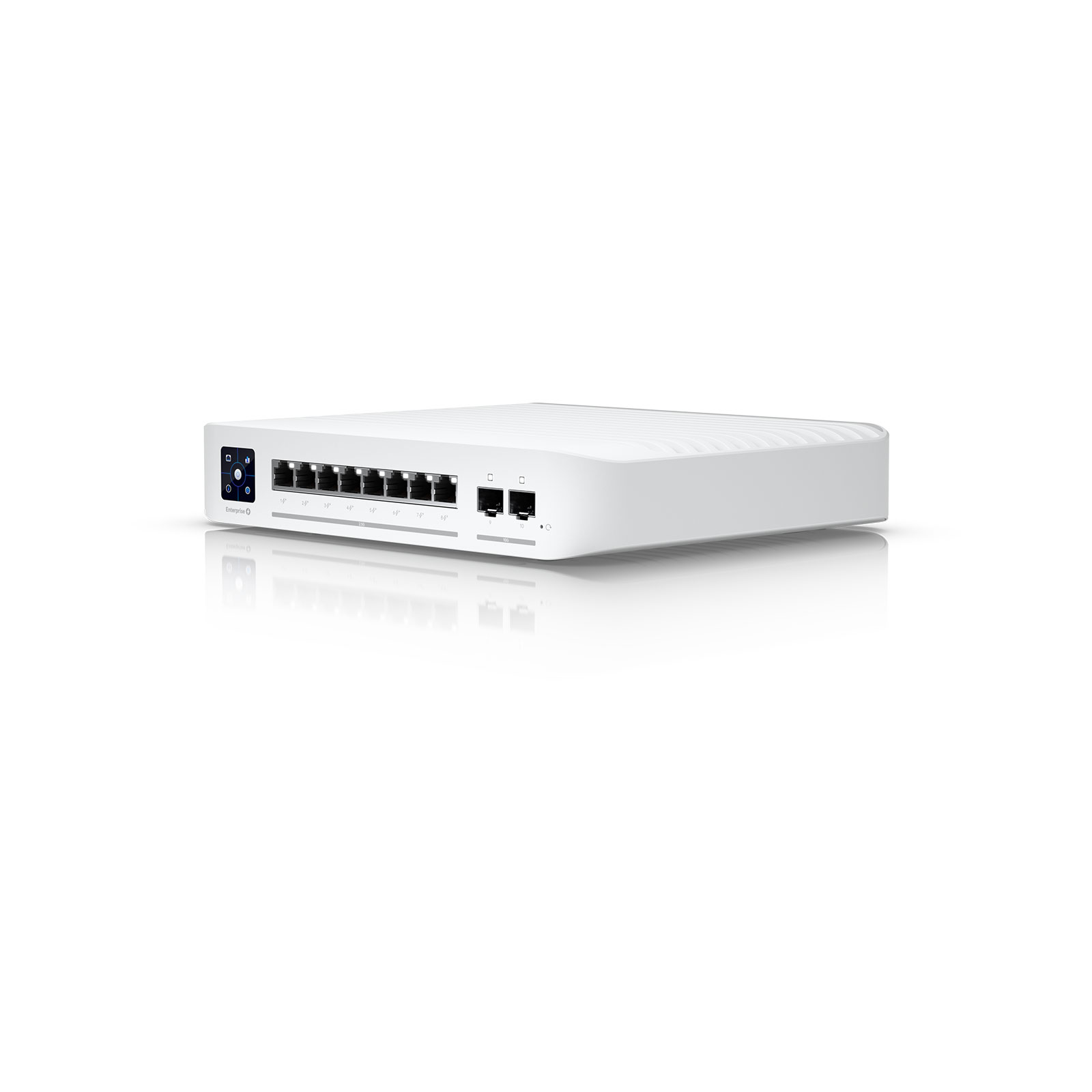

Ubiquiti USW-Enterprise-8-PoE UniFi Switch Enterprise 8 PoE
The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
* Layer 3 switching will become available in a future firmware update.
Features:
• (1) 1.3" LCM color touchscreen with AR switch management
• (8) 2.5GbE, 802.3at PoE+ RJ45 ports
• (2) 10G SFP+ ports
• 120W total PoE capacity

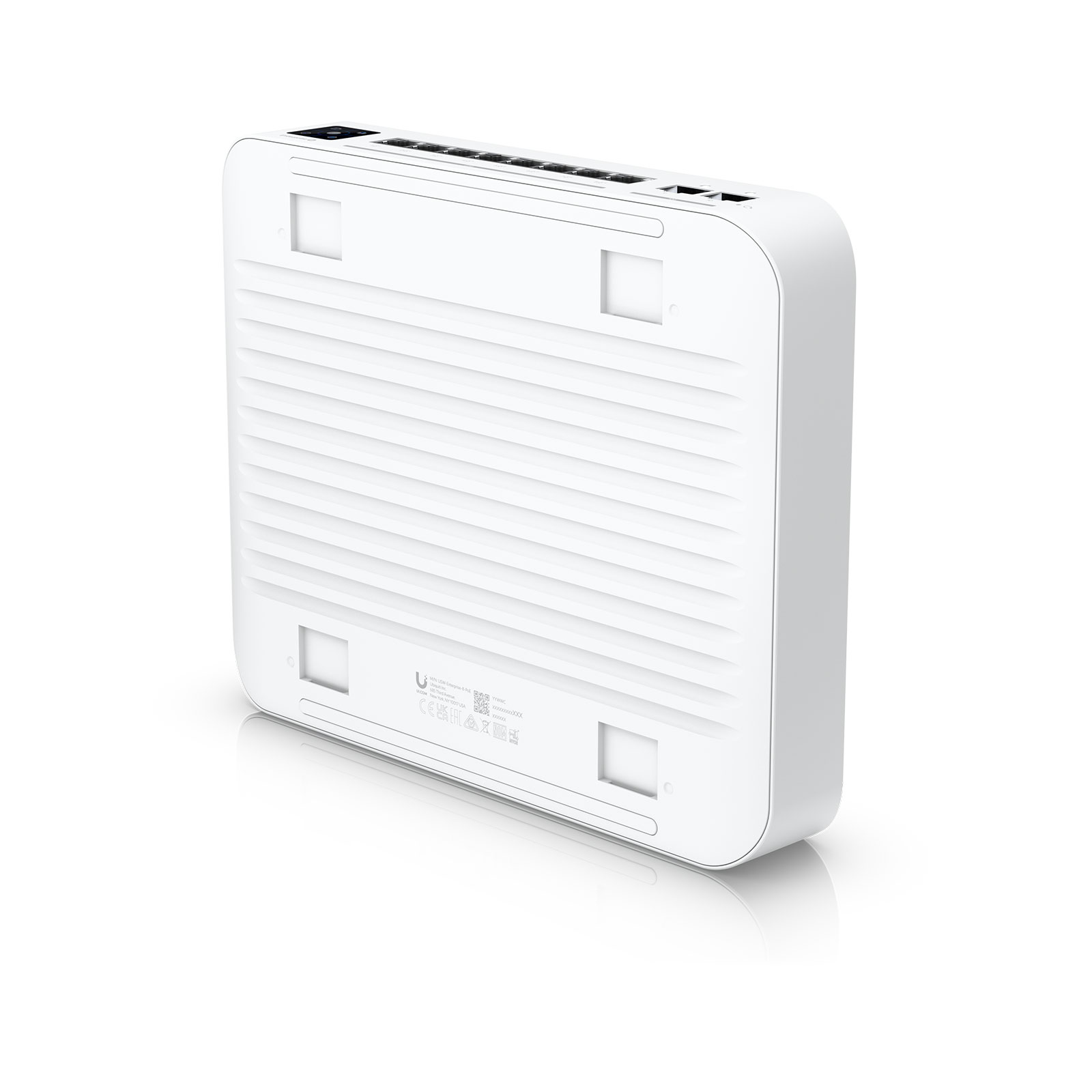

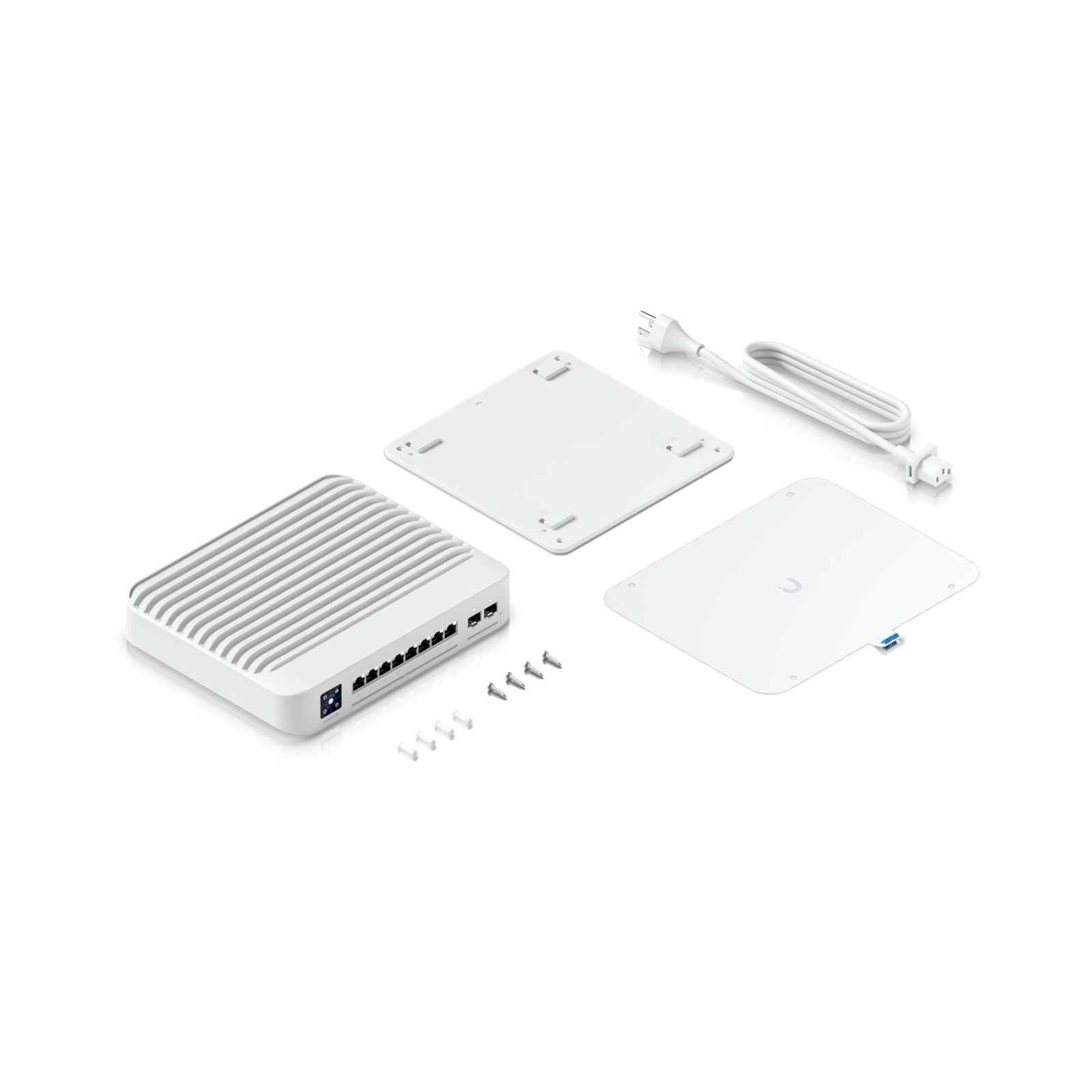

• Wall-mountable (kit included)
Managed with UniFi Network Application Version: 6.3.51 and later.
Works with UniFi Network Application
• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app
| Specifications | |

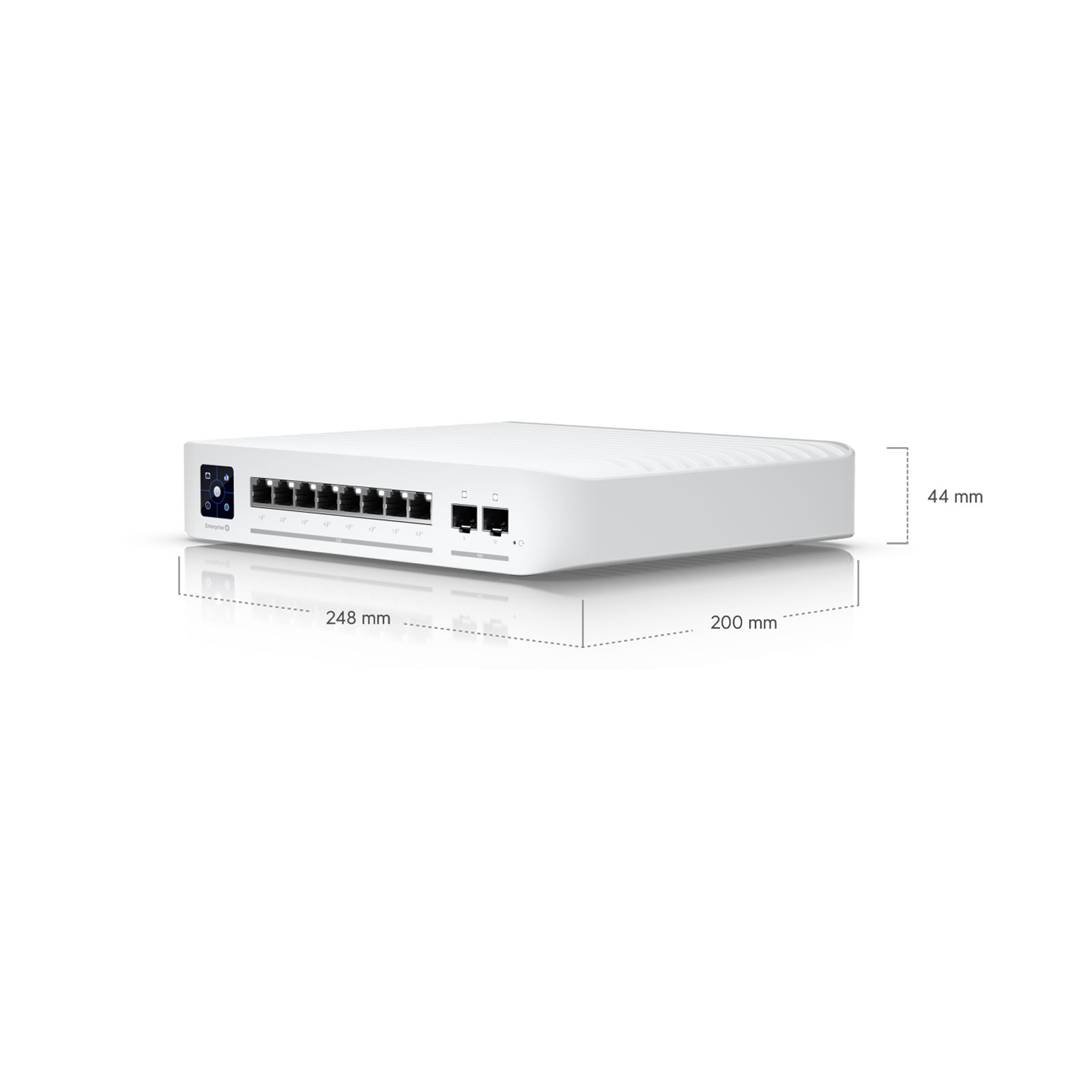

| Dimensions | 200 x 248 x 44 mm |
| Weight | 2.4 kg |
| Enclosure Materials | Polycarbonate |
| Mount Material | Polycarbonate |
| Total Non-Blocking Throughput | 40 Gbps |
| Switching Capacity | 80 Gbps |
| Forwarding Rate | 59.52 Mpps |
| Max. Power Consumption | 120W |
| Power Method | (1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 150W |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (8) 1/2.5 Gbps RJ45 Ethernet |
| SFP+ Interfaces | (2) 1/10 Gbps SFP+ |
| PoE Interfaces | (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Max. PoE+ Wattage per Port by PSE | 32W |
| Voltage Range 802.3af Mode | 44 to 57V |
| Voltage Range 802.3at Mode | 50 to 57V |
| Services | SMB Layer 3* PoE Gigabit Ethernet Switch *Layer 3 feature will be able in the future firmware release. |
| LCM Display | (1) 1.3" Touchscreen Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Ethernet | White: Link or Activity |
| SFP+ | White: Link or Activity |
