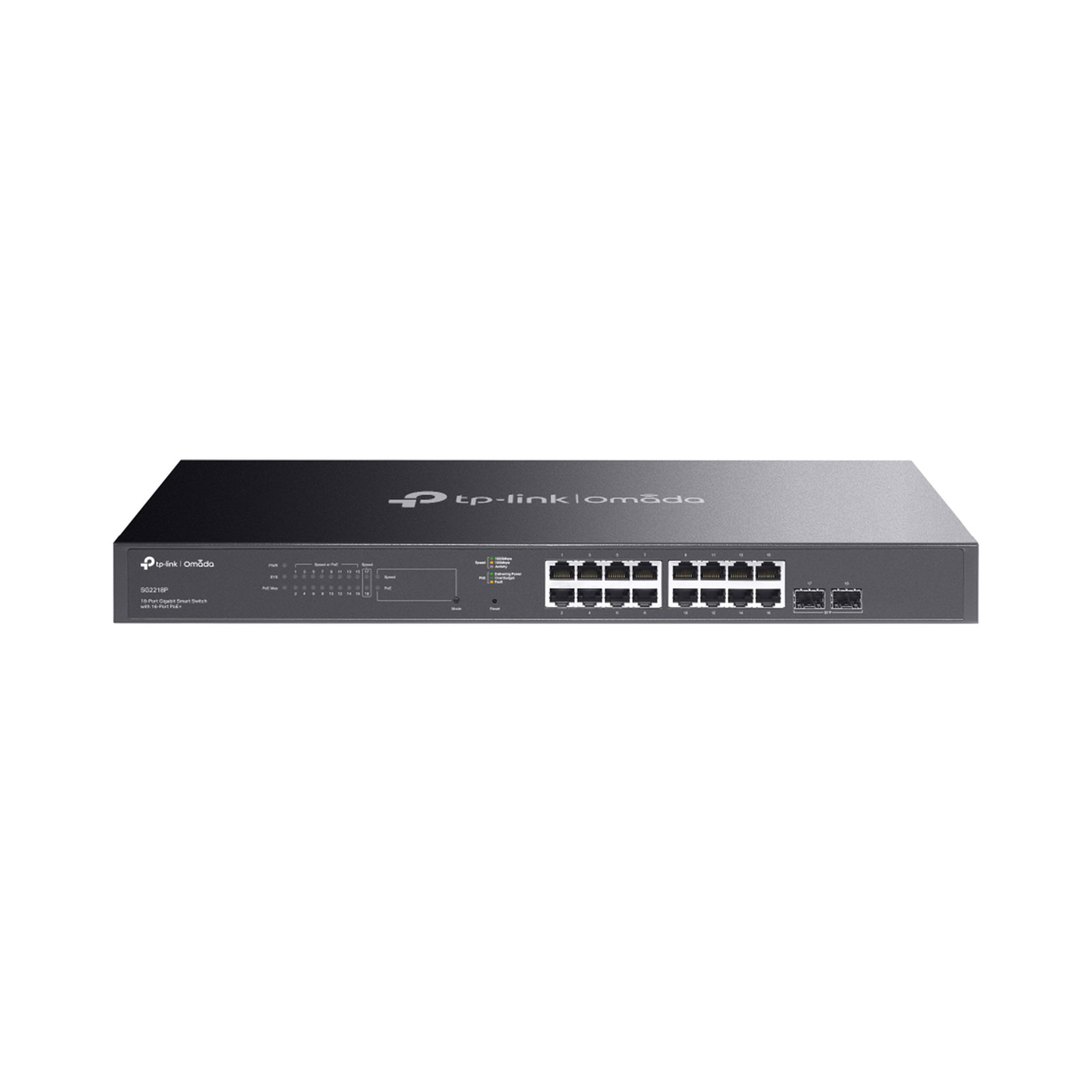

TP-LINK SG2218P V2.2 Omada 18-Port Gigabit Smart Switch with 16-Port PoE+
|

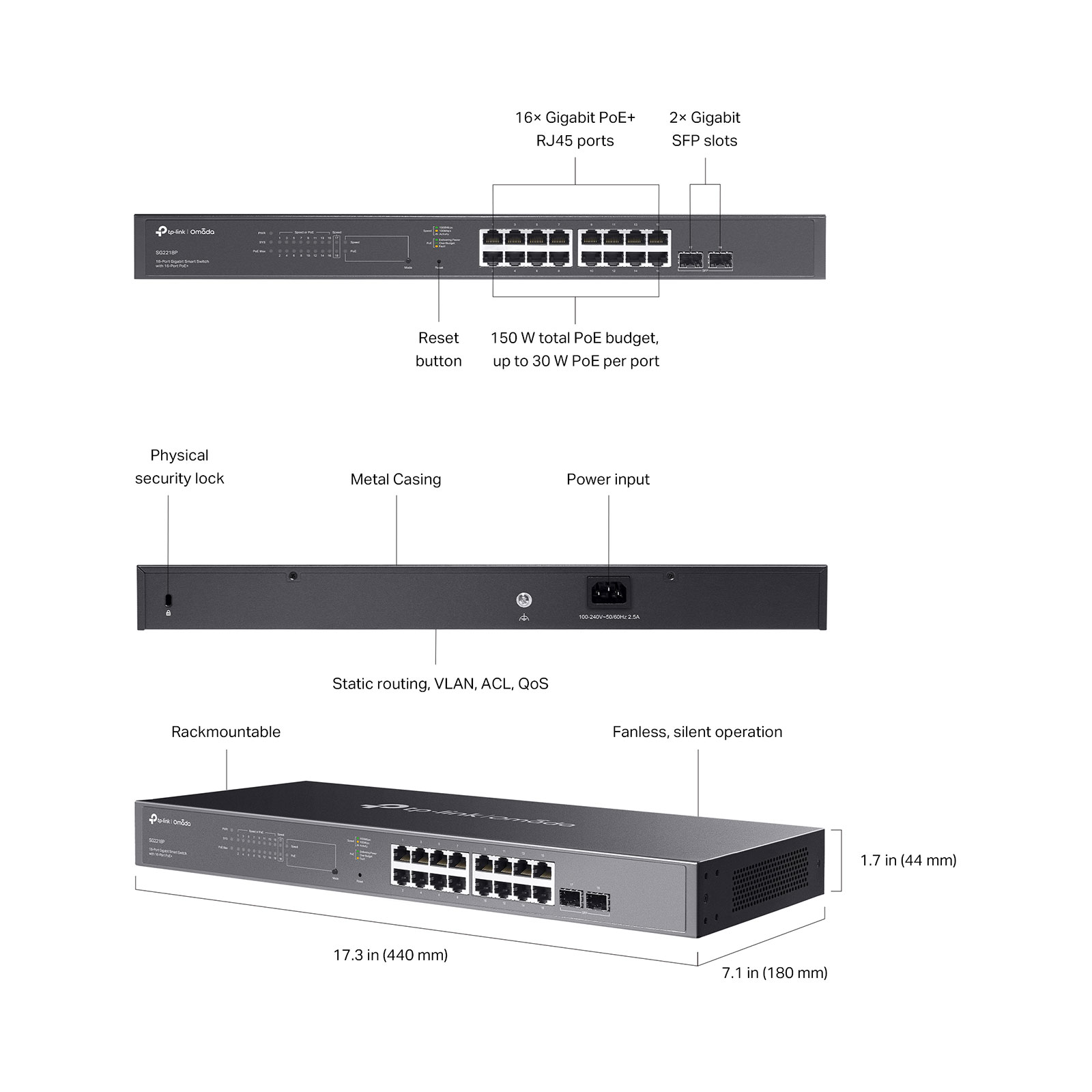

• 16× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP Slots |
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios
• Surveillance
• Conference Call
• Wi-Fi Coverage
• Wired Connections
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
| SPECIFICATIONS | |
| Interface | 16x 10/100/1000Mbps PoE+ RJ45 ports 2x Gigabit SFP Slots |
| Flash | 32 MB |
| DRAM | 256 MB |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-X Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber) |
| PoE Standard | 802.3af/at |
| PoE Ports | 16, up to 30 W |
| PoE Power Budget | 150 W |
| Fast PoE | YES |
| Perpetual PoE | YES |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 Mbit |
| Transmission Method | Store and Forward |
| Number of IP Interfaces | 32 |
| Number of Static Routers | 32 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| Power Supply | 100-240V AC, 50/60Hz |
| Max Power Consumption | 172.9 W (220 V/50 Hz @ 25 °C) (with 150 W PD connected) 178.2 W (110 V/60 Hz @ 25 °C) (with 150 W PD connected) |
| Standby Power Consumption | 5.7 W (220 V/50 Hz) 6.4 W (110 V/60 Hz) |
| Max Heat Dissipation | 588.00 BTU/hr (220 V/50 Hz @ 25 °C) (with 150 W PD connected) 605.81 BTU/hr (110 V/60 Hz @ 25 °C) (with 150 W PD connected) |
| Protection | Air: ±8.5 kV, Contact: ±4.5 kV |
| MTBF | 612090 h @ 25 °C |
| Net Weight | 2.5 kg |
| Standby Power Consumption | 8.58 W (no link,110v/60 Hz) |
| Dimensions (W x D x H) | 440 × 180 × 44 mm |
| Surge Protection | Service port: ±6 kV in common mode |
| Fan Quantity | Fanless |
| Installation | Rack Mountable |
| Operating Temperature | -5 ̊C to 45 ̊C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, FCC, RoHS |
