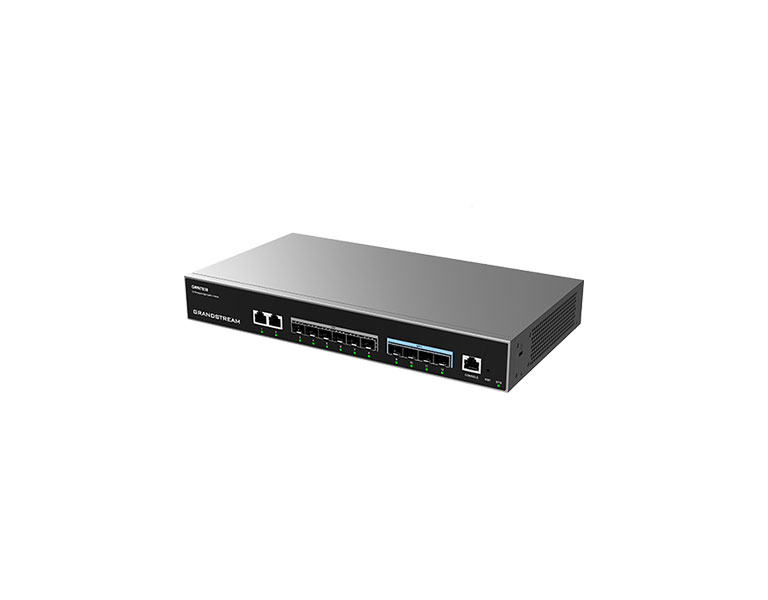

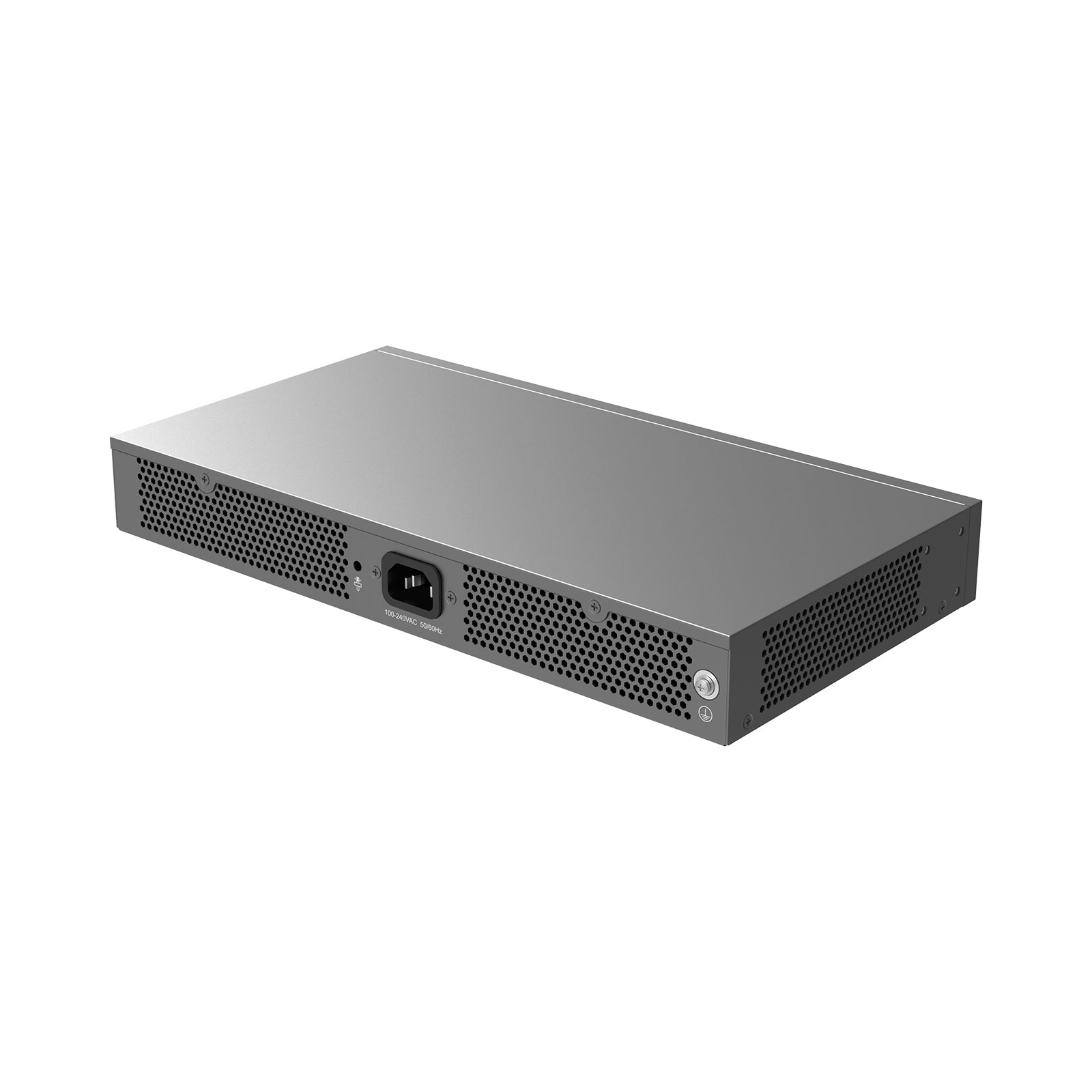

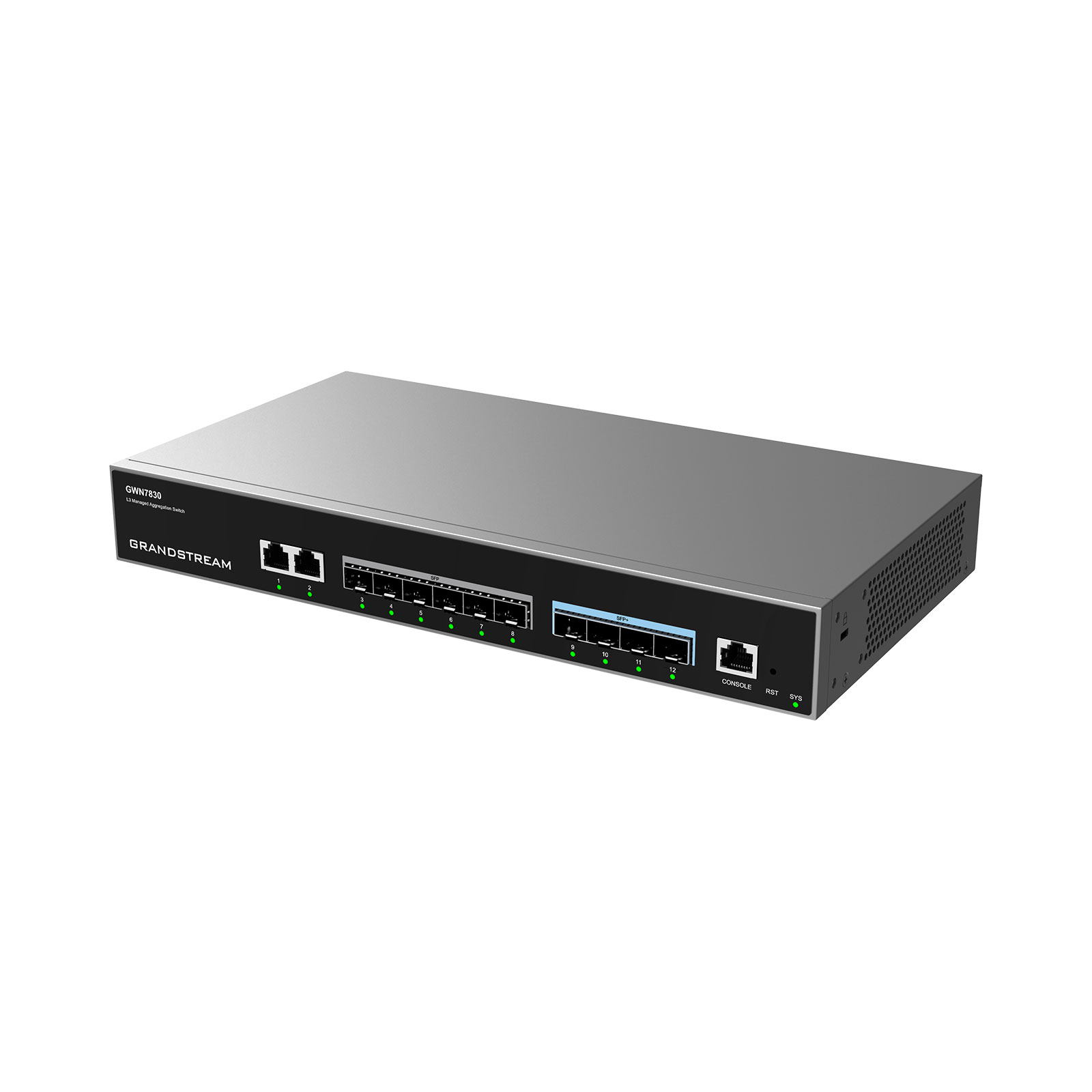

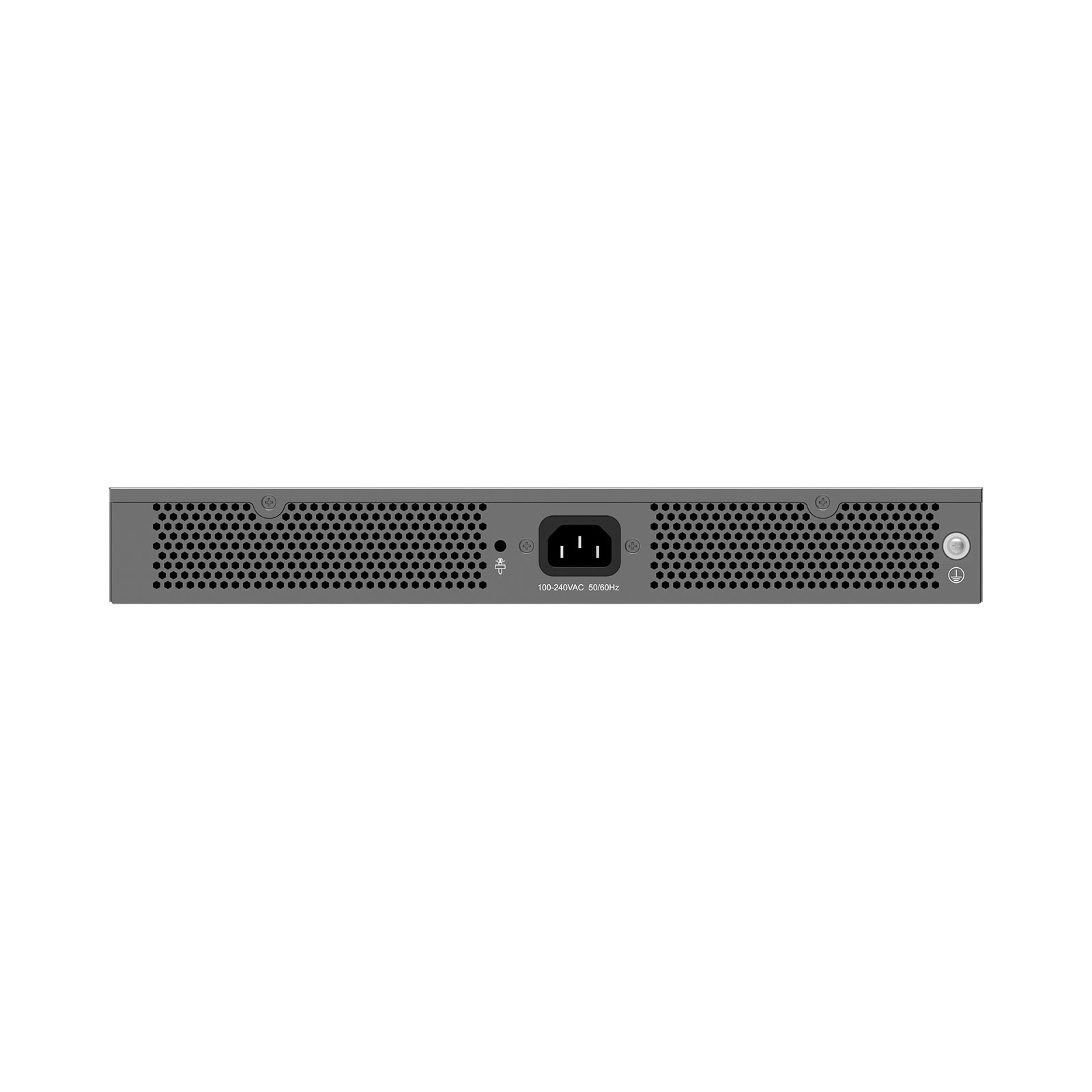

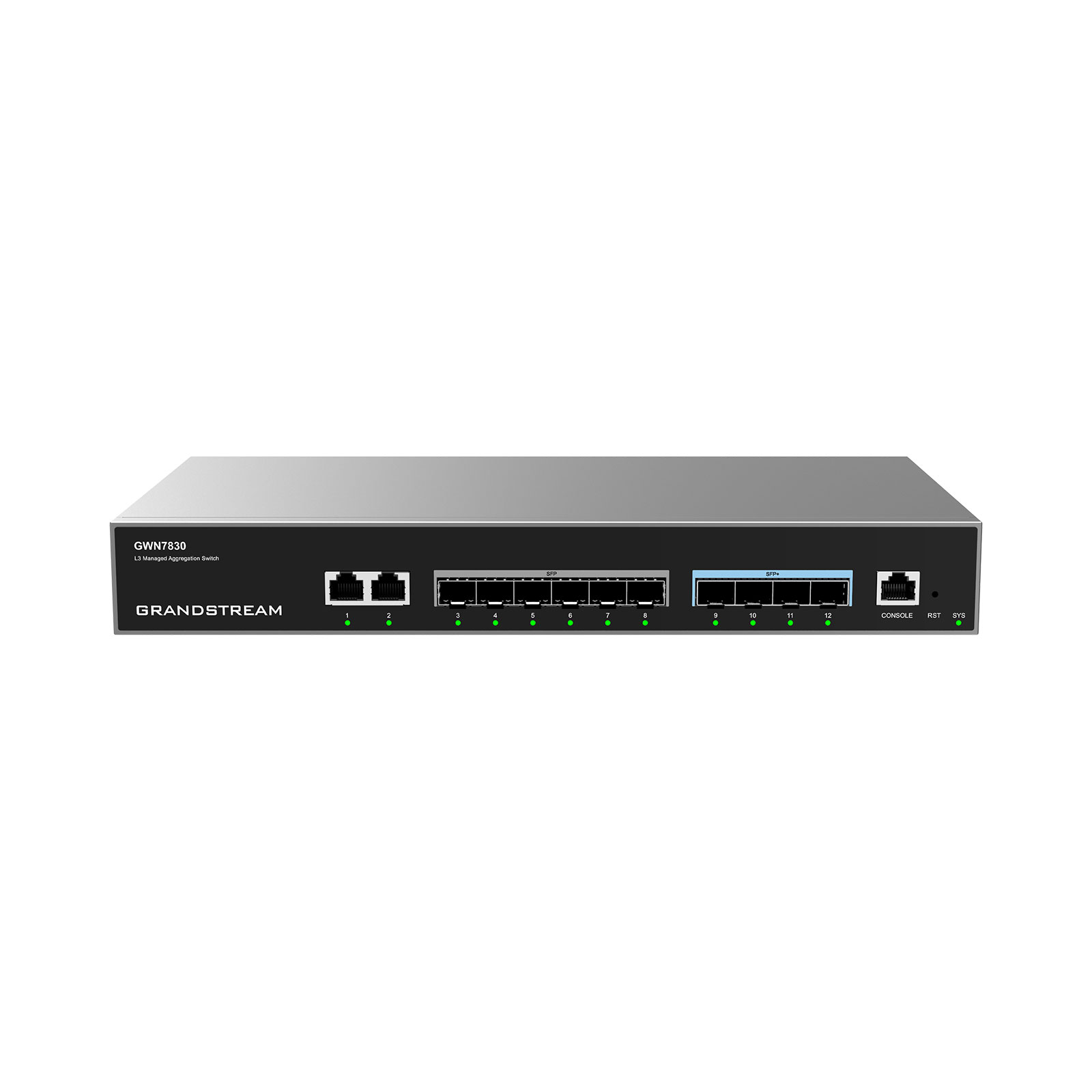

Grandstream GWN7830 6x SFP, 4X SFP+, 2X GBE L3 Managed Switch
The GWN7830 is Layer 3 aggregation managed switch that allows enterprises to build scalable, secure, high performance and smart business networks that are fully manageable and support maximum capacity. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7830 can be managed in several ways, including the local Web user interface of the switch, and CLI, the command line interface. This switch is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service, flexible security settings, and support for maximum network capacity, the GWN7830 Series provides enterprise-grade Layer 3 aggregation switches ideal for medium-to-large deployments.
Features:
• 2/4 Gigabit Ethernet ports, 6/24 Gigabit SFP ports, and 4/12 10Gigabit SFP+ ports
• Supports deployment in IPv6 and IPv4 networks
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
• Built-in QoS allows for prioritization of network traffic
| Specifications | |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| Gigabit Ethernet Ports | 2 |
| Gigabit SFP Ports | 6 |
| Gigabit SFP+ Ports | 4 |
| Maximum no. of Supported Modules | SM-1G: 6 MM-1G: 6 RJ45-1G: 3 SM-10G: 4 MM-10G: 4 RJ45-10G: 2 *Note: RJ45-1G, RJ45-10G modules must be interval inserted |
| Console | 1 |
| Integrated Power Supply | 30W |
| Surge Protection | ± 6KV CM and DM for power ± 4KV CM for network ports |
| ESD | ± 12KV for contact discharge |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 48Gbps |
| Switching Capability | 96Gbps |
| Forwarding Rate | 71.424Mpps |
| Packet Buffer | 12Mb |
| Network Latency | <4µs |
| Switching | • 16K MAC addresses, including static, dynamic and filtering MAC address • 16 VLAN virtual interface with 9216 MTU • 1K ARP/NDP • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, Mac-based VLAN, protocol-based VLAN • Private VLAN • VOICE VLAN including auto voice VLAN, tagged OUI, and untagged OUI • GVRP(pending) • 32 link aggregation groups • ERPS(pending) Spanning tree, 32 instances for STP/RSTP/MSTP/PVST(+)/RPVST(+) |
| Routing | • 512 (IPv4)/128(IPv6) routes • 32(IPv4)/32(IPv6) static routing • Policy routing (pending) • Dynamic routing, including RIP, RIPng, OSPF, OSPFv3, and BGP • Routing Policy • VRRP(pending) |
| Multicast | • IGMP Snooping with IGMPv2 and IGMPv3, 256 IGMP Snooping groups • MLD Snooping with MLDv1 and MLDv2, 256 MLD Snooping groups • MVR |
| QoS/ACL | • Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit 2K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | DHCP server, DHCP relay, Option 82, 60, 160 and 43 |
| Maintenance | • CPU and memory monitoring • Fault detection and alarm for power supply and fan • SNMP including SNMPv1, SNMPv2c, SNMPv3 • RMON • LLDP&LLDP-MED • Backup and restore • Syslog • Diagnostics including Ping, Traceroute, Mirroring including SPAN and RSPAN, UDLD(TBD)and copper test • Upgrade via FTPS / TFTP / HTTP / HTTPS or local upload, mass provisioning using DHCP Option/ TR-069(pending) / GDMS Networking / GWN Manager / GWN router |
| Security | • User hierarchical management and password protection, HTTPS, SSH, Telnet • Identity authentication including 802.1X and MAC authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP/IPv6 source guard, DoS attack prevention, ARP inspection • DHCP/DHCPv6 Snooping • Loop protection including BPDU protection, root protection and loopback protection • Kensington Security Slot (Kensington Lock) support |
| Mounting | Desktop, Wall-Mount or Rack-Mount(rack-mounting kits included) |
| System LEDs | 1x tri-color LED for device tracking and status indication |
| Power Supply LEDs | 2x bi-color LEDs for per power supply PWR&RPS |
| Data Transferring LEDs | 12x green-color LEDs |
| Environmental | Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing) |
| Dimensions | 330mm x 175mm x 44mm |
| Unit Weight | 1.91Kg |
| Package Content | 1x Switch 1x 1.2m(10A) AC Cable 1x 25cm Ground Cable 4x Rubber Footpads 1x Power Cord Anti-Trip 2x Extended Rack-Mounting Kits 8x Screws(KM 3*6) 1x Simplified Quick Installation Guide 1x Regulatory Paper |
| Compliance | FCC, CE, RCM, IC, UKCA |
