Cost-Performance Solution
• Lifetime Free Cloud without Additional Fees
• Manage and Maintain from Anywhere

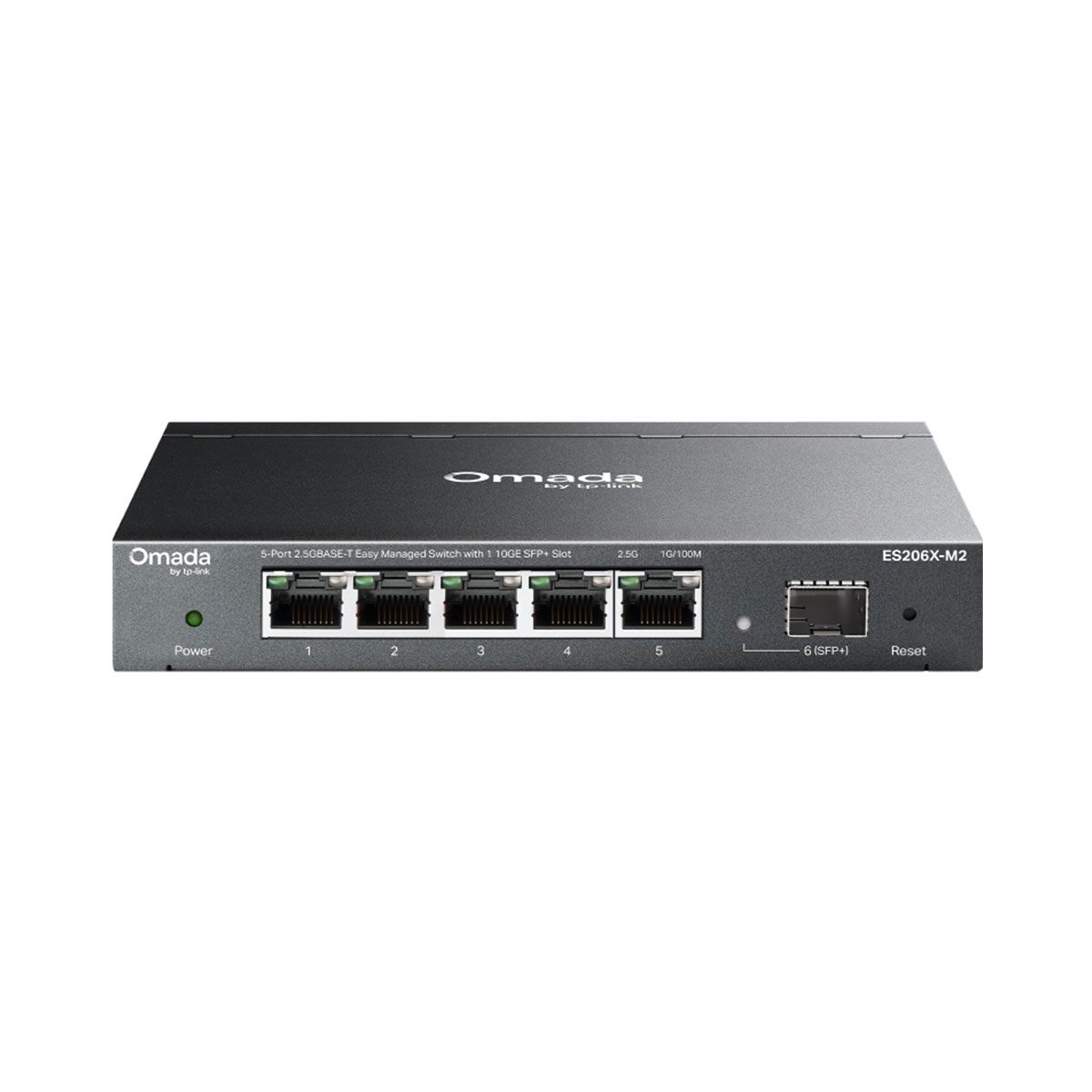

TP-LINK ES206X-M2 V1 Omada 5-PORT 2.5G Base-T Easy Managed Switch with 1 X 10G SFP+ Slots
Κωδικός προϊόντος:
ES206X-M2
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
| • 5× 2.5 Gbps RJ45 Ports • 1× 10 Gbps SFP+ Slot • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features • Centralized Cloud Management via the web or the Omada app† • Automatic Loop Prevention, VLAN, and IGMP Snooping • Fanless design for silent operation • Durable metal casing and desktop/wall mounting design |
Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use cloud centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for small businesses and home office.

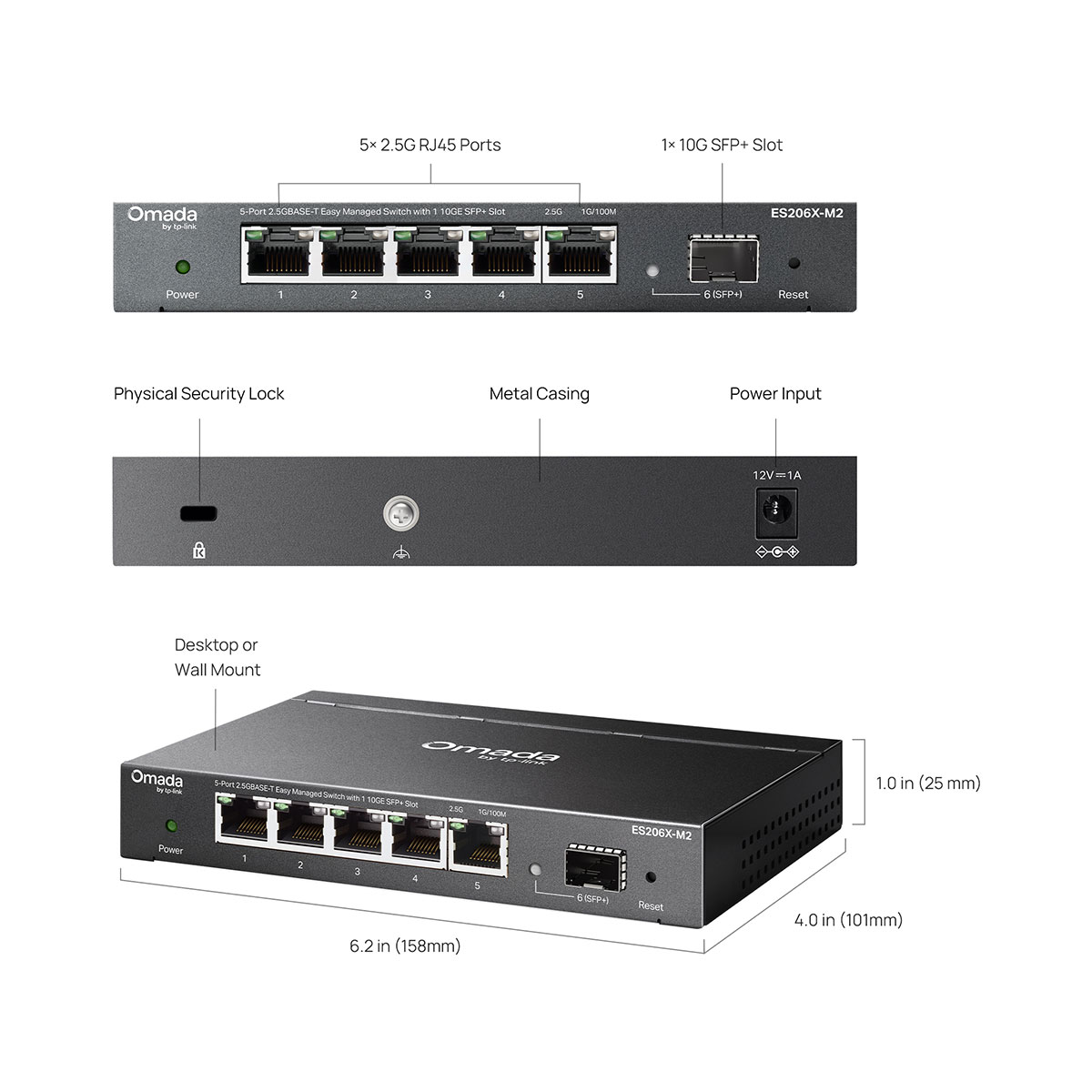

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
△Port-based/802.1p/DSCP QoS are supported under Standalone Mode.
Χαρακτηριστικά
| HARDWARE FEATURES | |
| Interface | 5× 100 Mbps/1Gbps/2.5Gbps RJ45 Ports 1× 10 Gbps SFP+ Slot |
| Flash | 64 Mbit |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3u:100BASE-X Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3bz: 2.5GBASE-T Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber) IEEE 802.3ae:10GBASE-SR/LR 10G Ethernet (Optical fiber) IEEE 802.3aq:10GBASE-LRM 10G Ethernet (Optical fiber) IEEE 802.3x: Flow Control IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks IEEE 802.1ab: Station and Media Access Control Connectivity Discovery (LLDP) |
| PERFORMANCE | |
| Switching Capacity | 45 Gbps |
| Packet Forwarding Rate | 33.48 Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 640 KB |
| Transmission Method | Store and Forward |
| Jumbo Frame | 10 KB |
| PHYSICAL & ENVIRONMENT | |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 12VDC / 1A) |
| Standby Power Consumption | 1.62 W (110V/60Hz) |
| Max Power Consumption | 5.63 W (110V/60Hz) |
| Max Heat Dissipation |
19.21 BTU/hr (110V/60Hz) |
| MTBF | 1223587 h @ 25°C |
| Dimensions (W x D x H) |
158 × 100.7 × 25.4 mm |
| Net Weight | 0.52 kg |
| Fan Quantity | Fanless |
| Installation | Desktop / Wall Mounting |
| Operating Temperature | -5 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Surge Protection | ±6 kV in common mode for Ethernet ports 2 kV in differential mode for DC power input port |
| ESD Protection | Air: ±8 kV, Contact: ±4 kV |
| Certification | CE, FCC, RoHS |
