Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
ΠΡΟΣΟΧΗ!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!

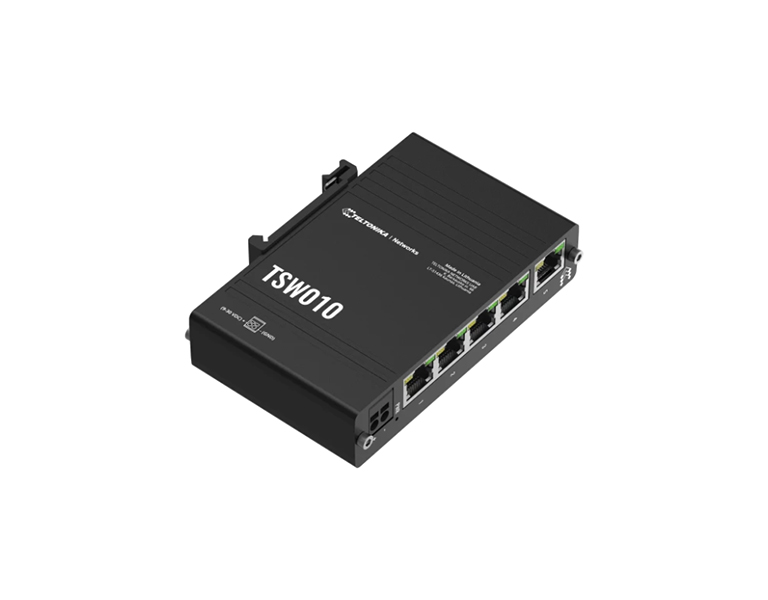

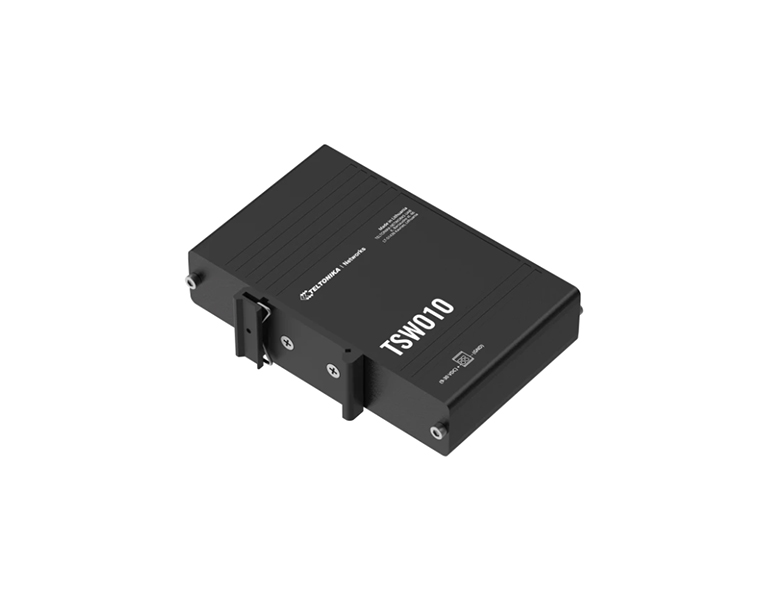

TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.
Χαρακτηριστικά
| Specifications | |
| Hardware | |
| Power supply | 2-pin industrial DC power socket, 9 - 30 VDC |
| Power consumption | Idle: 0.3 W / Max: 0.9 W |

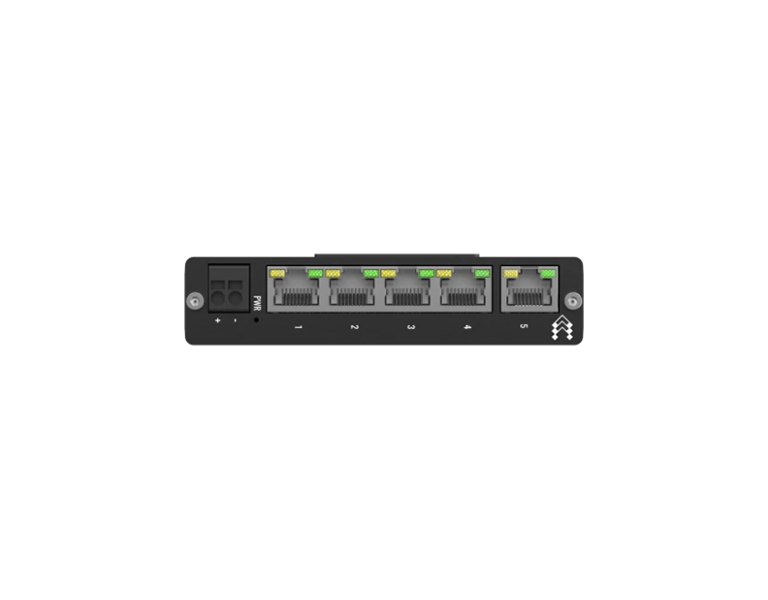

| Ethernet | 5 x RJ45 ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az, IEEE802.3x (Flow control) standards, supports auto MDI/MDIX crossover, Auto-Negotiation function |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDs |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Housing | Anodized aluminum housing and panels |
| Dimensions | 113.1 x 27.4 x 80.5 mm |
| Weight | 146.5 g |

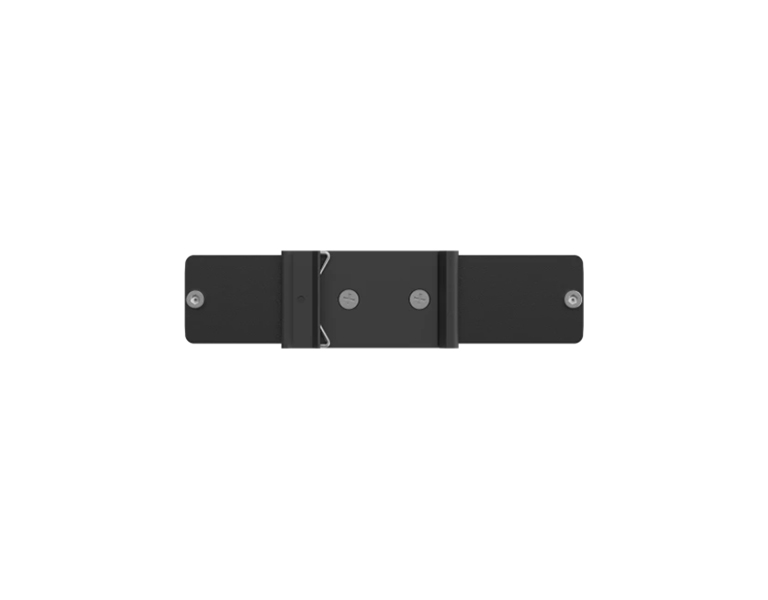

| Installation | Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement |
| Performance | |
| Bandwidth (Non-blocking) | 1 Gbps |
| MAC address table size | 2K entries |
| Jumbo frame support | 2048 bytes |
| Switch Processing Scheme | Store-and-Forward |
