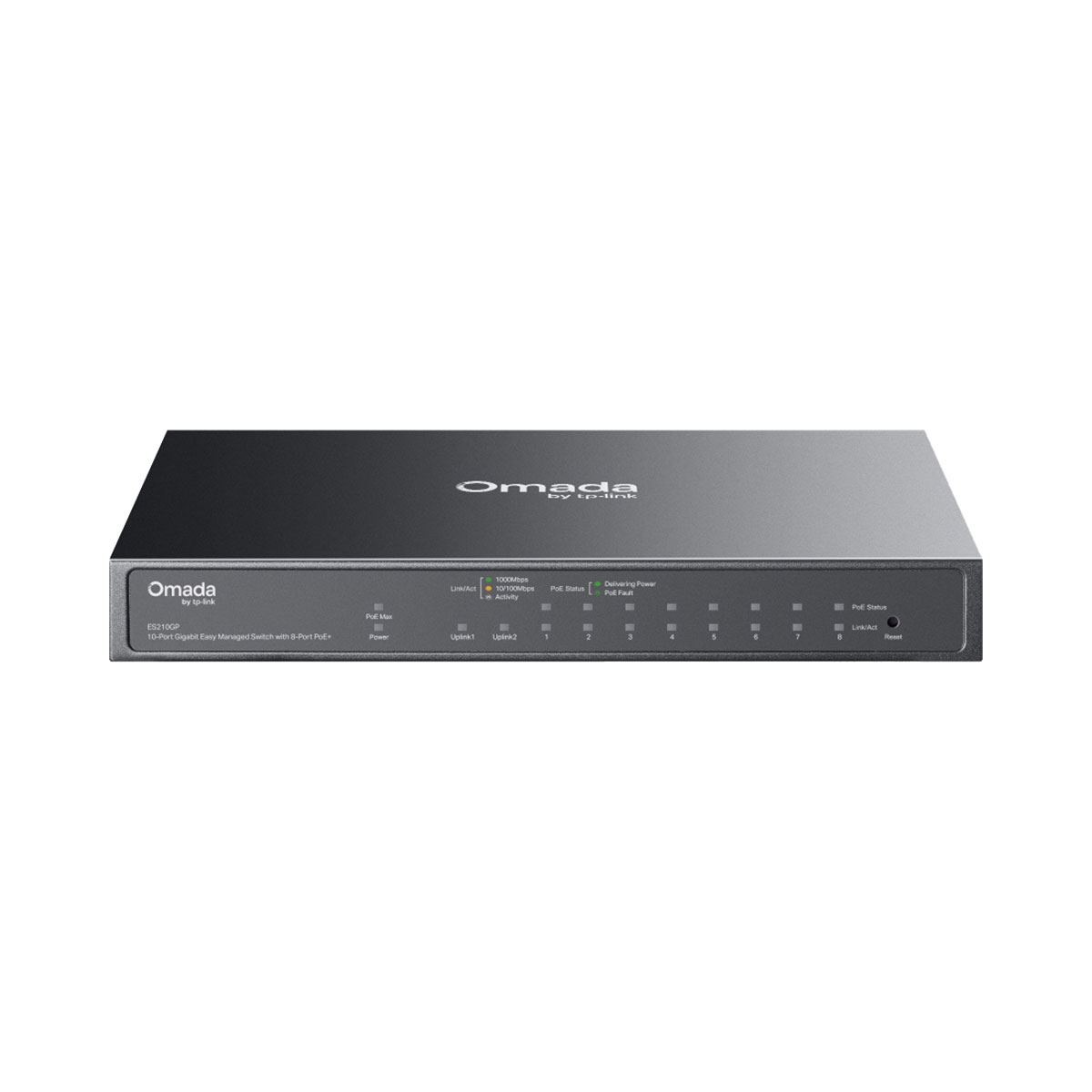

TP-LINK ES210GP V1, Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

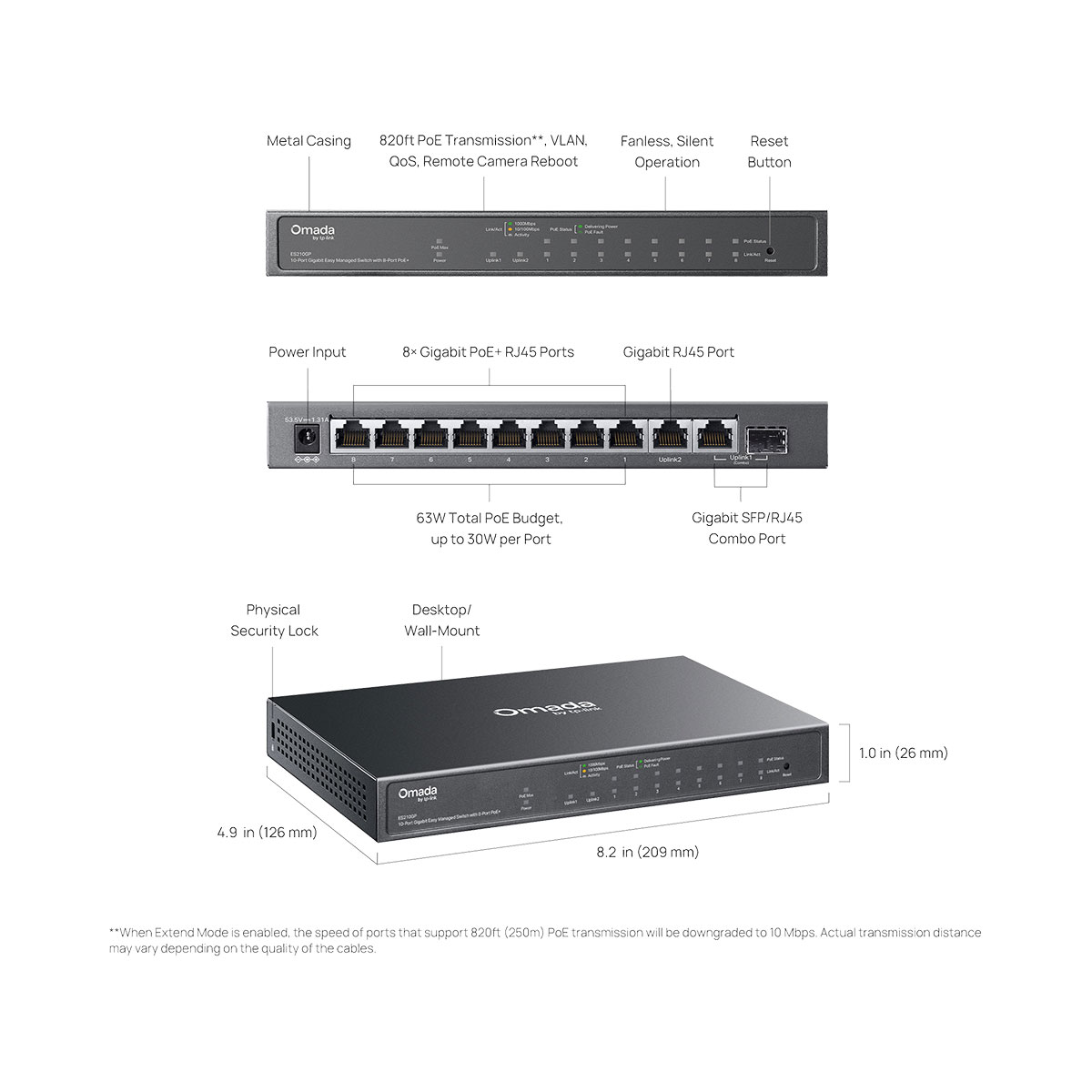

| • 9× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+) • 1× Gigabit SFP/RJ45 Combo port • 63W Power Budget, with up to 30W for each PoE port* • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features • Centralized Cloud Management via the web or the Omada app† • Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking • Automatic Loop Prevention, VLAN, and IGMP Snooping • Fanless design for silent operation • Durable metal casing and desktop/wall mounting design |
Omada Central Essentials — A Free and Easy Cloud-Based Network Management
Omada Central Essentials is a free, easy-to-use version of the Omada Central. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Abundant Functions for Reliable Surveillance Networking
• Transmission Distance up to 820ft (250m)**
• Priority Video Quality Guaranteed
• Secure Traffic Separation via Port Isolation
• Remote Camera Reboot†
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**When Extend Mode is enabled, the speed of ports that support 820ft (250m) PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
△Omada Central can manage third-party cameras that support ONVIF Profile S, but they must be connected through a VIGI NVR.
| General | |
| Interface | 8× 10/100/1000 Mbps PoE+ RJ45 Ports 1× 10/100/1000 Mbps RJ45 Port 1× Gigabit SFP/RJ45 Combo Port |
| Flash | 64 Mbit |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol; IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber); IEEE 802.3x: Flow Control IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks |
| PoE | |
| PoE Standard | 802.3af/at |
| PoE Ports | 8, up to 30 W per port |
| PoE Power Budge | 63 W* |
| Performance | |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Switch Capacity | 20 Gbps |
| MAC Address Table | 4K, Auto-learning, Auto-aging |
| Packet Buffer | 4 Mbit |
| Transmission Method | Store and Forward |
| Jumbo Frame | 15 KB |
| Physical & Environment | |
| Power Supply | 53.5 VDC / 1.31 A |
| Max Power Consumption | 69.01 W (220 V/50 Hz) ( with 63 W PD connected @ 25 °C) 69.38 W (110 V/60 Hz) ( with 63 W PD connected @ 25 °C) |
| Max Heat Dissipation | 235.32 BTU/hr (220 V/50 Hz) ( with 63 W PD connected @ 25 °C) 236.59 BTU/hr (110 V/60 Hz) ( with 63 W PD connected @ 25 °C) |
| Standby Power Consumption | 3.53 W (220 V/50 Hz @ 25 °C) 3.58 W (110 V/60 Hz @ 25 °C) |
| Noise | 14.8 dBA max @ 1cm |
| Surge Protection | Service port: ±6 kV; Power port: ±2 kV |
| ESD Protection | Air: ±8 kV, Contact: ±4 kV |
| MTBF | 335,515 h @ 25 °C 242,289 h @ 40 °C |
| Dimensions (W x D x H) |
209×126×26 mm |
| Fan Quantity | Fanless |
| Installation | Desktop/Wall-Mounting |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, FCC, RoHS |
