Alta Labs S8 PoE Switch

Κωδικός προϊόντος:
Κατασκευαστής Alta Labs
Τιμή πώλησης: 180,00 €(Περιλαμβάνει 24% ΦΠΑ)
Τιμή χωρίς ΦΠΑ: 145,16 €

Κόστος Μεταφορικών:
  • Περιγραφή
  • Χαρακτηριστικά
  • Λήψεις
  • Γνώμες πελατών

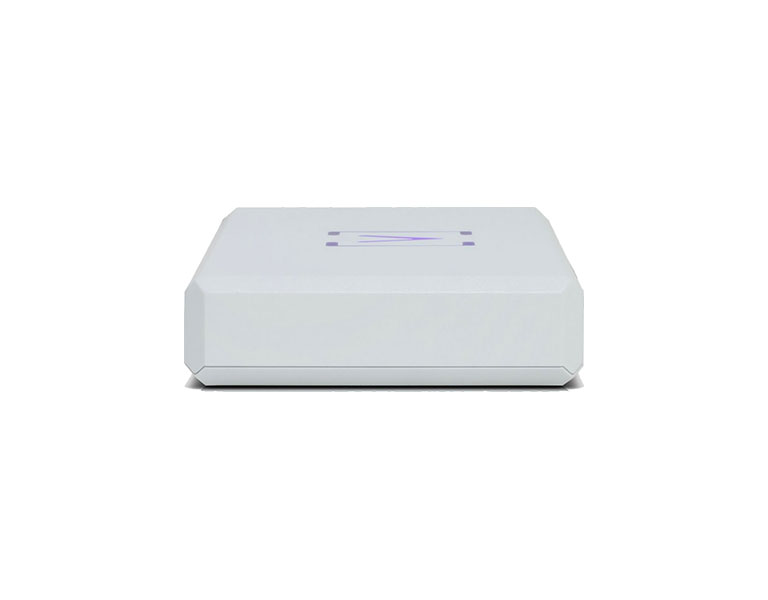

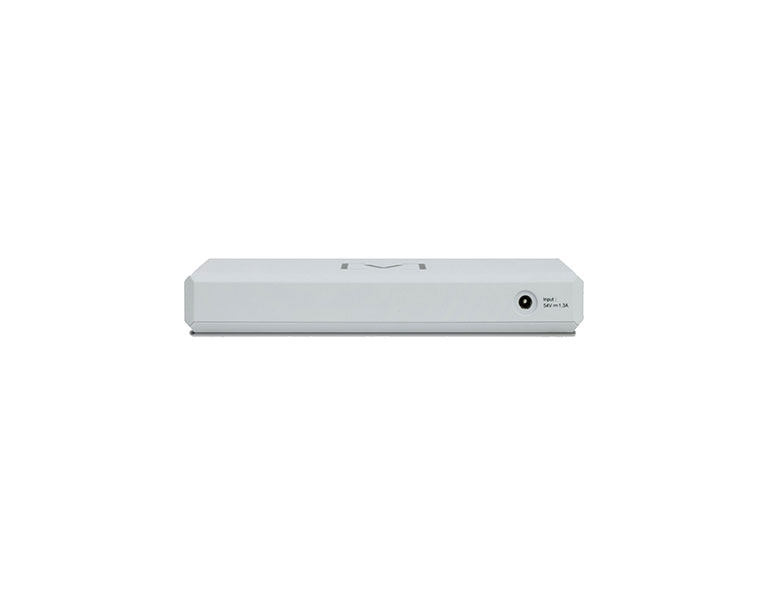

Alta Labs S8 PoE Switch

The S8-PoE is a compact switch with eight 10/100/1000 ports, four of which support PoE+. It can be placed on a desktop or mounted on a wall. All of the Alta Labs switches include Bluetooth functionality for seamless device setup

Power Over Ethernet
The Alta Labs switches feature PoE+ connectivity with a number of ports capable of providing up to 30 Watts of power per port. The switches support the 802.3at PoE+ standard and are backwards compatible with the 802.3af PoE standard. The S8‑PoE offers four PoE+ ports with a PoE budget of 60 Watts. The S16-PoE offers eight PoE+ ports with a PoE budget of up to 120 Watts. The S24‑PoE offers sixteen PoE+ ports with a PoE budget of up to 240 Watts. Power your Alta Labs Access Points and other devices that support 802.3at or 802.3af standards.

Bluetooth Setup
The Alta Labs switches include Bluetooth functionality allowing for seamless setup using the Alta Labs mobile app.

Mobile App
Monitor and manage your networks from the convenience of your mobile device. The management interface is easily accessible via mobile app or web browser. Sign up for an Alta Labs account using just your name, email, and password or sign in using your Google or Apple account.

SFP/SFP+ High Performance Connectivity
The S24‑PoE switch provides two SFP+ ports for high‑capacity fiber or copper connections of 1 Gbps, 2.5 Gbps, 5 Gbps, or 10 Gbps. The S16‑PoE switch provides two SFP ports for fiber or copper connections up to 1 Gbps.

Scalable Cloud-Based Management
Alta Labs provides an intuitive and easy-to-use cloud‑based management interface for Alta Labs access points and switches. Designed for optimum scalability using a high-availability architecture for the ultimate in convenience and worldwide accessibility. Built on a worldwide content delivery network to optimize response and latency, our global cloud infrastructure ensures geographically optimized connectivity through our redundant network. Deploy and manage multiple sites quickly and easily. Add, delete, or rename sites instantly. Toggle between sites from a site selection drop‑down. Each site contains its own data set.

• Power Over Ethernet
• SFP/SFP+ High Performance Connectivity
• Bluetooth Setup
• Mobile App
• Scalable Cloud-Based Management
• VLAN Stacking
• Egress and Ingress Rate Limiting
• IGMP Snooping
• 802.1X Authentication*
• Network Loop Detection*
• Customizable Dashboard
• Status Snapshots
• Device Cards
• Site Manager
• Mounting Flexibility
• More Features to Come with Automatic Firmware Updates

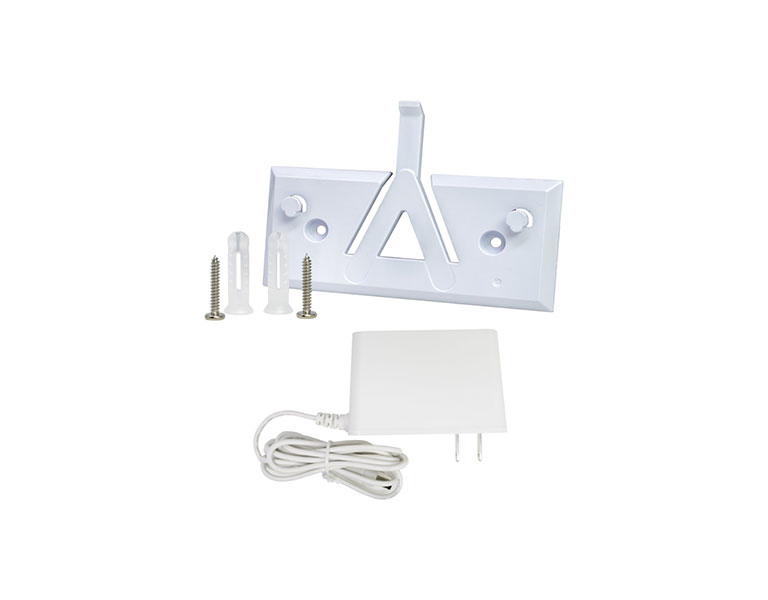

Package contents
• Power adapter 54V / 1.3A
• Plastic wall mount
• Screws and dowels

Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων: Επισκευή - Αντικατάσταση:
20 ημέρες 24 μήνες
Dimensions 25.7 x 91 x 180 mm
Weight 0.380 kg
Material Type Injection Molded Plastic
Material Finish Matte
Color White
Interface ports (8) 10/100/1000 Mbps
Switching Capacity 16 Gbps
Non-blocking Throughput 8 Gbps
Forwarding Rate 11.9 Gbps
PoE Budget/Max 60 Watts
PoE Supply 30 Watts per port
Per Port PoE (4) 802.3at PoE+
Non-PoE Ports 4
PoE Orange
Network Orange: 10/100 Mbps, Blue: 1000Mbps
Packet Buffer 4.1 Mbit
Mac Table Size 8 K
Energy Efficient Ethernet Yes
Management Factory reset button
Bluetooth Yes, Setup
Max Power Consumption w/o PoE 8 Watts
Max Power Consumption Full PoE 68 Watts
Output PoE+, 54VDC, 0.6A Max
Power Supply Universal AC, 100 - 240VAC 50-60Hz External
RJ45 Port Surge Protection 12kV for ESD - contact, 25kV for ESD - Air
Mounting Locking Wallmount
Operating Temperature -5 to 50° C
Operating Humidity 10 to 90% Noncondensing
EMI Rating EMI Class-B with 3dB margin
Cooling Fan No (Fanless cooling)
Certifications CE, FCC, IC
