Alta Labs AP6 WIFI6 Access Point
ΠΡΟΣΟΧΗ Η ΣΥΣΚΕΥΑΣΙΑ ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΤΡΟΦΟΔΟΤΙΚΟ POE

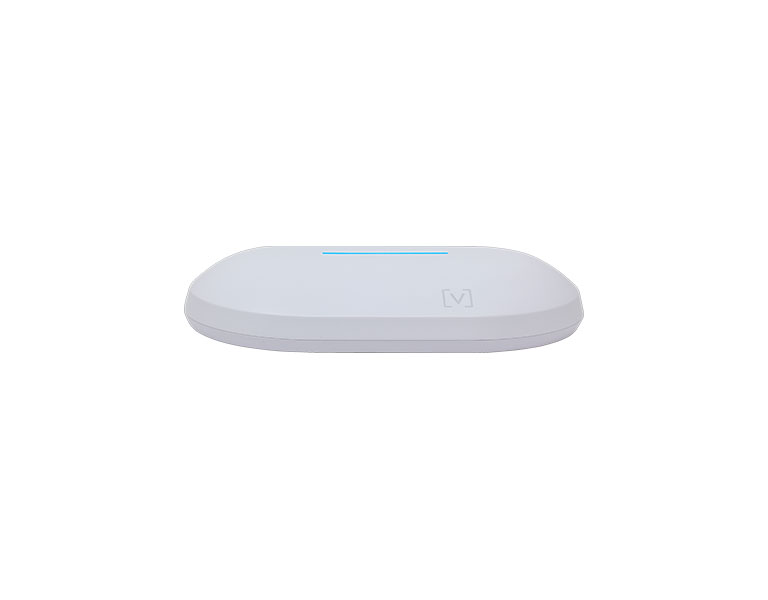

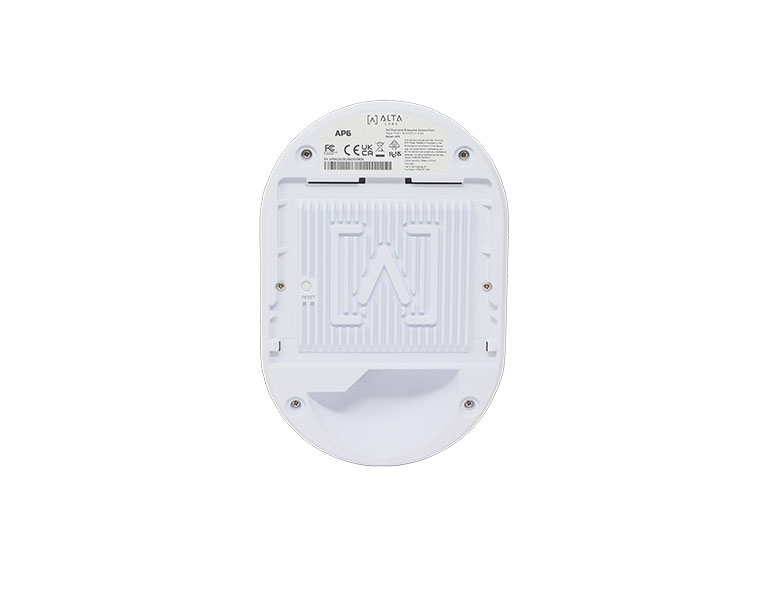

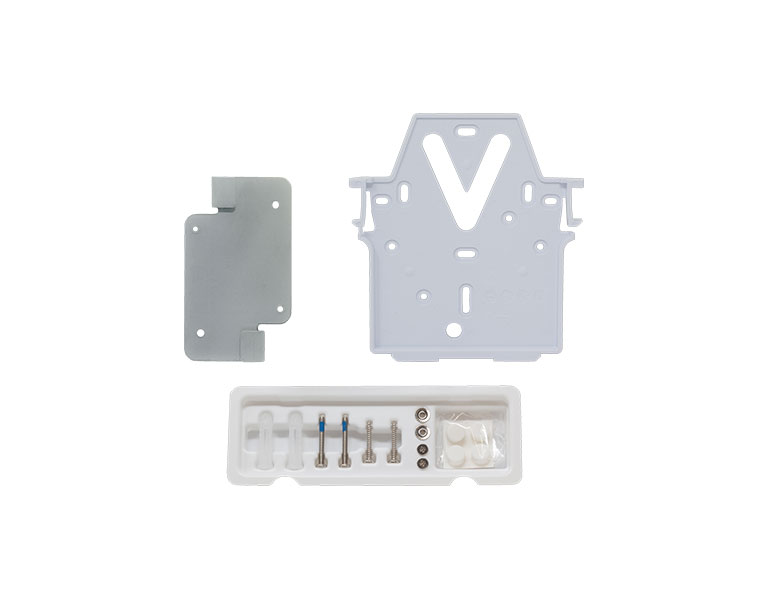

The Alta Labs AP6 Access Point features a compact form factor and a sleek aesthetic design allowing seamless integration into corporate, commercial, and residential environments. The AP is powered over Ethernet for simple, clean installation. Versatile mounting hardware is included featuring our proprietary QuickMount™ technology for quick, simple mounting.
Their proprietary antenna design provides superior range and performance. Engineered by a team with extensive WiFi design expertise, the AP6 provides seamless roaming and advanced traffic management to ensure a superior WiFi experience.
Features:
• Superior Range and Performance
• Scalable Cloud-Based Management
• Mobile App
• High Performance WiFi 6
• Multi-Password Authentication
• DPI Engine
• Hotspot Functionality
• On-The-Fly Changes and Scanning
• Wireless Network Color Coding
• SSID Broadcasting Flexibility
• Customizable Dashboard
• Status Snapshots
• Device Cards
Scalable Cloud-Based Management
Alta Labs provides an intuitive and easy-to-use cloud-based management interface for Alta Labs access points and switches. Designed for optimum scalability using a high-availability architecture for the ultimate in convenience and worldwide accessibility. Built on a worldwide content delivery network to optimize response and latency, our global cloud infrastructure ensures geographically optimized connectivity through our redundant network. Deploy and manage multiple sites quickly and easily. Add, delete, or rename sites instantly. Toggle between sites from a site selection drop-down. Each site contains its own data set.
High Performance WiFi 6
Built on Qualcomm's dual-band, 4-stream WiFi 6 networking platform, the AP6 delivers optimal 2.4 GHz and 5 GHz WiFi 6 performance.
Multi-Password Authentication
Use different WiFi passwords to separate network traffic and manage connectivity.
• Standard Network with less than 100 WiFi clients
• Large Optimized for hundreds to thousands of WiFi clients
• IoT Restricted to Internet and local incoming connections only
• Internet Restricted to Internet only
• Guest Restricted to Internet and IoT devices A password can also be associated with a specific upload or download rate, a VLAN, or to bypass schedule or hotspot functionality.
| Specifications | |
| Mechanical | |
| Dimensions | 190 x 125 x 32 mm |
| Weight | 0.4 kg |
| Enclosure Material | Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum |
| Mount Material | Ceiling/Wall: Polycarbonate, Drop Ceiling: Steel |
| Weatherproofing | No |
| Hardware | |
| Network Interface | Ethernet, WiFi, Bluetooth |
| Management Interface | (1) GbE RJ45 Port |
| Button(s) | Reset/Factory Reset |
| LED | Blue, White |
| Power Method | PoE+ |
| Power Supply | PoE+ Enabled Network Switch or 48V, 0.5A PoE Adapter (Optional) |
| Supported Voltage Range | 42.5-57V DC |
| Max. Power Consumption | 20W |
| Max. Transmit Power | 2.4 GHz: 23 dBm @2NSS, 5 GHz: 23 dBm @2NSS |
| MIMO | 2.4 GHz: 2 x 2, 5 GHz: 2 x 2 |
| Throughput Rate | 2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 2.4 Gbps |
| Antenna Gain | 2.4 GHz: Up to 4.0 dBi, 5 GHz: Up to 4.1 dBi |
| Mounting | Wall, ceiling, drop-ceiling, table top |
| Operating Temperature | -30 to 60° C |
| Operating Humidity | 5 to 95% Non condensing |
| Certifications | CE, FCC, IC (Visit Alta.inc for a full list of certifications) |
| Software | |
| Wi-Fi Standards | 801.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6) |
| Roaming | 802.11r/k/v |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA2/WPA3) |
| Multi-BSSID | Supported |
| VLAN | 802.1Q |
| Advanced QoS | 802.11e |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
| Zero Wait DFS | Yes |
| Intelligent WiFi Scheduling | Yes |
| Hotspot Functionality | Yes |
| Scalable | Yes |
| Seamless Per-Client Settings | VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception |
| Supported Data Rates | |
| 802.11a/g | 6 Mbps to 54 Mbps |
| 802.11b | 1 Mbps to 11 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (Up to MCS 15) |
| 802.11ac | 6.5 Mbps to 1.9 Gbps (Up to MCS 9) |
| 802.11ax | 2.4 GHz: Up to 573 Mbps, 5 GHz: 6.5 Mbps to 2.4 Gbps (Up to MCS 11) |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
