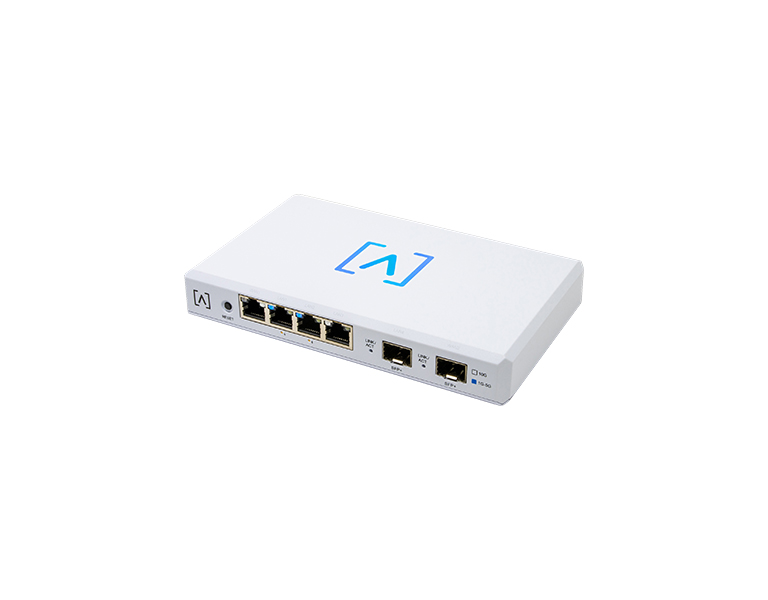

Alta Labs ROUTE 10, Router with 10 Gbps
| • Four 2.5 Gbps RJ45 Ports • Two Hardware-Accelerated 10 Gbps SFP+ Ports • Power over Ethernet • Quad-Core Qualcomm Network Accelerator • Bluetooth Setup • Static IP, DHCP and PPPoE WAN Support • VLAN and QoS Tagging on WAN Support • Multiple VLAN and Subnet Support • DNS Repeater • Firewall Configuration • NAT Configuration (Source and Destination, Port forwarding) • UPnP Support |
High Performance Connectivity
Designed for maximum performance, Route10 includes four autosensing Ethernet ports that support up to 2.5 Gbps Ethernet connections (10/100/1000/2500 Mbps). Route10 also provides two SFP+ ports for high-capacity fiber or copper connections of 1 Gbps, 2.5 Gbps, 5 Gbps, or 10 Gbps.
Power Over Ethernet
Route10 features PoE+ connectivity on ports 2 & 3. The router supports the 802.3at PoE+ standard and is backwards compatible with the 802.3af PoE standard. Power your Alta Labs Access Points and other devices that support 802.3at or 802.3af standards.
Bluetooth Setup
Bluetooth functionality is built into the Alta Labs Route10 router allowing for seamless setup using the Alta Networks mobile app.
Mobile App Support
Monitor and manage your networks from the convenience of your mobile device. The management interface is easily accessible via mobile app or web browser. Sign up for an Alta Labs account using just your name, email, and password or sign in using your Google or Apple account.
Assignable Multi-WAN
• Ethernet and SFP+
• Assignable Multi-WAN
• All Ports Can Be Configured
Native VPN Support
• Home network access worldwide
• Stream subscriptions as if home
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Mechanical | |
| Dimensions | 180 x 110 x 29.8 mm |
| Weight | 0.46 kg |
| Enclosure materials | Top cover: polycarbonate Bottom cover: milled aluminum |
| Mount material | Injection Molded Plastic |
| Material Finish | Matte |
| Color | White |
| Ports | |
| Network Interface | Ethernet, Bluetooth |
| Management Interface | (4) Autosensing 2500/1000/100/10 Mbps RJ45 Ports, (2) 10 Gbps/1.25 Gbps SFP+ Ports |
| Data Rate | 37.5 Million Packets per second |
| LEDs | |
| PoE | Amber |
| RJ45 | Amber (Left LED): 10/100 Mbps Blue (Left LED): 1 Gbps White (Right LED): 2.5 Gbps |
| SFP+ | Blue: < 10 Gbps White: 10 Gbps |
| Status | RGB/Multi-Color |
| Hardware | |
| Processor | Quad-core Qualcomm 2.2 GHz |
| Button | Reset/Factory Reset |
| Power | |
| Power Supply | Universal AC, 100 - 240VAC 50-60Hz External |
| Maximum Input Power Consumption | 70W |
| Idle Power Consumption | 5W with no connections 9W with all ports connected |
| POE Budget | 40W |
| Per-Port PoE | (2) 802.3at POE+, PoE+ (54VDC, 0.6A Max) |
| PoE Ports | 2 |
| Bluetooth Version | BLE |
| Total Bluetooth Power | 5 dBm EIRP |
| Bluetooth Gain | 3 dBi |
| MAC Table Size | 4k |
| Environmental | |

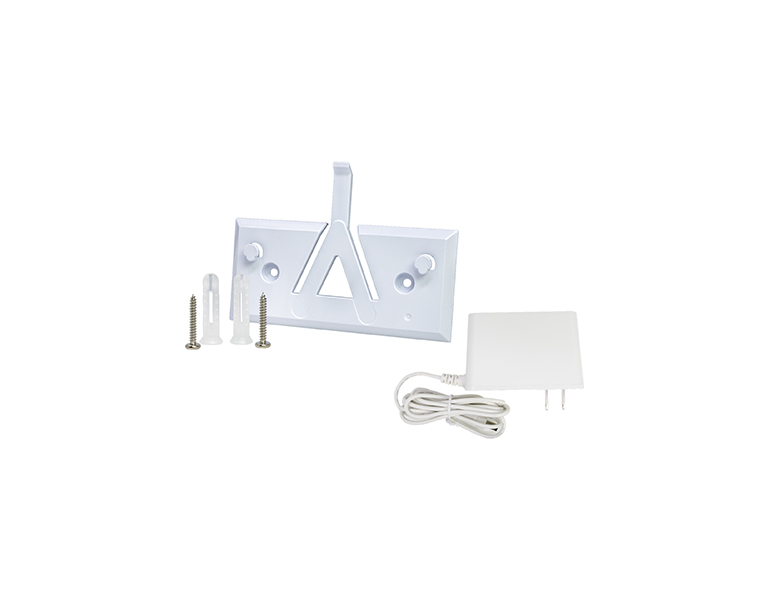

| Mounting | Locking Wallmount, Desktop |
| Operating Temperature | -5 to 50° C With (1) 2W SFP+ Module: 45° C With (2) 2W SFP+ Modules: 40° C |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| RJ45 Port Surge Protection | 12kV for ESD - Contact, 25kV for ESD - Air |
| Software | |
| VLAN | 802.1Q |
| Easily Scale from Home to SMB to Stadium | Yes |
| Seamless Per-Client Settings | Yes |
| VPN Server | Yes, Multiple, Hardware-Accelerated |
| Actual Total Throughput | 25 Gbps Combined Upload/Download |
| RADIUS Authentication | Yes |
| Deep-Packet Inspection | Yes |
| Intrusion Detection and Prevention Systems | Yes, at 10 Gbps |
| WAN Failover and Load-Balancing | Yes |
