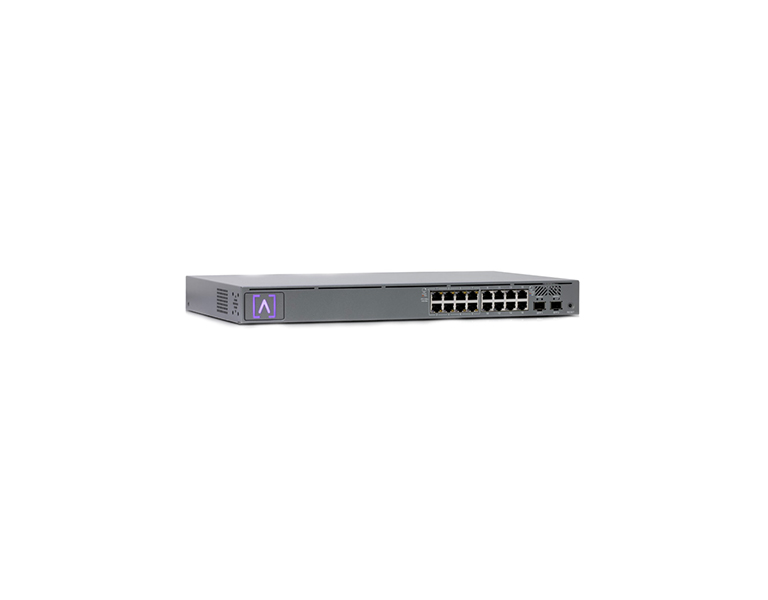

Alta Labs S16-POE, 16 Port PoE Switch
The S16‑PoE is a rackmountable switch with sixteen 10/100/1000 ports, eight of which support PoE+. The S16‑PoE includes two SFP ports.
Power Over Ethernet
The Alta Labs switches feature PoE+ connectivity with a number of ports capable of providing up to 30 Watts of power per port. The switches support the 802.3at PoE+ standard and are backwards compatible with the 802.3af PoE standard. The S16-PoE offers eight PoE+ ports with a PoE budget of up to 120 Watts. Power your Alta Labs Access Points and other devices that support 802.3at or 802.3af standards.
Bluetooth Setup
The Alta Labs switches include Bluetooth functionality allowing for seamless setup using the Alta Labs mobile app.
Mobile App
Monitor and manage your networks from the convenience of your mobile device. The management interface is easily accessible via mobile app or web browser. Sign up for an Alta Labs account using just your name, email, and password or sign in using your Google or Apple account.
SFP/SFP+ High Performance Connectivity
The S16‑PoE switch provides two SFP ports for fiber or copper connections up to 1 Gbps.
Scalable Cloud-Based Management
Alta Labs provides an intuitive and easy-to-use cloud‑based management interface for Alta Labs access points and switches. Designed for optimum scalability using a high-availability architecture for the ultimate in convenience and worldwide accessibility. Built on a worldwide content delivery network to optimize response and latency, our global cloud infrastructure ensures geographically optimized connectivity through our redundant network. Deploy and manage multiple sites quickly and easily. Add, delete, or rename sites instantly. Toggle between sites from a site selection drop‑down. Each site contains its own data set.
Features:
• Power Over Ethernet
• SFP/SFP+ High Performance Connectivity
• Bluetooth Setup
• Mobile App
• Scalable Cloud-Based Management
• VLAN Stacking
• Egress and Ingress Rate Limiting
• IGMP Snooping
• 802.1X Authentication*
• Network Loop Detection*
• Customizable Dashboard
• Status Snapshots
• Device Cards
• Site Manager
• Mounting Flexibility
• More Features to Come with Automatic Firmware Updates
| Specifications | |
| Mechanical | |
| Dimensions | 44 x 254 x 441.5 mm |
| Weight | 3.6 kg |
| Material Type | SGCC |
| Material Finish | Powder coat - Matte |
| Color | Metallic gray |
| Ports | |
| Interface ports | (16) 10/100/1000 Mbps |
| SFP/SFP+ | (2) SFP |
| Switching Capacity | 36 Gbps |
| Non-blocking Throughput | 18 Gbps |
| Forwarding Rate | 26.8 Gbps |
| PoE Budget/Max | 120 Watts |
| PoE Supply | 30 Watts per port |
| Per Port PoE | (8) 802.3at PoE+ |
| Non-PoE Ports | (10) |
| Leds | |
| PoE | Orange |
| Network | Orange: 10/100 Mbps, Blue: 1000Mbps |
| SFP | Blue: Link/Activity (1000 Mbps) |
| Hardware | |
| Packet Buffer | 4.1 Mbit |
| Mac Table Size | 8 K |
| Energy Efficient Ethernet | Yes |
| Management | Factory reset button |
| Band | 2.4 GHz |
| Bluetooth Version | BLE |
| Total Power | 7 dBm EIRP |
| Gain | 2 dBi |
| Power | |
| Max Power Consumption w/o PoE | 23 Watts |
| Max Power Consumption Full PoE | 143 Watts |
| Output | PoE+, 54VDC, 0.6A Max |
| Power Supply | Universal AC, 100 - 240VAC 50-60Hz Internal |
| RJ45 Port Surge Protection | 12kV for ESD - contact, 25kV for ESD - Air |
| Environmental | |
| Mounting | Rackmount, Wallmount |
| Operating Temperature | -5 to 50° C |
| Operating Humidity | 10 to 90% Noncondensing |
| EMI Rating | EMI Class-A with 3dB margin |
| Cooling Fan | No (Fanless cooling) |
| Certifications | CE, FCC, IC |
