Ubiquiti UP-VIEWPORT, HUB for Viewing Protect Camera Feeds on HDMI
Product Code:
UP-VIEWPORT
Description
Characteristics
Downloads
Description
The UniFi Protect ViewPort allows you to view your UniFi Protect camera feeds on an HDMI display. It uses Power over Ethernet and connects to the local network hosting your cameras and connects via HDMI to a display. The UniFi Protect ViewPort offers 4K video output at 30 frames per second. Protect systems can be viewed in custom high-density camera matrix configurations.
Features
- Display up to 16 IP cameras simultaneously
- View Unifi Protect cameras on an HDMI display
- Easy setup with UniFi Protect System
- Powered by 802.3af PoE
- HDMI video output up to 4K @ 30 fps

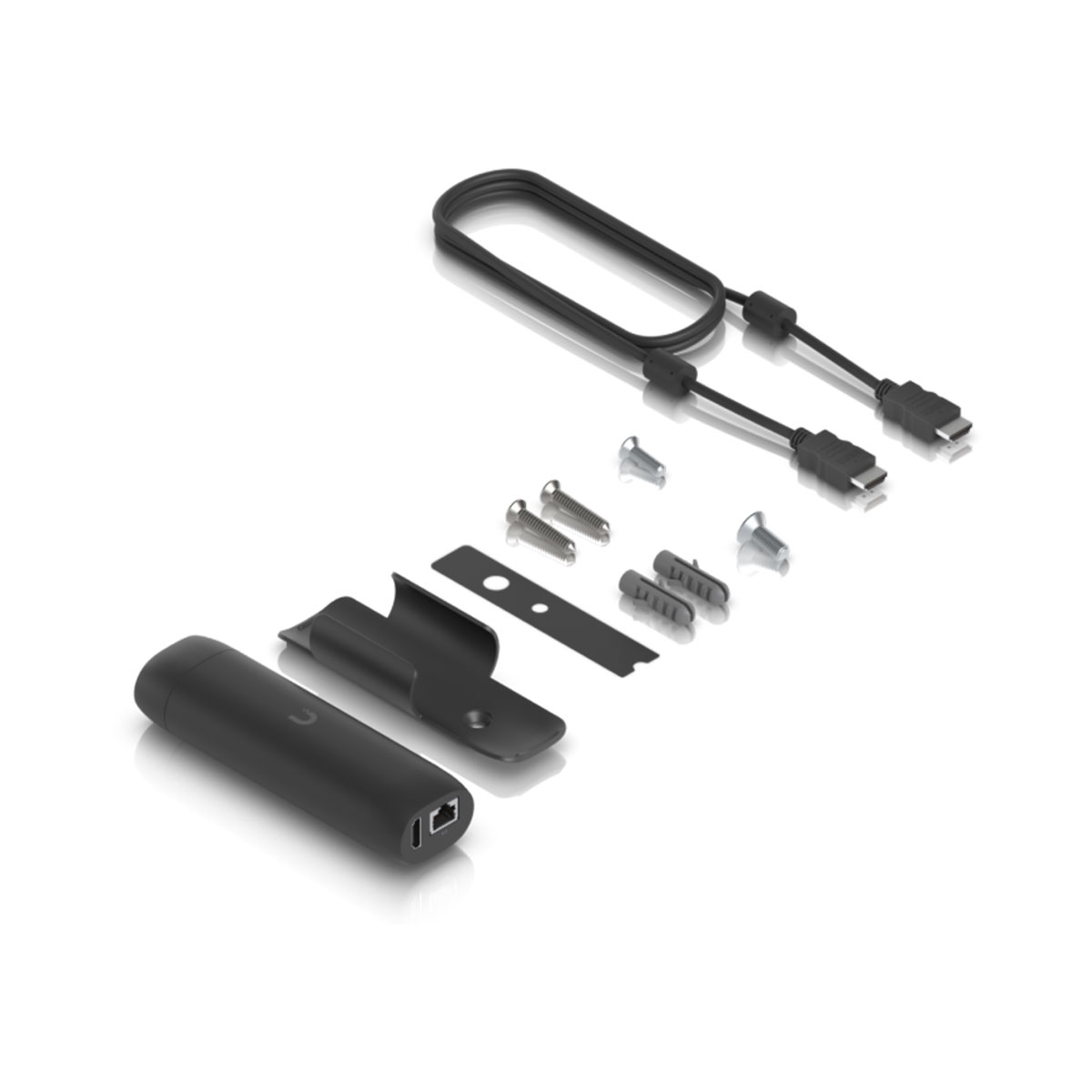

Package contains
- Device
- Plastic holder
- HDMI cable 1m
- Screws
Characteristics
| Specifications | |
| Mechanical | |
| Dimensions | 157 x 52 x 37 mm |
| Weight | Without mount: 230 g With TV mount: 252 g |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | PoE |
| Max. Power Consumption | 9.5W |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 40° C |
| Power Supply | 802.3af PoE |
| ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
| Operating Temperature | 0 to 40° C |
| Ambient Storage Temperature | 20 to 80% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE Anatel: 06681-25-08356 |
| Software | |
| Application Requirements | Web Application - UniFi Protect Mobile App - UniFi Protect iOS™ and Android™ |
