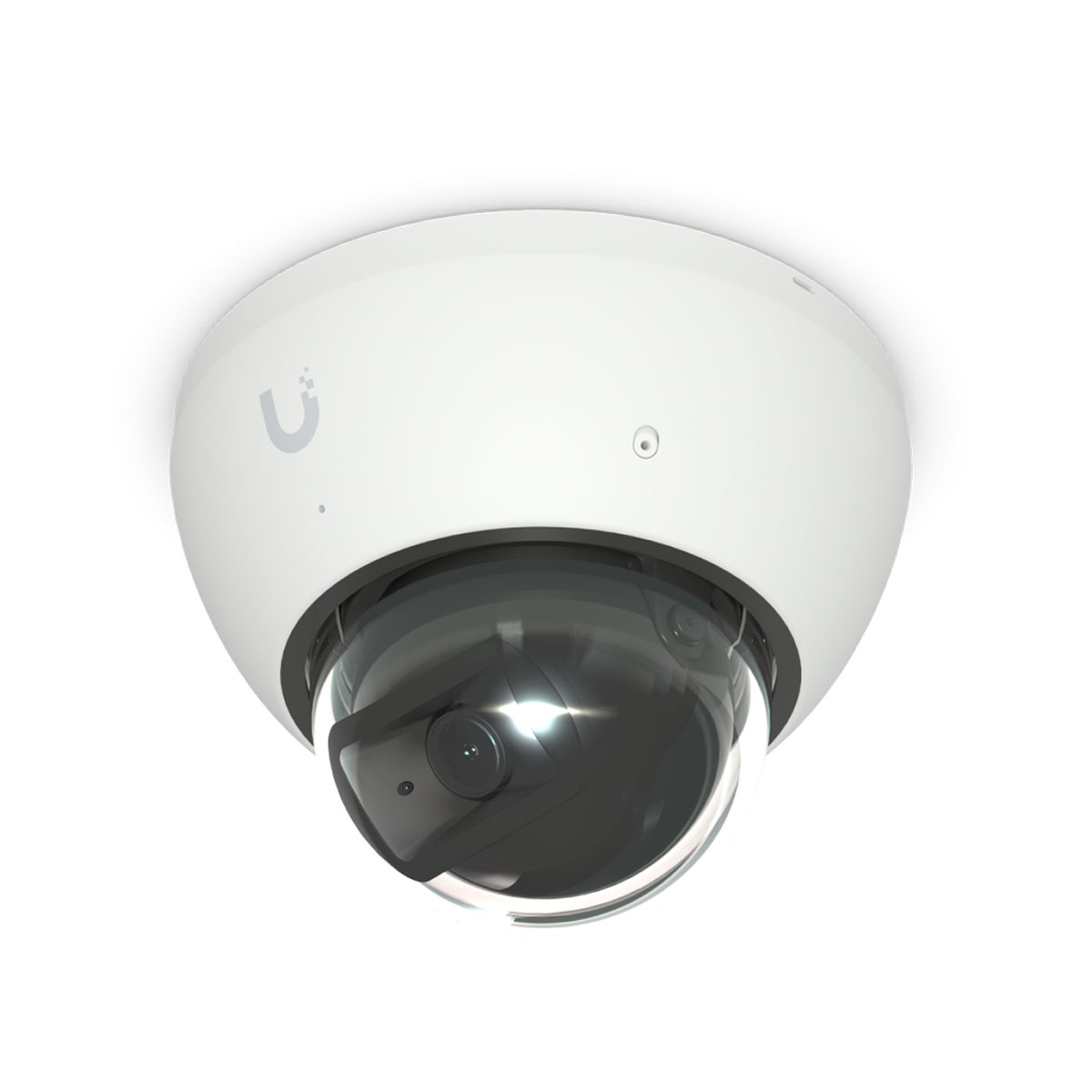

Ubiquiti UVC-AI-DOME-W, Vandal-Proof 4K PoE Dome Camera With Enhanced AI Capabilities, White
Ubiquiti UVC-AI-DOME-W, Vandal-Proof 4K PoE Dome Camera With Enhanced AI Capabilities, White

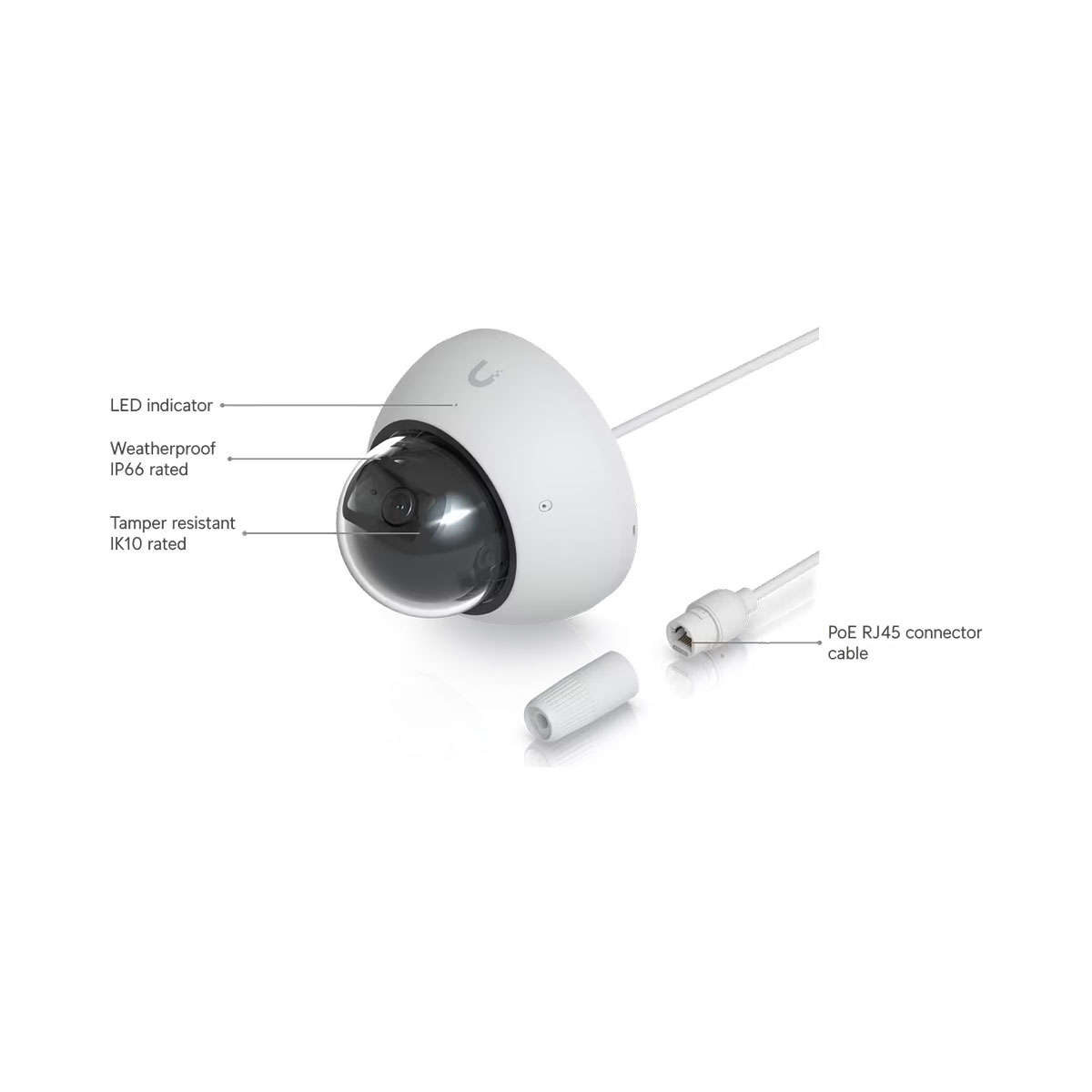

The UniFi Protect dome camera features a high-resolution 8 MP sensor (3840 x 2160 px) at 30 fps and a fixed lens of approximately 2.8 mm (inferred from the 110° field of view, not officially specified). It offers IR illumination for night vision up to 40 meters, microSD card slot (at least 64 GB), built-in microphone with an optional mute function, and smart AI capabilities, such as facial and license plate recognition. Its durable aluminum-polycarbonate housing ensures vandal resistance (IK10) and environmental protection (IP66). The camera connects via Gigabit LAN with PoE (42–57 V DC) support, consuming up to 10 W.
Key Features
• 8 MP, 30 fps video (3840 x 2160 px), 1/1.8" sensor
• IR LED for 40m night vision with IR cut filter
• Built-in microphone with software-controlled mute
• AI-powered facial and license plate recognition
• Powered via PoE (42–57V DC)
• Managed with UniFi Protect software
• IP66-rated water resistance and IK10 vandal resistance

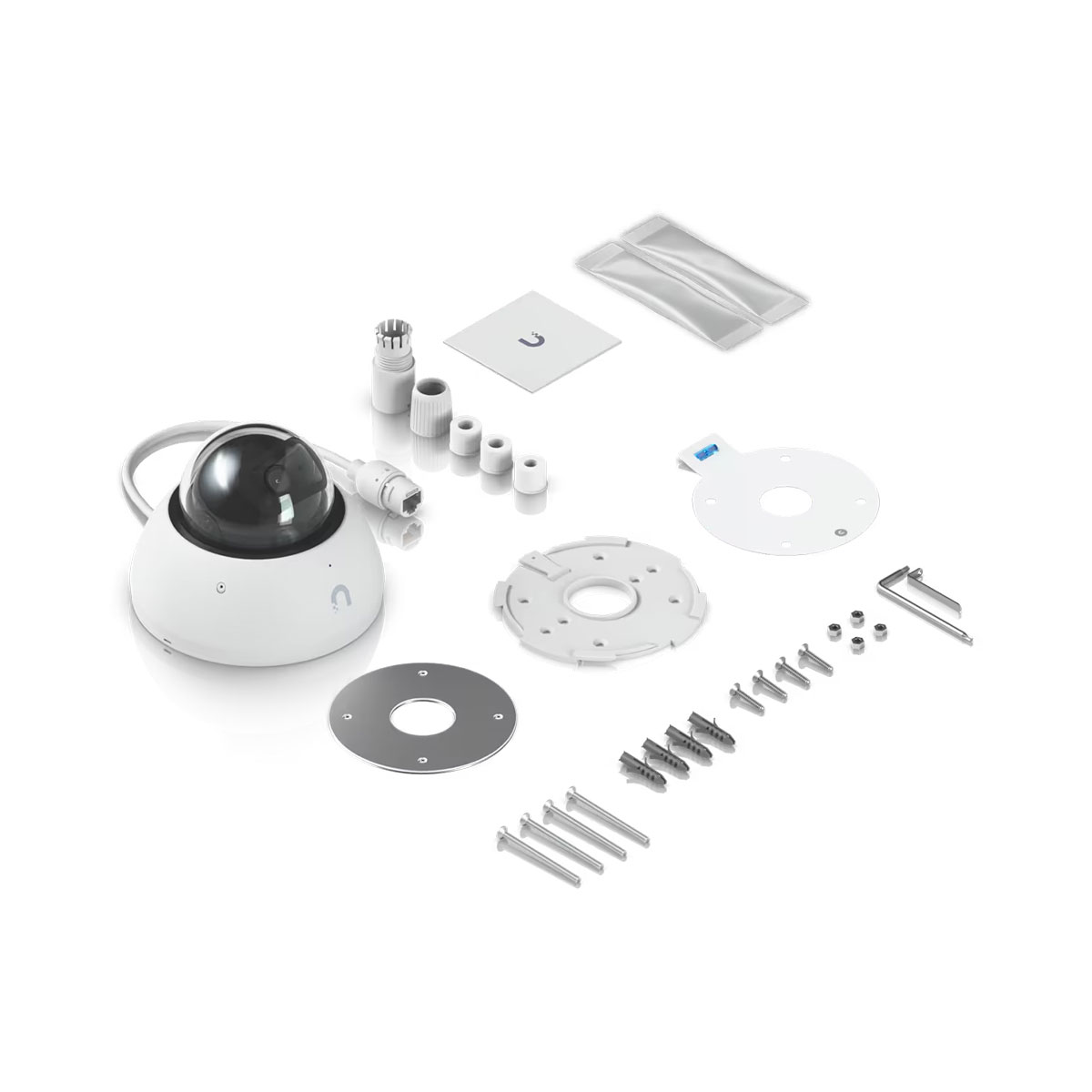

Package Contents
• Device
• Plastic and metal mounting plates
• Screws and wall plugs
• Cable gland
• Torx key
| Overview | |

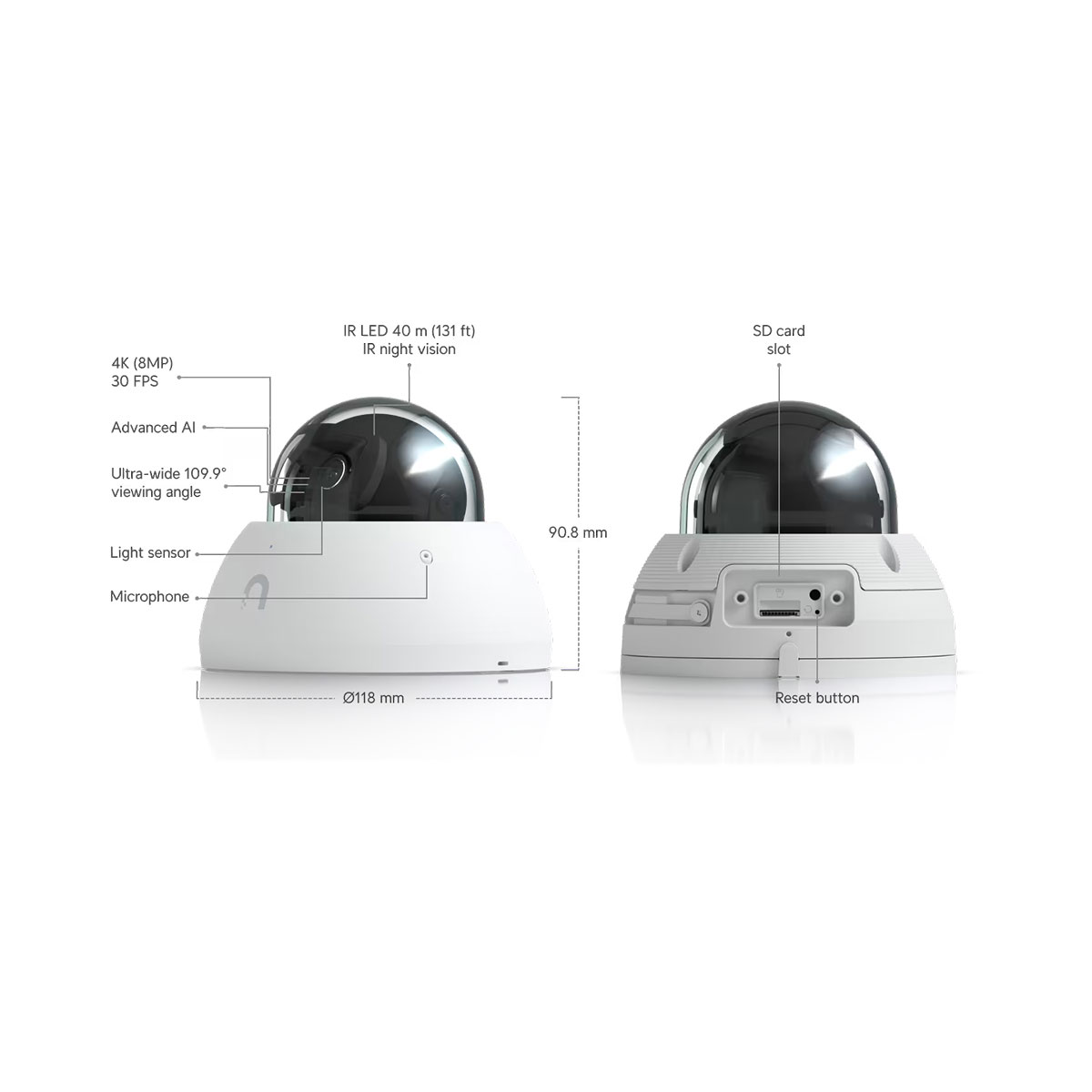

| Dimensions | Ø118 x 90.8 mm |
| IR Night Vision | 40 m |
| Face Recognition | ✓ |
| License Plate Recognition |
✓ |
| Smart Detections (People, Vehicles, Animals) | ✓ |
| Resolution | 4K |
| Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK10 |
| Mounting | Arm, ceiling , pendant, wall mount, junction box |
| Performance | |
| Networking Interface | GbE RJ45 port |
| Video | Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR Max. Frame Rate: 30 FPS Resolution: 8MP 3840 x 2160 (16:9) |
| Optics | Sensor: 1/1.8" 8MP Lens: Fixed focal length Night Mode: Built-in IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 10W |
| Supported Voltage Range | 42.5—57V DC |
| Power Method | PoE |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | 700 g |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Surface mount: polycarbonate |
| Expansion Slot | MicroSD Card |
| Button | (1) Factory-reset |
| Cable | Cable Connector Type: RJ45 Cable Diameter: 4.5 mm Cable Length: 30 cm Jacket Material: Thermoplastic elastomer Jacket Enclosure Dimensions: Ø20 x 70.6 mm Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -30 to 50º C |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
