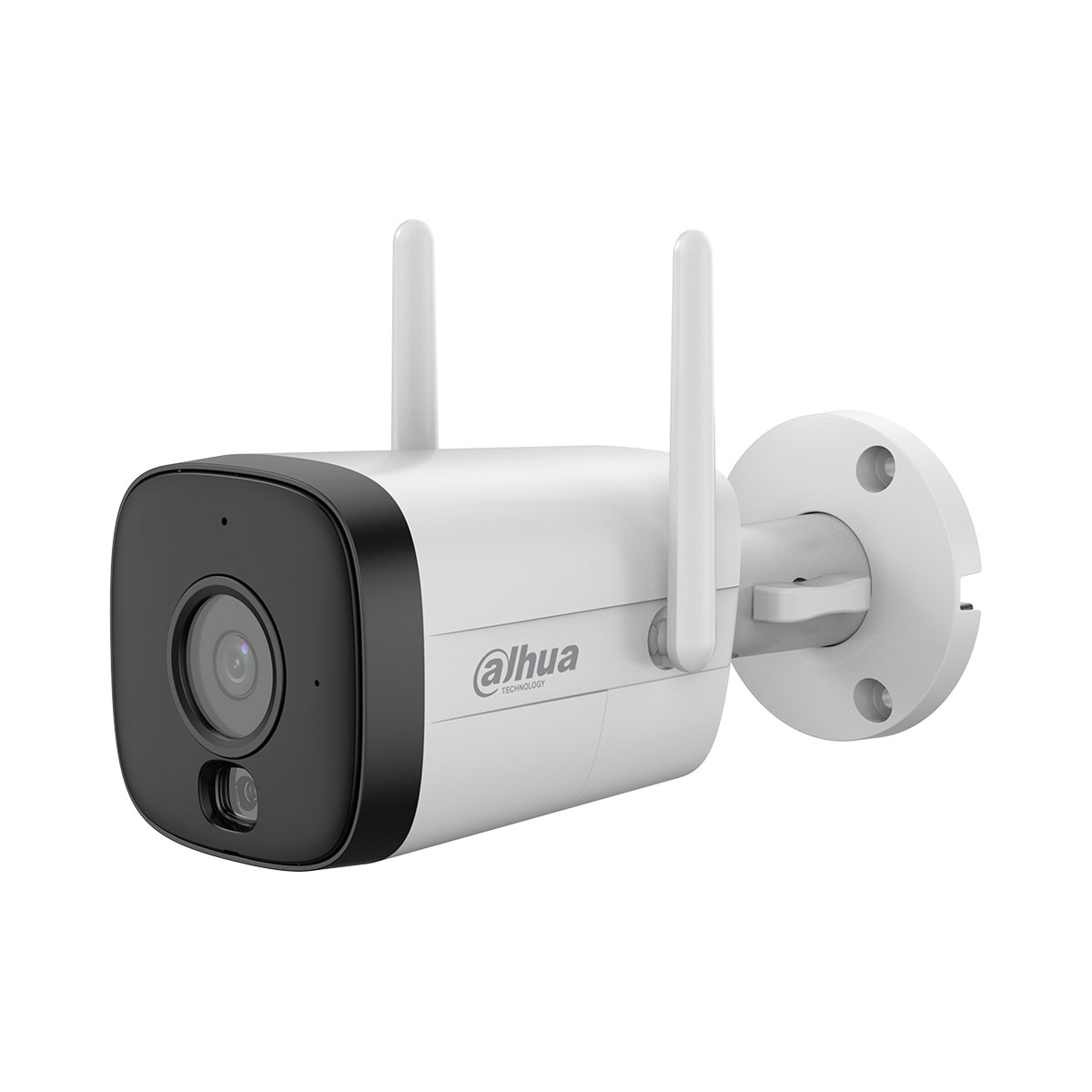

DAHUA IPC-HFW1539DTK1-SAW-IL-0280B 5MP Fixed-Focal Wi-Fi Bullet Network Camera(2.8mm)
Product Code:
IPC-HFW1539DTK1-SAW-IL-0280B
Available
DAHUA IPC-HFW1539DTK1-SAW-IL-0280B 5MP Fixed-Focal Wi-Fi Bullet Network Camera(2.8mm)
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description
| • 5MP - Clear images with sharp details • AI Vehicle Detection - Focuses on what matters and reduces false alarms • Wi-Fi 6 - Seamless integration of speed and anti-interference • H.265 - Advanced H.265 compression technology • Smart Dual Light - Captures color details for post-event review • Built-in MIC - Provides traceable audio details • IP67 Protection - Withstands harsh environments • Supports Micro SD Card - Low-cost storage • AI Human Detection - Focuses on what matters and reduces false alarms • Bluetooth Pairing - Fast pairing with Bluetooth • DMSS APP - Easy to use |
Series Overview
Driven by industry-leading technology, Dahua Wireless Series network cameras are highly precise and easy to install, producing high-quality images.
They have strong wireless connection capabilities and do not require network cables, eliminating the need for a professional construction team. This
series of cost-effective cameras supports local storage and is dustproof and waterproof. It is ideal for small and medium-sized scenes such as retail
stores, homes, and other small and medium-sized enterprises.
Characteristics
| SPECIFICATIONS | |
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Min. Illumination | 0.007 lux@F1.6 (Color, 30 IRE) 0.0007 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator Number | 1 (Multi-core (IR + warm) light) |
| Angle Adjustment | Tilt: 0°–90° Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 104°; V: 56°; D: 124° |
| Intelligence | |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Audio and Video | |
| Video Compression | H.264B; H.264; H.264H; H.265; |
| Video Frame Rate | Main stream: 2880 × 1620@(1–25/30 fps) sub stream: 640 × 360@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 32 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm |
| Wi-Fi Pairing | Bluetooth pairing |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android;iOS |
| Function | |
| Abnormal Sound Alarm | Yes |
| General | |
| Certifications | CE |
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Basic: 2.4 W (12 VDC); Max.: 4.3 W (12 VDC) |
| Operating Temperature | –30 °C to +50 °C |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Camera Button | Reset button |
| Casing Material | Metal + plastic |
| Product Dimensions | 172.4 mm × 83.3 mm × 75.0 mm |
| Net Weight | 0.3 kg |
