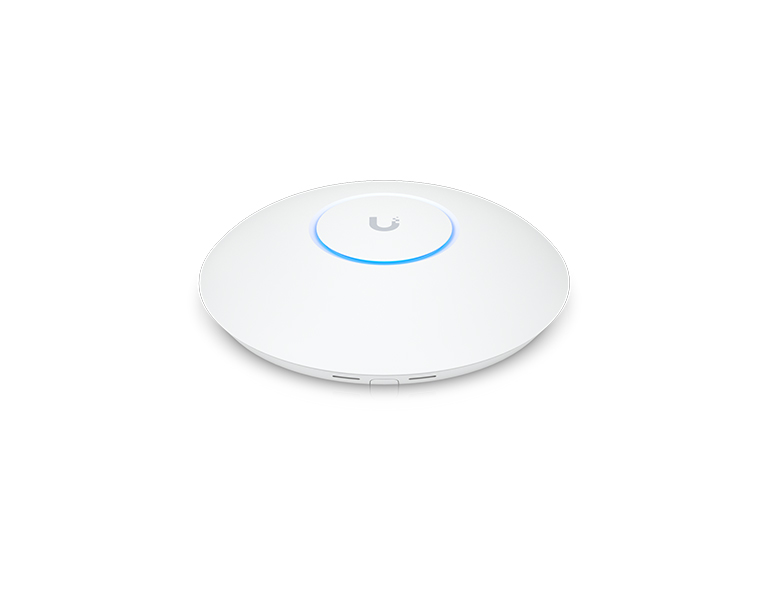

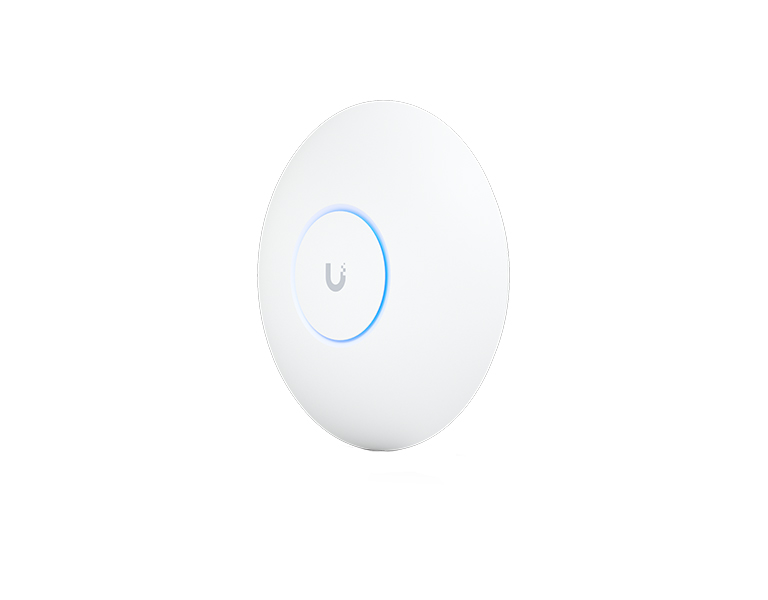

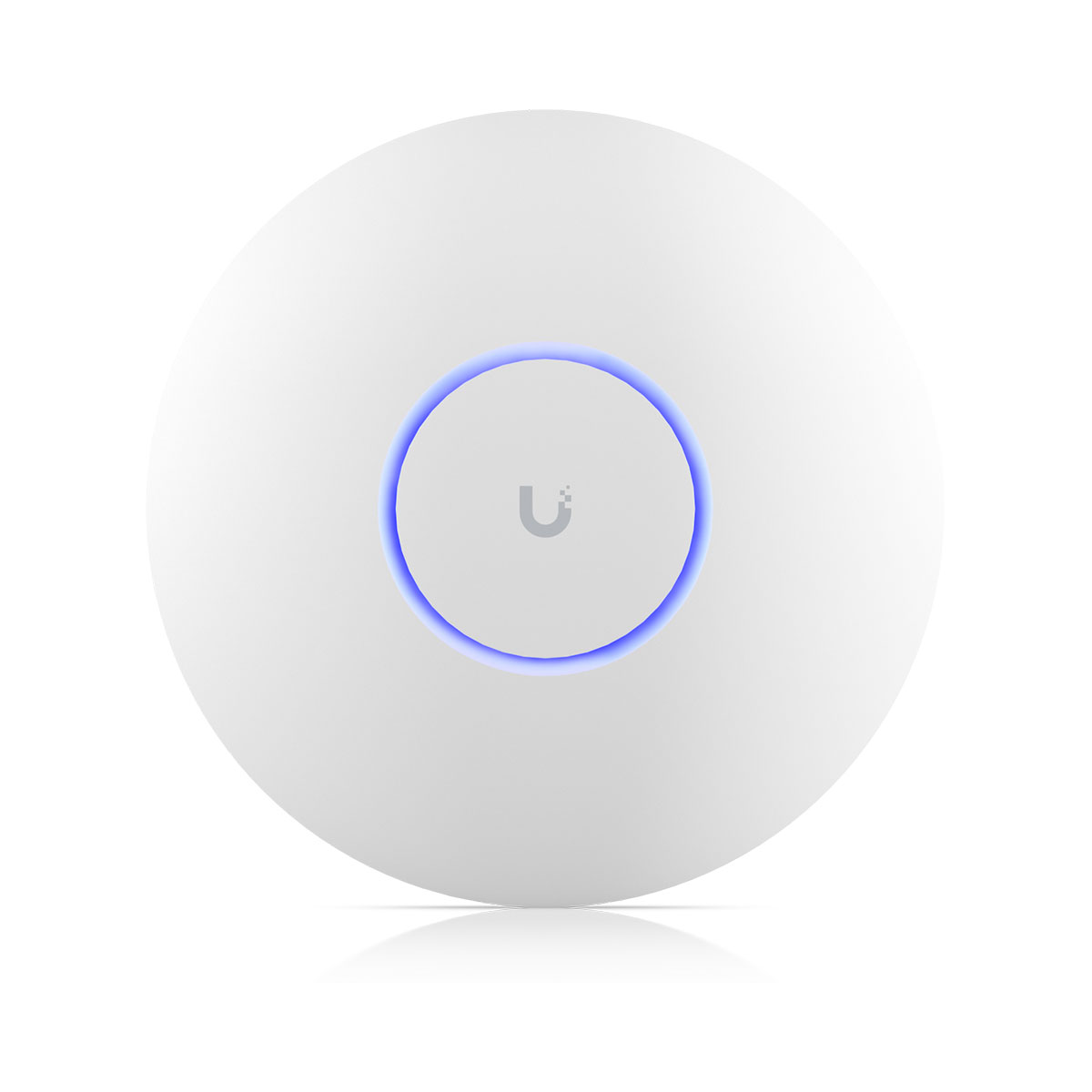

Ubiquiti U7-Pro-Max, UniFi 7 Pro Max Access Point
CAUTION PACKAGE DOES NOT INCLUDE POE ADAPTER
• WiFi 7 with 6 GHz support
• 8 spatial streams
• Real-time spectral analysis for enhanced channel selection*
• 160 m² (1,750 ft²) coverage
• 500+ connected devices
• Powered using PoE+
• 2.5 GbE uplink
Note. 6 GHz operation is supported in these countries.
Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.
*Requires UniFi Network 8.2.93 and later.
| Specifications | |
| Mechanical | |

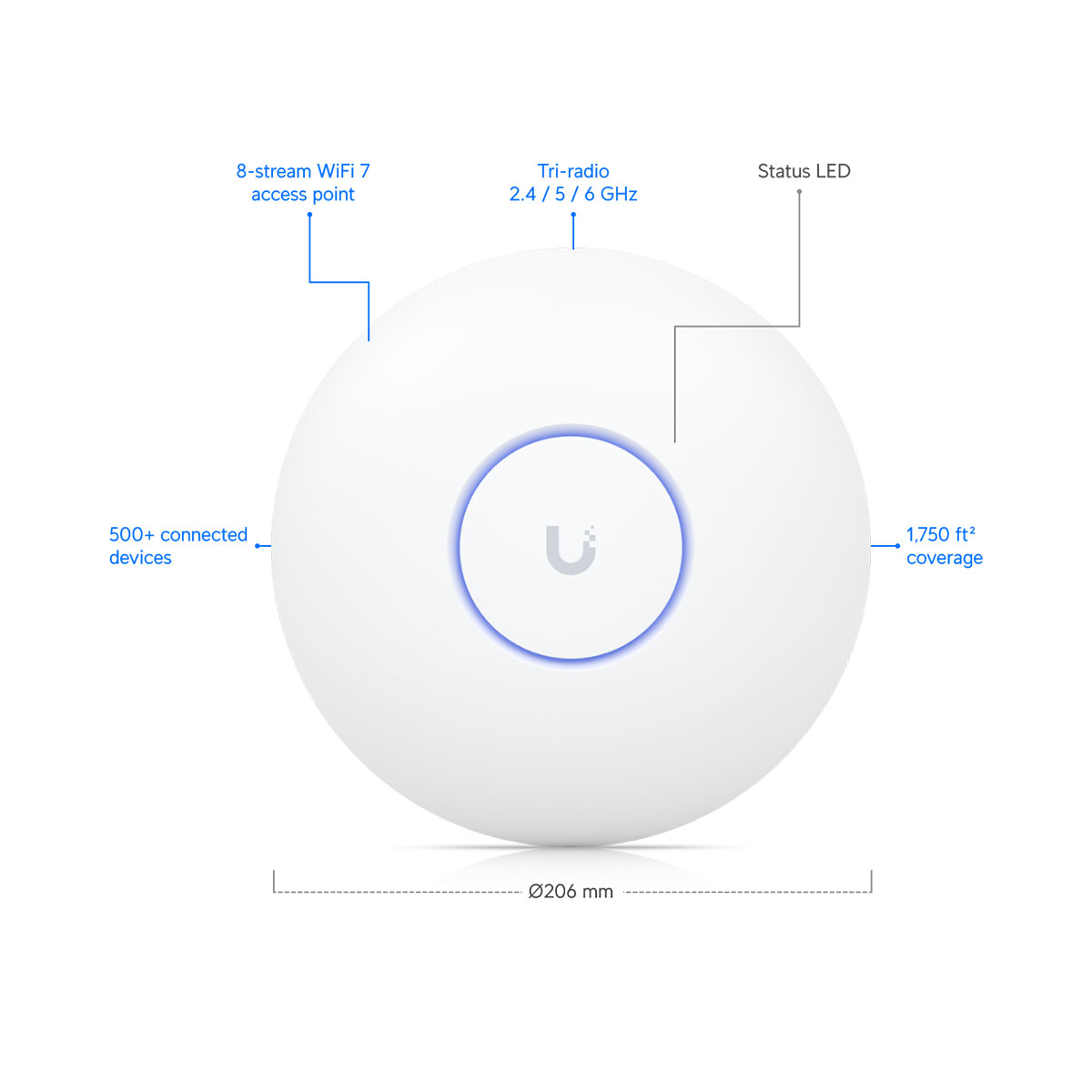

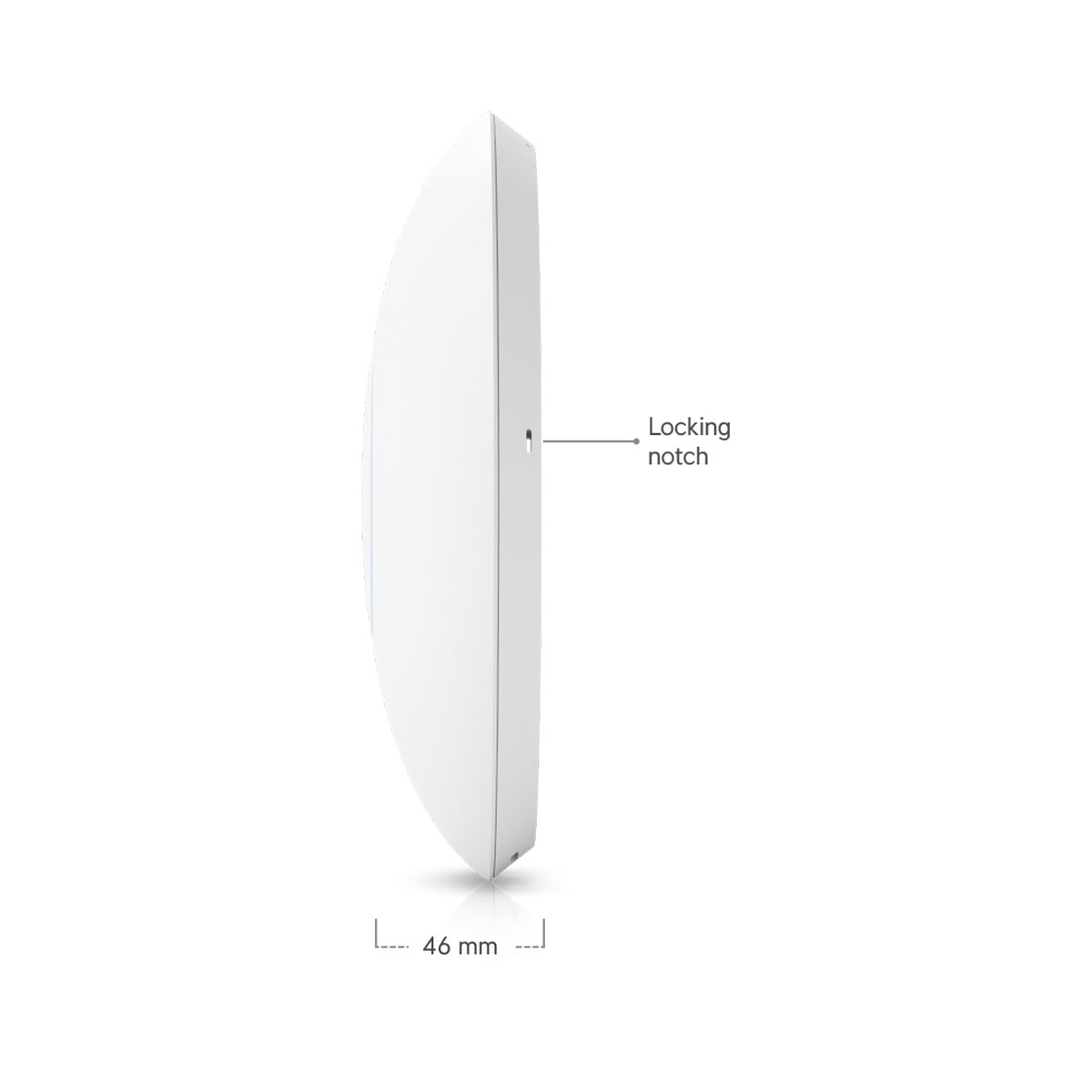

| Dimensions | Ø206 x 46 mm |
| Weight | 680g |
| Enclosure Material | Polycarbonate, aluminum |
| Mount material | Stainless steel (SUS304), galvanized steel (SGCC) |
| Hardware | |
| Management Interfaces | Ethernet |

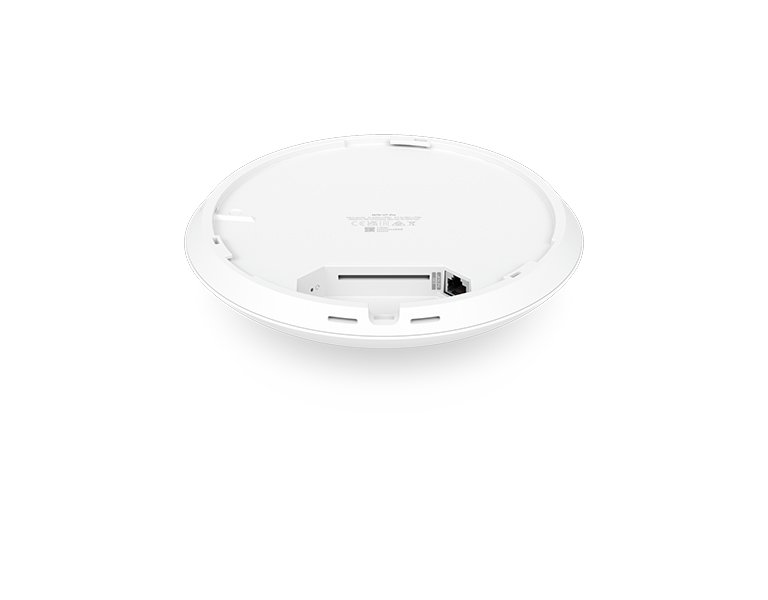

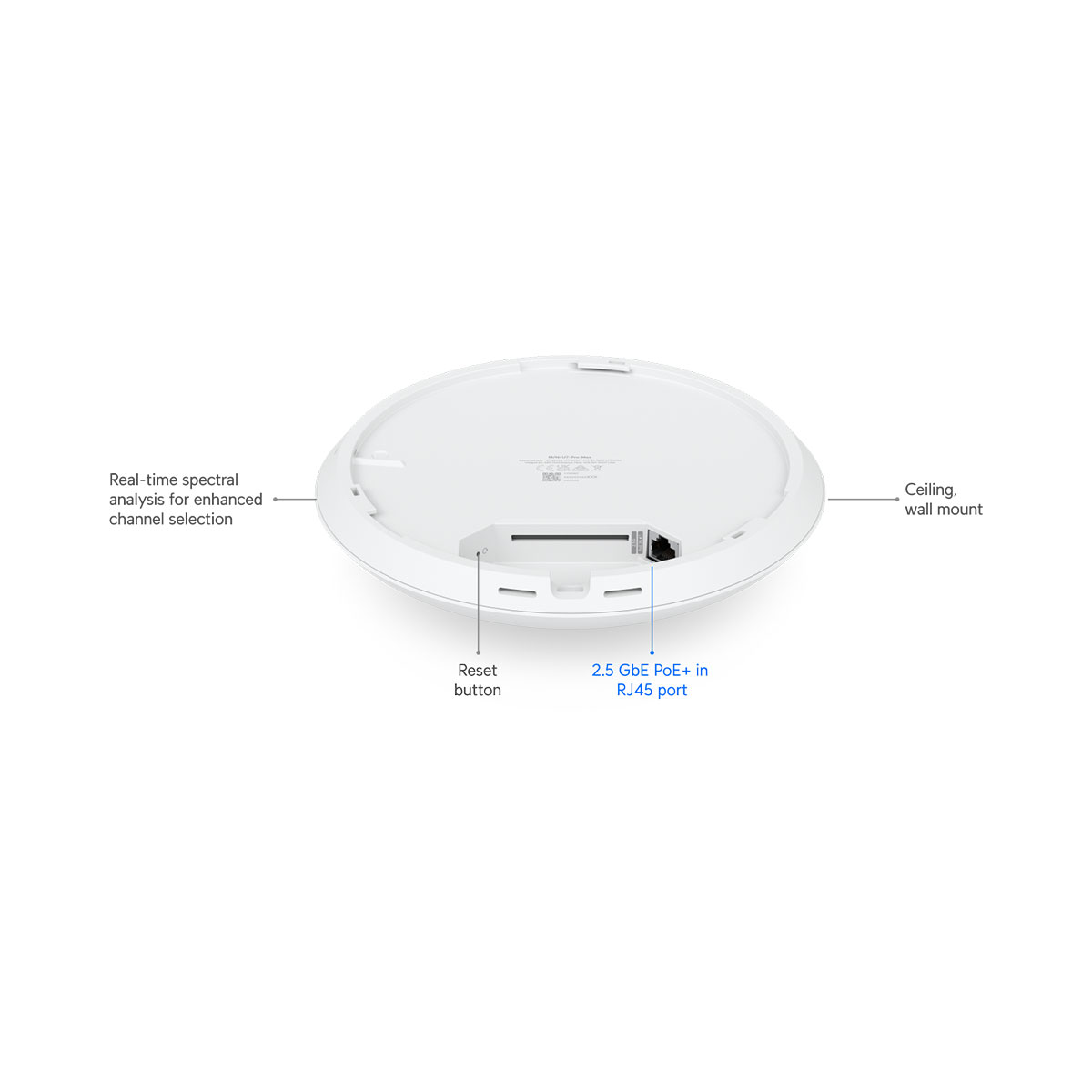

| Networking Interface | (1) 2.5 GbE RJ45 port |
| Button | Factory Reset |
| LEDs | White/Blue |
| Power Method | PoE+ |
| Power Supply | UniFi PoE switch |
| Supported Voltage Range | 44 - 57V DC |
| Max. Power Consumption | 25W |
| Max. TX Power 2.4 GHz 5 GHz 6 GHz |
23 dBm |
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Throughput Speeds 2.4 GHz 5 GHz 6 GHz |
688 Mbps (BW40) 8.6 Gbps (BW240) 5.7 Gbps (BW320) |
| Antenna Gain 2.4 GHz 5 GHz 6 GHz |
4 dBi 6 dBi 5.9 dBi |

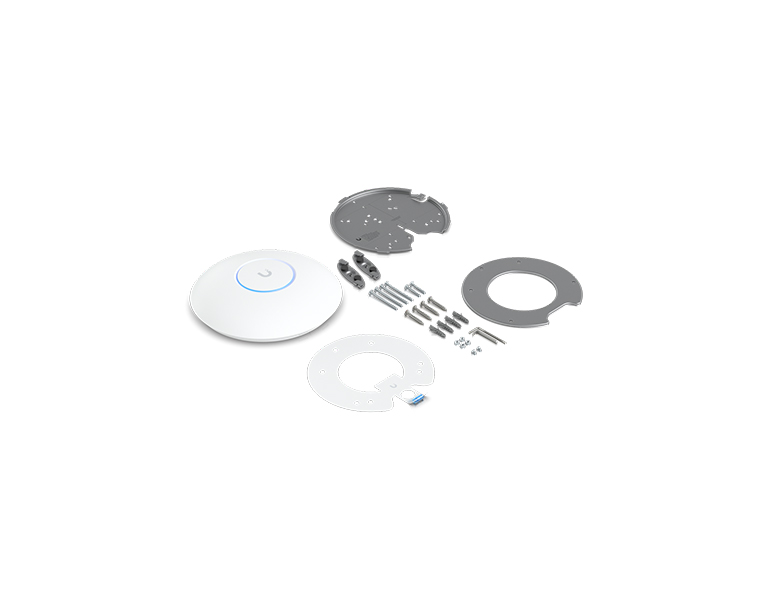

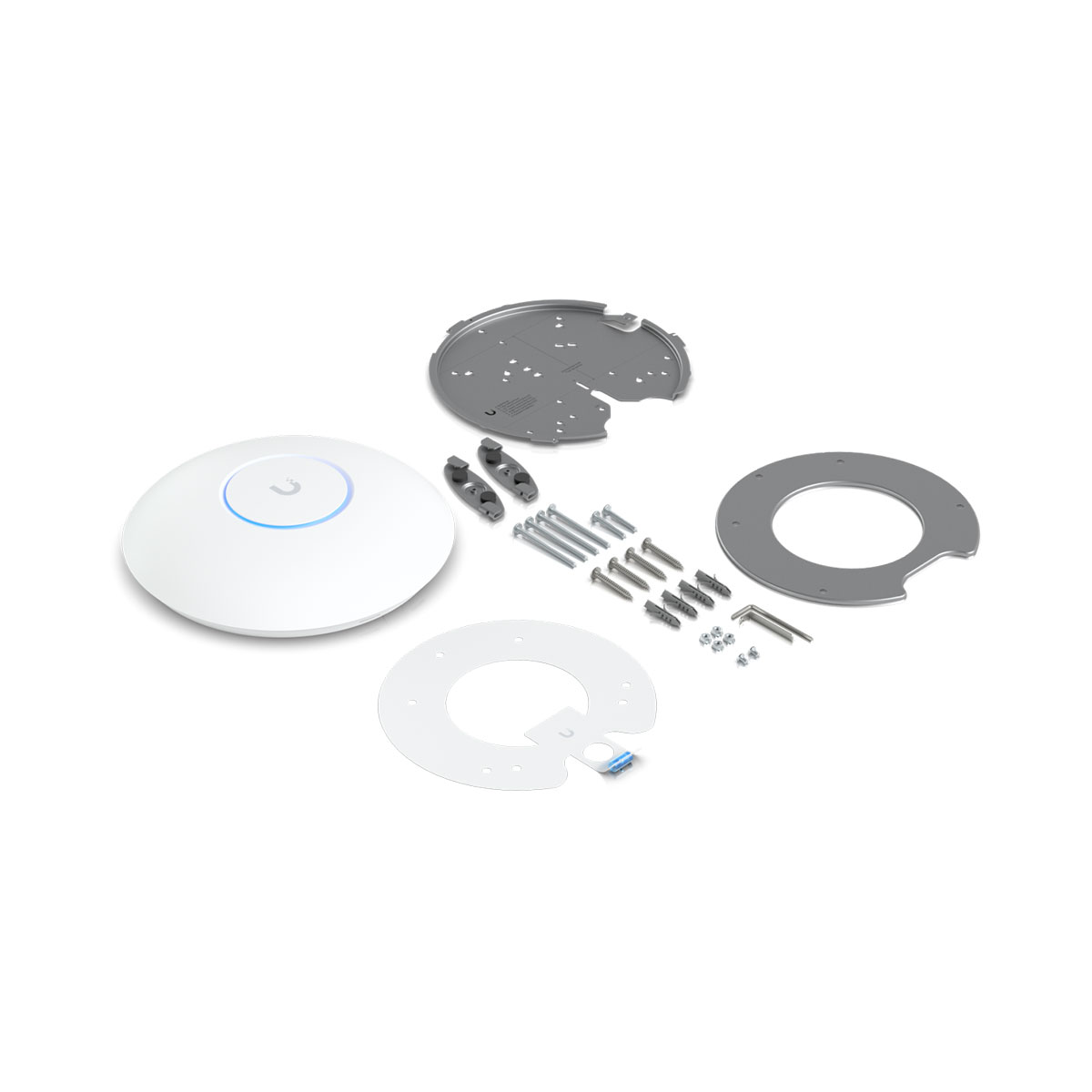

| Mounting | Wall/ceiling (included) |
| Operating Temperature | -30 to 60° C |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax/be(WiFi 6/6E, WiFi 7) |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per Radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 500+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (Wi-Fi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (Wi-Fi 6/6E) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (Wi-Fi 7) 5 GHz 6 GHz |
7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Application Requirements | |
| UniFi Network | Version 8.2.93 and later |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5945 – 6425 MHz defined in this document, Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017.
