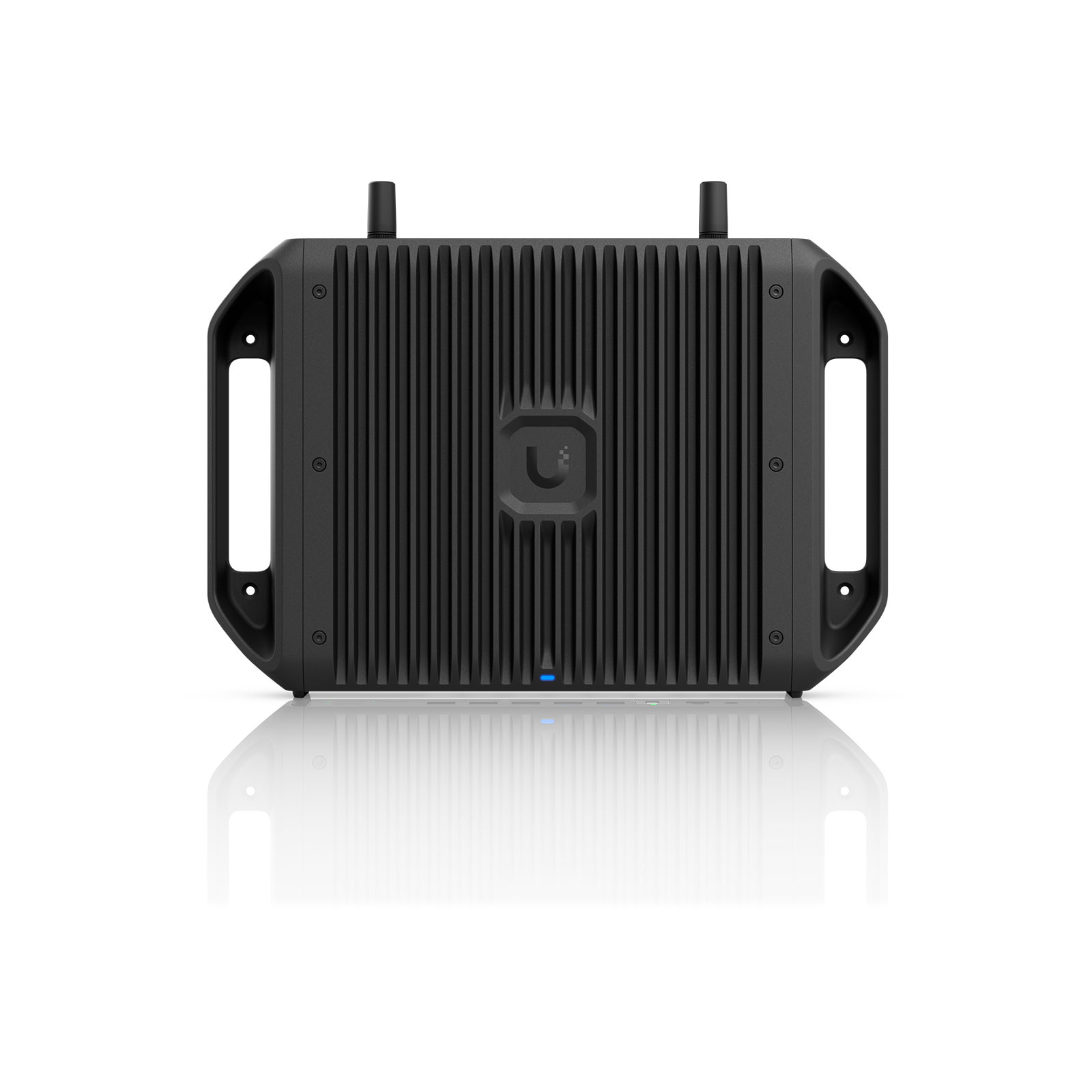

Ubiquiti UCG-INDUSTRIAL, 10 GbE UniFi Cloud Gateway Industrial
Ubiquiti UCG-INDUSTRIAL, 10 GbE UniFi Cloud Gateway Industrial
Industrial-grade cloud gateway with passive cooling offers 10GbE connectivity and top performance for demanding environments with high device density. With a total system performance of up to 350W PoE budget, it is ideal for powering access points, cameras, and other infrastructure elements. The integrated WiFi 7 (802.11be) access point with 2×2 MU-MIMO provides speeds of up to 4334 Mb/s on 5 GHz and reliable coverage of up to 115 m2.
Security and industrial readiness
The powerful quad-core ARM Cortex-A73 processor (2.2 GHz), 3 GB RAM, and integrated microSD storage enable full support for UniFi applications, including NVR functions. The device is designed for extreme conditions from -30 to +50 °C with ESD/EMP protection and flexible mounting on walls, tables, or in racks. Of course, there is comprehensive VPN support, including IPsec, WireGuard, and Teleport, along with the option for backup connection via 5G. The solution effortlessly manages more than 50 devices and serves over 500 concurrently connected users.
Key features
- 10 Gbps + 4× 2.5 Gbps ethernet (3× PoE+++ 90 W, 2× PoE+ 30 W)
- Optical interface 10G SFP+
- PoE budget up to 270 W (270 W DC / 75 W ATX)
- Integrated WiFi 7 (802.11be), 2×2 MU-MIMO – up to 4334 Mb/s (5 GHz) + 688 Mb/s (2.4 GHz)
- ARM Cortex-A73 2.2 GHz (quad-core), 3 GB RAM, 128GB microSD (UniFi Protect NVR)
- Management of 50+ devices, 500+ clients
- Operating temperature -30 to +50 °C, passive cooling, ESD/EMP protection
- VPN: Site Magic, IPsec, WireGuard, OpenVPN, Teleport + support for 5G backup WAN

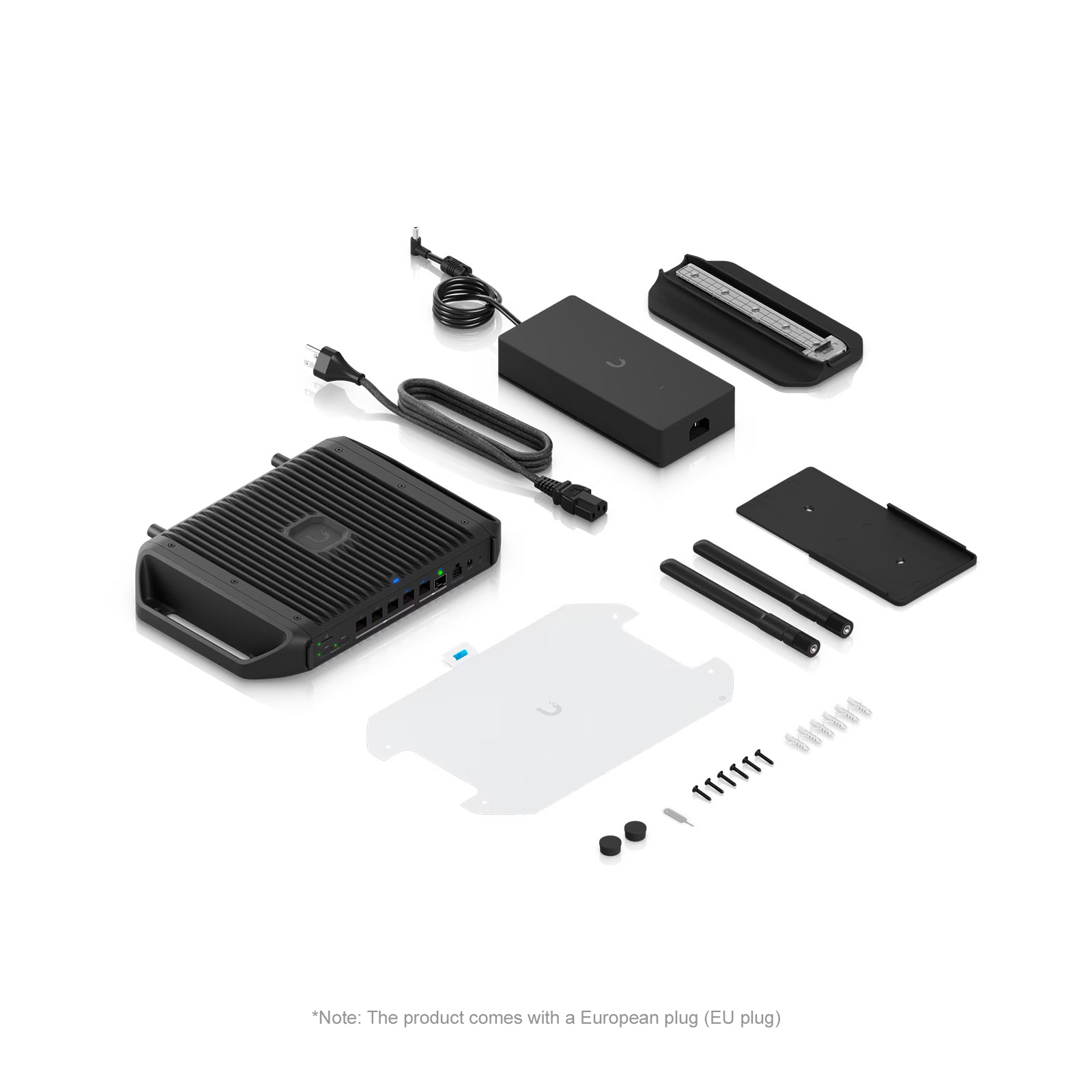

Package contents
- Device
- Power adapter 54V DC / 350 W
- Power cable
- Stand base
- Plastic wall mount for the power supply
- (2) omnidirectional Wi-Fi antennas
- Screws + dowels
| Overview | |

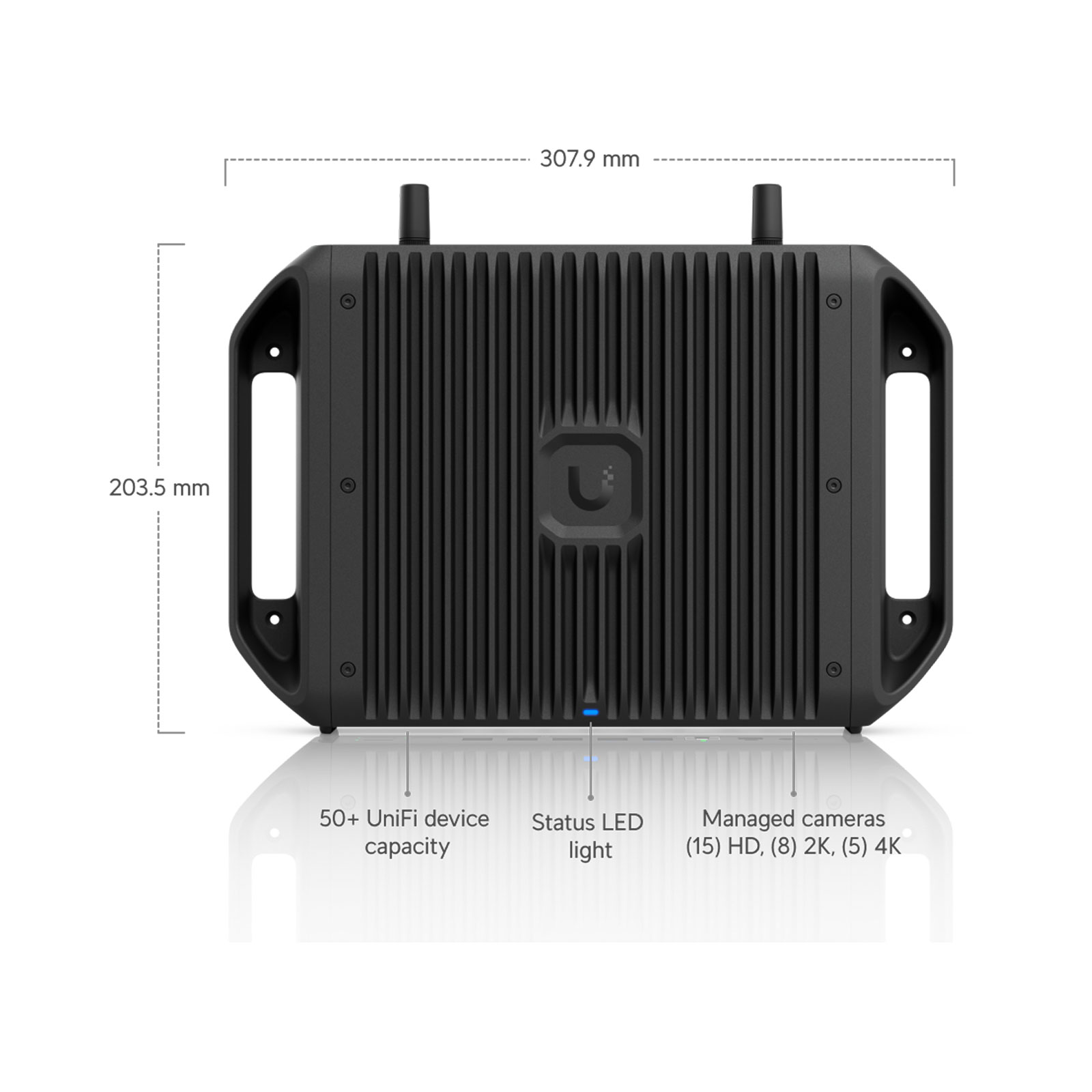

| Dimensions | Device: 307.9 x 203.5 x 43.7 mm Table stand: 203.5 x 100.2 x 21.9 mm |
| UniFi Application Suite | |
| Network | ✓ 🛈 Powerful gateways, WiFi access points, and switches enabling next-gen security and scalable SD-WAN. |
| Protect | ✓ 🛈 AI-powered camera system with flexible alarm integrations, and smart detections for streamlined incident management. |
| Access | ✓ 🛈 Secure Ethernet-based access control for doors, gates, and elevators, featuring flexible unlock mechanisms. |
| Talk | ✓ 🛈 Plug-and-play VoIP with advanced call routing and automations for seamless communication. |
| Connect | ✓ 🛈 Manage digital signage, EV chargers, and Lutron lighting systems with ease. |
| Managed UniFi Devices | 50+ |
| Managed Cameras | (15) HD (8) 2K (5) 4K |
| Managed Access Hubs 🛈 Please note, Reader Pro and Intercom quantities must be below Protect supported camera limits. |
50 |
| Simultaneous Users Connected | 500+ |
| Max. WAN Port Count | 5 |

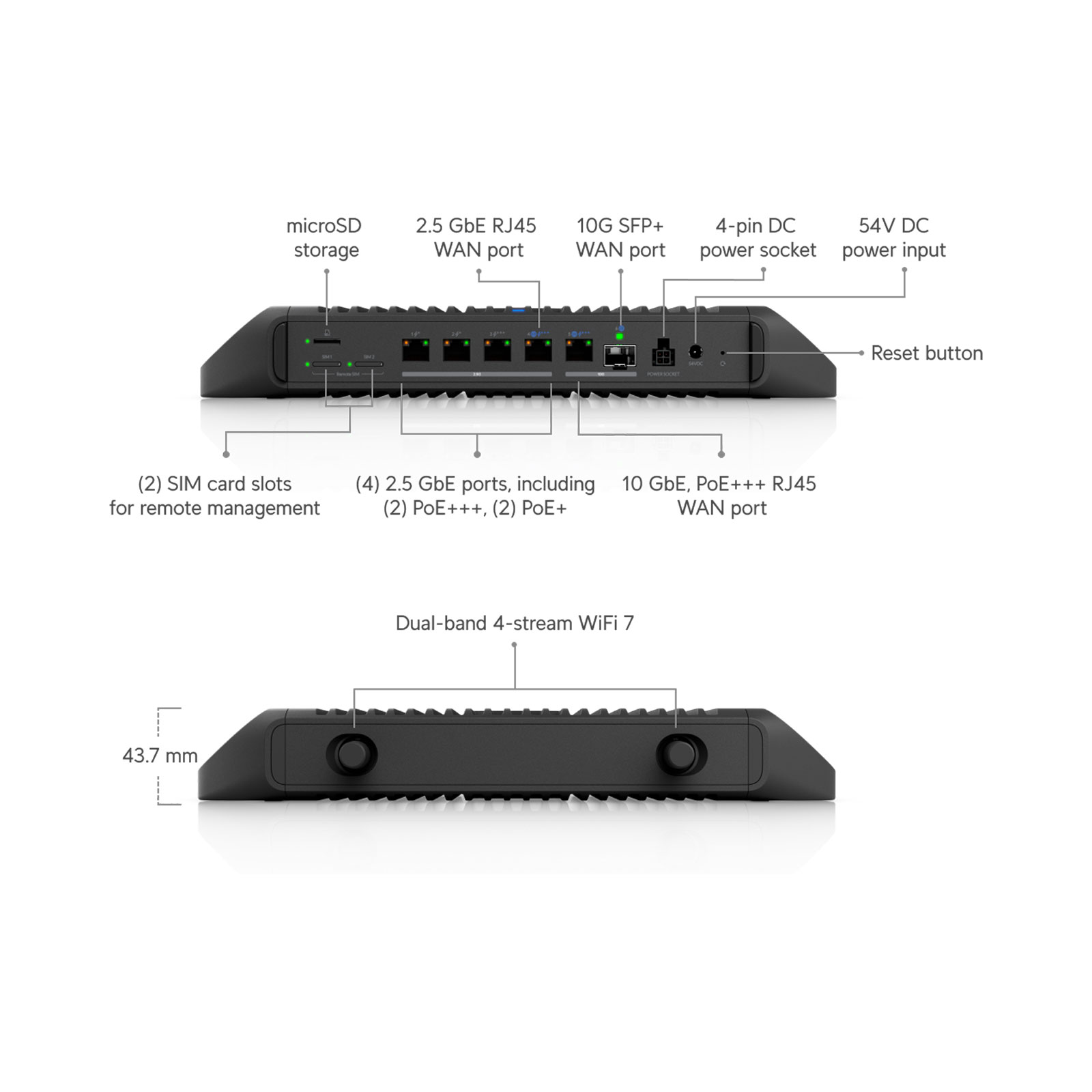

| Default WAN Ports | (1) 10G SFP+ (1) 10 GbE RJ45 (1) 2.5 GbE RJ45 |
| Port Layout | 2.5 GbE RJ45 4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M) |
| 10 GbE RJ45 1 (PoE+++) (10G/5G/2.5G/1G/100M) | |
| 10G SFP+ 1 (10G/1G) | |
| IDS/IPS Throughput | 5 Gbps |

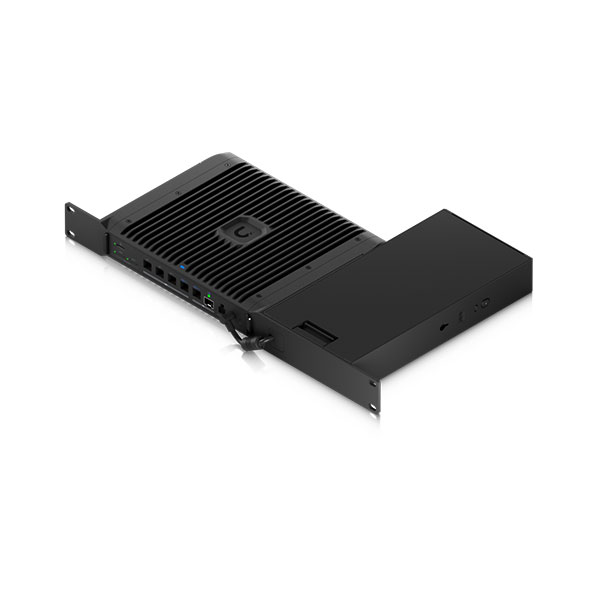

| Form Factor | Wall-mounted Compact desktop (Table stand included) Rack mount (Accessory sold separately) |
| Coverage Area | 115 m² |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | ✓ |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | Site Magic |
| IPsec | |
| OpenVPN | |
| VPN Server | Identity Endpoint One-Click VPN |
| Teleport Zero-Configuration VPN | |
| WireGuard | |
| OpenVPN | |
| L2TP | |
| VPN Client | OpenVPN |
| WireGuard | |
| Networking | |
| Multi-WAN Load Balancing | ✓ |
| Dynamic Routing | OSPF |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | ✓ |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover with UniFi LTE Backup | ✓ |
| Internet Quality and Outage Reporting | ✓ |
| MAC Address Table Size | 4,000 |
| Virtual Network Override | ✓ |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Throughput | 5 GHz - 4.3 Gbps |
| 2.4 GHz - 688 Mbps | |
| MIMO | 5 GHz - 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz - 2 x 2 (DL/UL MU-MIMO) | |
| Antenna Gain | 5 GHz Stub antenna: 5 dBi Terminal (Omni) antenna: 6 dBi |
| 2.4 GHz Stub antenna: 3 dBi Terminal (Omni) antenna: 6 dBi |
|
| Max. TX Power | 5 GHz 26 dBm |
| 2.4 GHz 23 dBm |
|
| Supported Data Rates | 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
|
| 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
|
| 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
| 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
| 802.11b 1, 2, 5.5, 11 Mbps |
|
| 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
| Hardware | |
| NVR Storage | Pre-installed 128 GB microSD for NVR |
| Expansion Slot | MicroSD Card 🛈 128 GB pre-installed microSD |
| PoE Budget | DC input: 270W ATX power: 75W |
| Max. PoE Wattage per Port by PSE | PoE+ 30W |
| PoE+++ 90W |
|
| Voltage Range PoE Mode | 50-57V |
| Max. Power Consumption | 28W (Excluding PoE output) |
| Power Method | (1) DC Input (350W PSU) (1) ATX power (48V) |
| Power Supply | 54V DC, 350W (Adapter included) ATX power (48V) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 95 BTU/hr (Excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 3 GB |
| Weight | Device: 2.4 kg Table stand: 321 g |
| Enclosure Material | Device: Polycarbonate, aluminium alloy Table stand: Polycarbonate, galvanized steel, silicone rubber |
| Management | Ethernet Bluetooth |
| LEDs | Ethernet - ✓ SFP+ - ✓ System - ✓ MicroSD - ✓ SIM - ✓ |
| Button | (1) Factory reset (2) Handle release buttons |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -30 to 50° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Software | |
| Web Application | UniFi iOS™: Version 10.32.0 and later Android™: Version 10.35.0 and later |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
