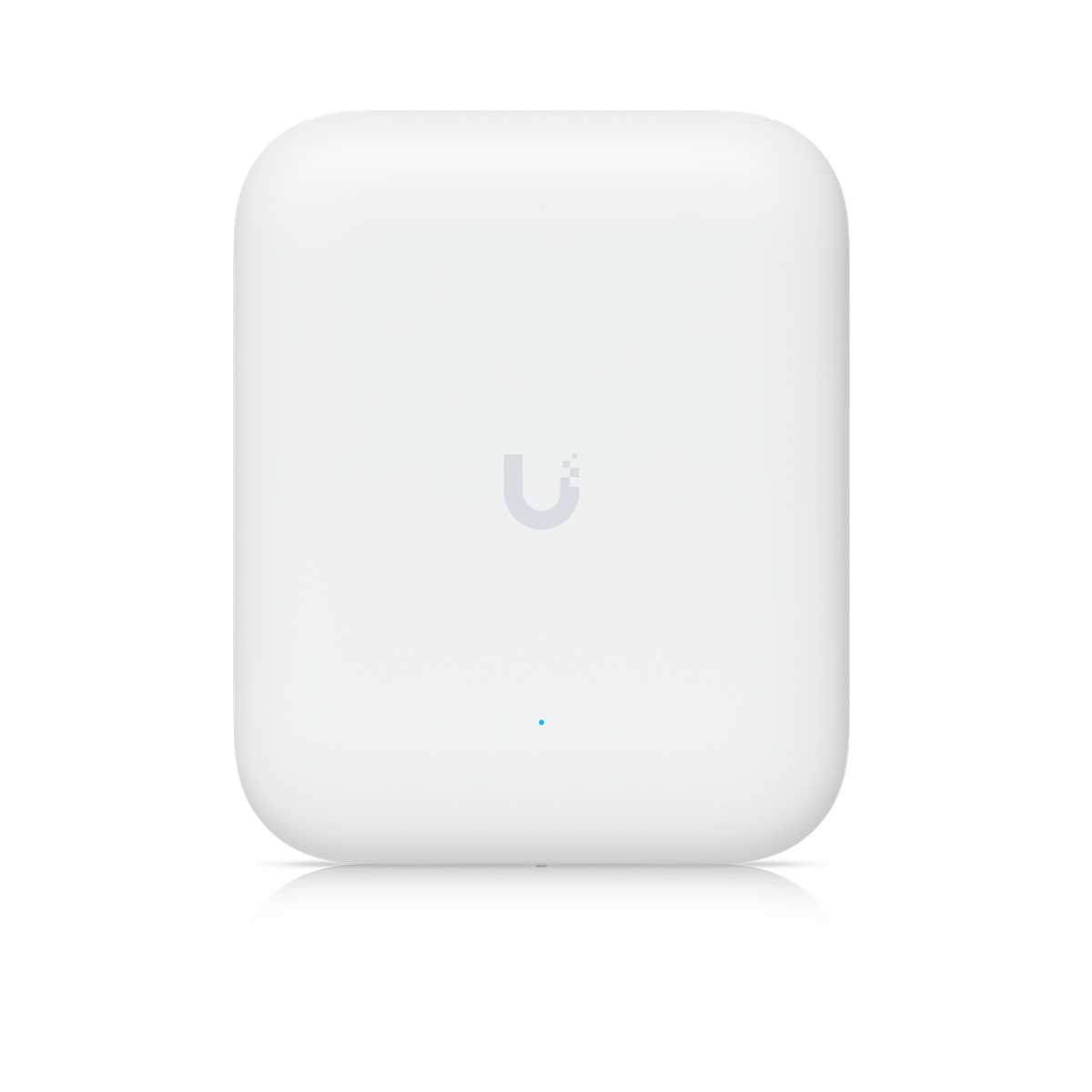

Ubiquiti U7-Pro-Outdoor Access Point WiFi 7, IP67
Product Code:
U7-PRO-OUTDOOR
373,00 €
(Includes VAT 24%)
Sales price without VAT:
300,81 €
Available
Ubiquiti U7-Pro-Outdoor Access Point WiFi 7, IP67
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
CAUTION PACKAGE DOES NOT INCLUDE POWER SUPPLY
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
Features:
• WiFi 7
• 4 spatial streams
• 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
• Software-switchable from internal directional to included external omni antennas
• 250+ connected devices
• Powered using PoE+
• 2.5 GbE uplink
• Versatile wall and pole mounting
• Weatherproof (outdoor exposed)
• WiFi 7
• 4 spatial streams
• 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
• Software-switchable from internal directional to included external omni antennas
• 250+ connected devices
• Powered using PoE+
• 2.5 GbE uplink
• Versatile wall and pole mounting
• Weatherproof (outdoor exposed)
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
|
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for outdoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
Characteristics
| Specifications | |
| Mechanical | |

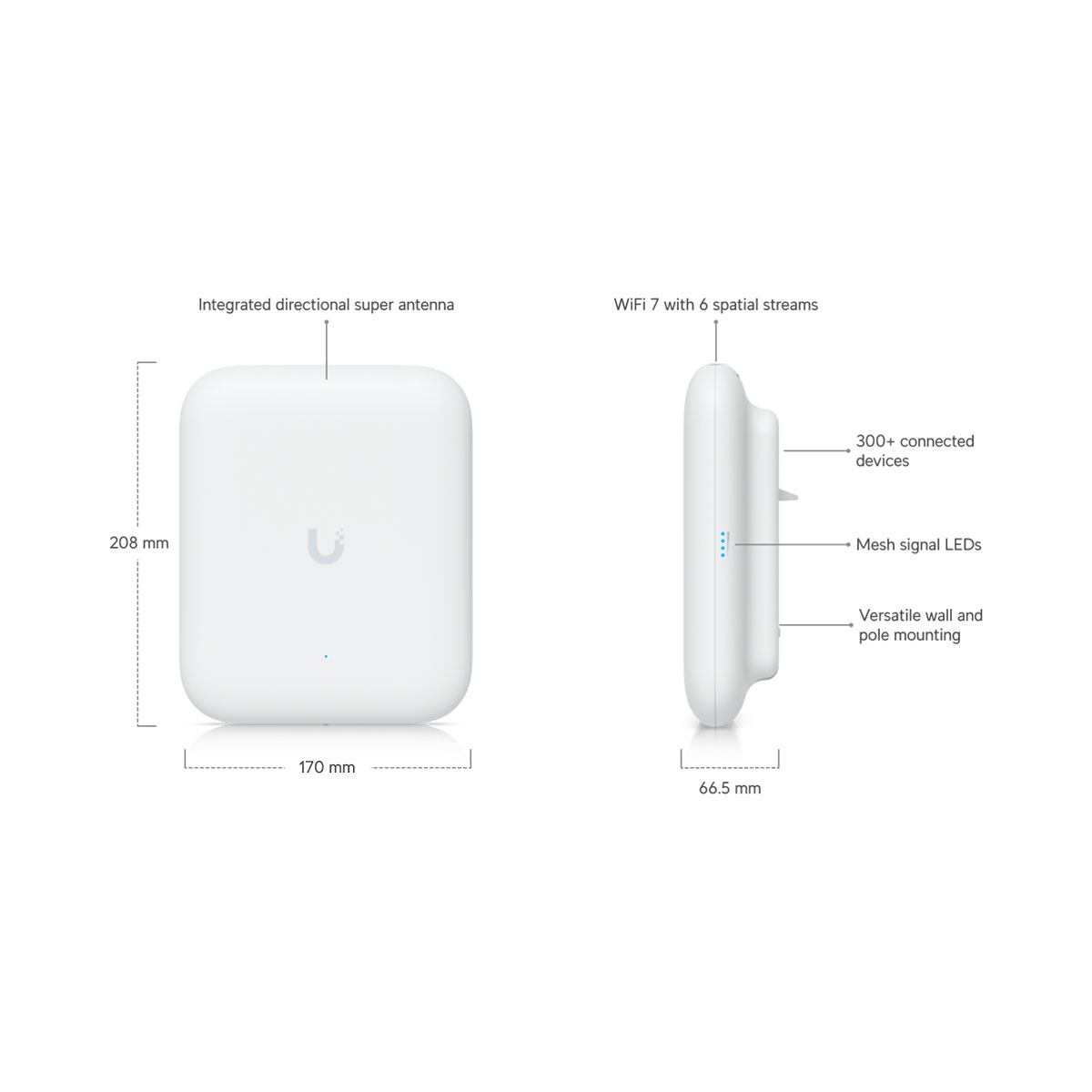

| Dimensions | Without mount: 170 x 208 x 66.5 mm With mount: 170 x 208 x 121.8 mm |
| Weight | Device: 1.2 kg Mount: 130 g |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount material | UV-stabilized polycarbonate |
| Pole mount diameter | 25–63.5 mm on pipe outer diameter |
| Wind survivability | 74.6 N at 200 km/h |

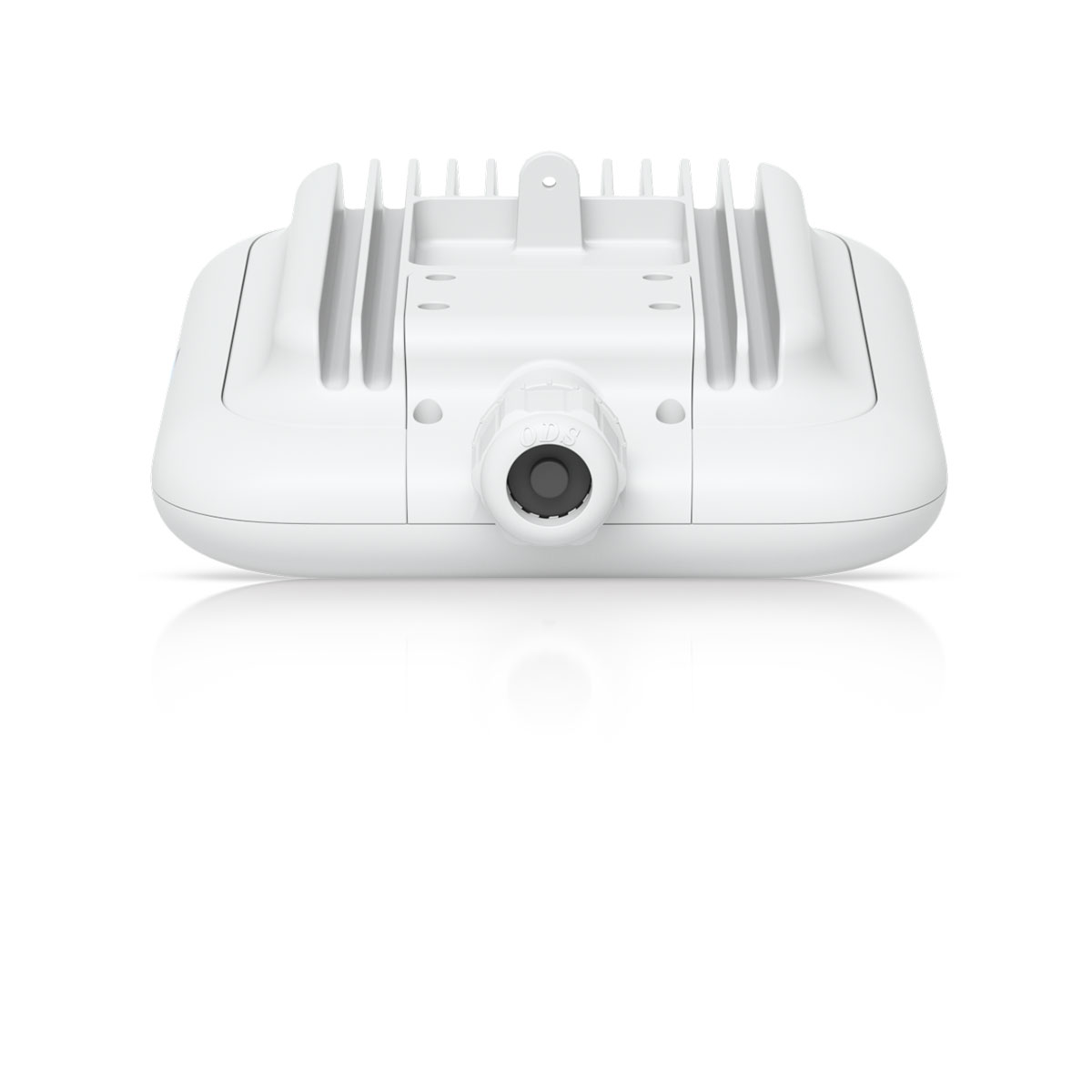

| Weatherproofing | IPX6 IP67 with cable-gland door kit (Included) |
| Hardware | |
| Management Interfaces | Ethernet |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| LEDs | White/Blue |
| Power Method | PoE+ |
| Power Supply | UniFi PoE switch |
| Supported Voltage Range | 42.5—57V DC |
| Max. Power Consumption | 21W |
| Max. TX Power 2.4GHz 5GHz |
23 dBm 26 dBm |
| MIMO 2.4GHz 5GHz |
2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Max. data rate 2.4GHz 5GHz |
688 Mbps (BW40) 4.3 Gbps (BW240) |
|
Antenna Gain |
Directional internal: 8 dBi/External omni: 6 dBi Directional internal: 12.5 dBi/External omni: 8 dBi |
| Antenna beamwidth 2.4GHz 5GHz |
|

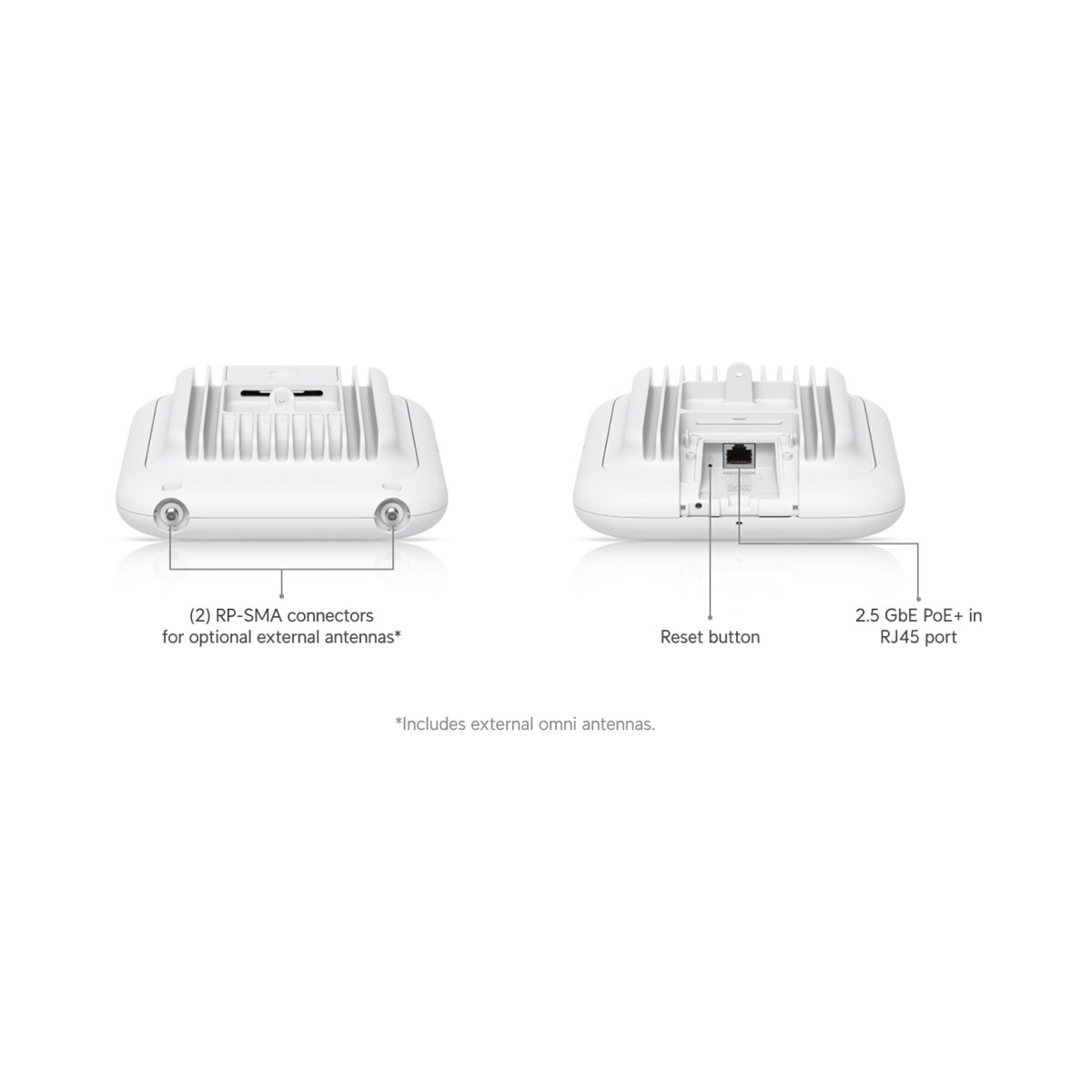

| Antennas | (1) Directional internal antenna (2) RP-SMA connectors for external antenna |
| Button | Factory reset |

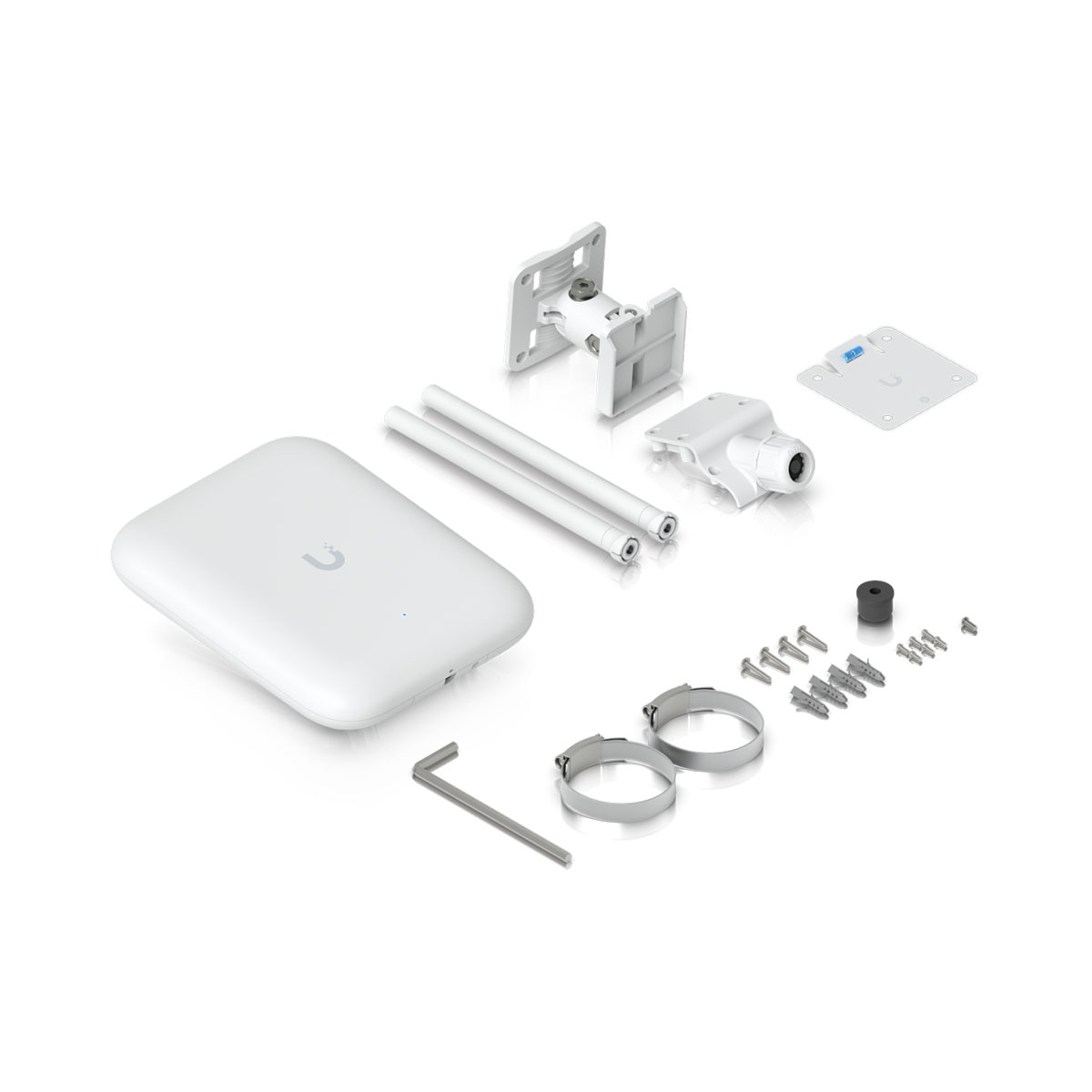

| Mounting | Wall, ceiling, pole (Included) |
| Ambient Operating Temperature | -30 to 60° C |
| Ambient Operating Humidity | 5 - 95% Noncondensing |
| Certifications | FCC, IC |
| Software | |
| Wi-Fi Standards | 802.11a/b/g/ac/ax/be (WiFi 6, WiFi 7) |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per Radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (Wi-Fi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (Wi-Fi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (Wi-Fi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
