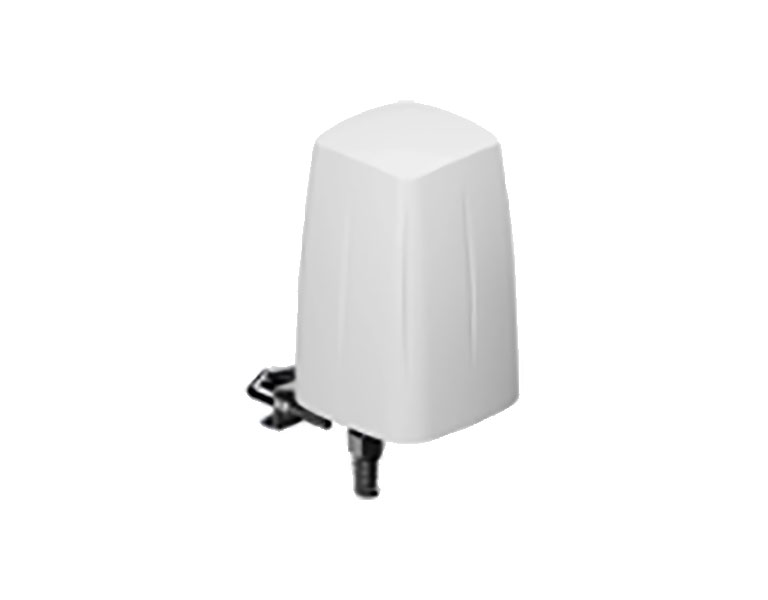

Teltonika PR1ICA70 Outdoor LTE & 5G/Wi-Fi/GPS Antenna for RUTX50 and RUTM50 Routers
Product Code:
PR1ICA70
Available
Teltonika PR1ICA70 Outdoor LTE & 5G/Wi-Fi/GPS Antenna for RUTX50 and RUTM50 Routers
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description
IP67
Water and dust-resistant for ultimate outdoor reliability
OMNIDIRECTIONAL
Designed for reliable signal coverage from every direction
INTEGRATED MOUNTING BRACKET
Quick and easy pole/mast mounting
PERFECT ROUTER MATCH
Compatible and designed to contain select Teltonika routers
The antenna is supplied without a router.
Characteristics
| Specifications | |
| 5G ANTENNA | |
| Frequency Range | 617~960, 1700~2700, 3300~4300 MHz |
| Polarization | Vertical |
| Radiation pattern type | Omnidirectiona |
| Gain | Max 4.5 dB |
| V.S.W.R | <2.50 |
| Impedance | 50 Ω |
| Connector type and count | 4x SMA male |
| GNSS ANTENNA | |
| Frequency Range | 1560 ~ 1610 MHz |
| Polarization | RHCP |
| Gain | 28 dBi |
| V.S.W.R | <2.00 |
| Impedance | 50 Ω |
| Connector | 1x SMA Male |
| Current consumption | 2.5 - 6.5 mA |
| Supply voltage | 2.5 - 6.5 VDC |
| WIFI Antenna | |
| Frequency Range | 2400~2500, 4700~6000 MHz |
| Bandwidth | ±100 MHz |
| Polarization | Vertical |
| Gain | Max 7.5 dBi |
| V.S.W.R | <2.00 |
| Impedance | 50 Ω |
| Connector | RP SMA Male |
| Mechanical/Environmental | |
| Cable | 6x RG316, 1x RG174 |
| Operating Temperature | -40 °C to 75 °C |
| Mounting Method | Wall, ceiling, mast |
| IP rating | IP67 |
| Weight | 1500 g |
| RoHS compliant | Yes |
Downloads
