Ubiquiti WAVE-MLO5, UISP, PTP, Wave Multi-Link Operation (MLO)
Ubiquiti WAVE-MLO5, UISP, PTP, Wave Multi-Link Operation (MLO)

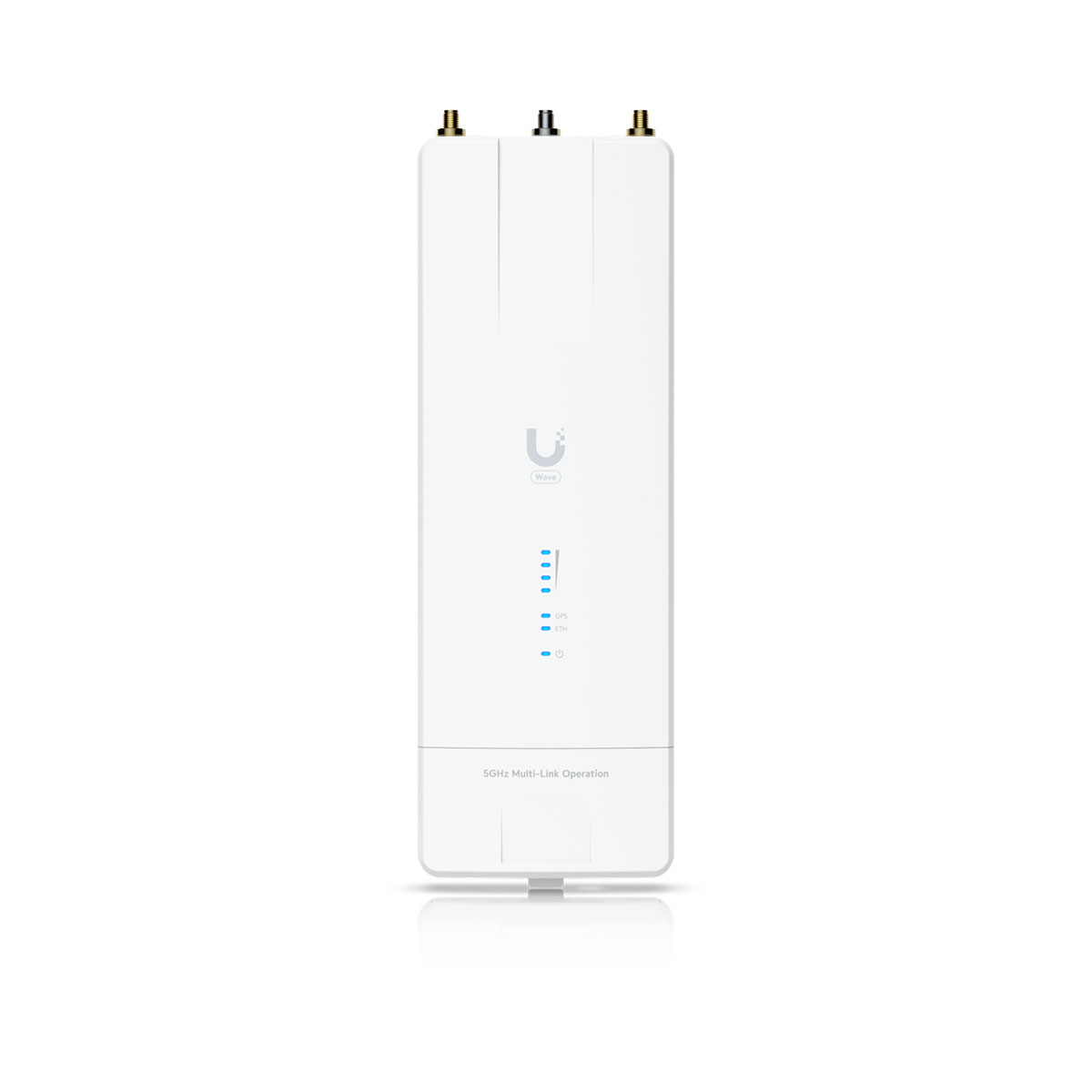

High-performance 5 GHz Point-to-Point (PtP) device with Multi-Link Operation (MLO) technology for stable and fast wireless connectivity. With two built-in radio units based on Wi-Fi 7, it achieves a transmission capacity of over 5 Gbps and a maximum range of up to 100 km. It offers 10 Gigabit LAN with PoE, an SFP+ port, and integrated GPS for precise alignment. Bluetooth enables easy setup via the UISP mobile app. Support for wide channels (up to 240 MHz) ensures flexibility and maximum performance in demanding environments.
Key Features
• PtP operating mode - Bridge mode
• Dual Wi-Fi 7 - 5 GHz radios with Multi-Link Operation
• 5+ Gbps throughput
• Range of 100+ km
• Frequency bands: 5180 - 5320, 5500 - 5700, and 5745 - 5825 MHz
• Supported bandwidths - RADIO 1: 20, 40, 80, 160 MHz, RADIO 2: 20, 40, 80, 160, and 240 MHz
• Built-in GPS
• Modulation of up to 4096 QAM
• Dedicated radio for spectrum analysis
• (1) 10 Gigabit Ethernet
• (1) SFP+ port
• Power over PoE (22 - 27 V DC, 44 - 54 V DC)
• Configuration via web management and Bluetooth - UISP mobile app
Package Contents
• Device
• Magnetic GPS antenna
• 10 Gbps PoE power adapter 54 V / 0.56 A
• Power cable
• Metal zip tie (25 to 51 mm)
• Wall mount bracket
• Screws + wall plugs
| Specifications | |

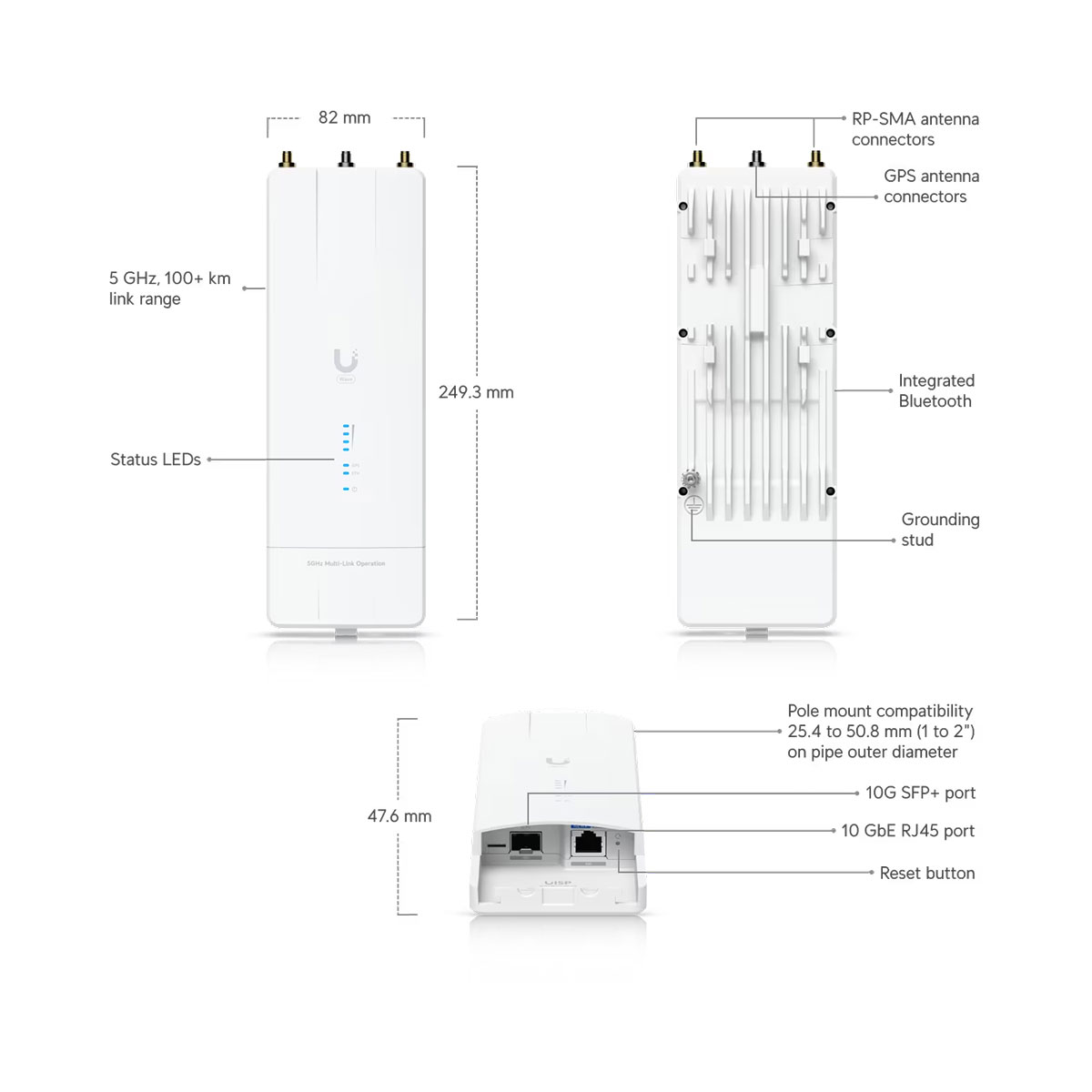

| Dimensions | 249.3 x 82 x 47.6 mm |
| Weight | 575 g |
| Enclosure material | Aluminum alloy, UV-resistant polycarbonate |
| Mount material | Strap: stainless metal Universal bracket: UV-resistant polycarbonate |
| Pole mount diameter | 25.4 to 50.8 mm on pipe outer diameter |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core IPQ5322 at 1.5 GHz |
| Memory | DDR4 1 GB |
| Networking interface | (1) 10 GbE RJ45 port (1) 10G SFP+ port |
| RF connectors | (2) RP-SMA (Waterproof) (1) GPS (Waterproof) |
| Max. power consumption | 20W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 54V DC, 0.56A, 10 GbE PoE adapter (Included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| Max. TX power* 5 GHz |
24 dBm *Depends on regulatory region. |
| MIMO 5 GHz |
(2) 2 x 2 |
| GPS | Yes |
| Button | (1) Factory reset |
| LEDs | (1) Power, (1) Ethernet, (1) GPS, (4) signal |
| Ambient operating temperature | -40 to 60° C |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Software | |
| Operating mode | PtP |
| Services | UISP, ping watchdog, NTP client |
| Tools | Alignment, speed test, ping, traceroute, discovery, site survey |
| Network | Bridge mode |
| Total throughput | 5+ Gbps |
| Max. range* | 100 km *Throughput and range values may vary depending on the environmental conditions. |
| Encryption | WPA3-PSK (AES) |
| RF | |
| Operating frequency* | 5180 – 5320, 5500 – 5700, 5745 – 5825 MHz *Depends on regulatory region. |
| Channel bandwidth | Radio 1: 20, 40, 80, 160 MHz Radio 2: 20, 40, 80, 160, 240 MHz |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
