TP-LINK EAP723 V1 BE3600 Ceiling Mount WiFi 7 Access Point
ΠΡΟΣΟΧΗ Η ΣΥΣΚΕΥΑΣΙΑ ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΤΡΟΦΟΔΟΤΙΚΟ
| • BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).† • 1× 2.5G port unlocks the full potential of Wi-Fi 7. • 160 MHz bandwidth enables many more simultaneous transmissions.‡ • Multi-RUs ensure the high performance of your network.‡ • Advanced Functions: Centralized management, Mesh, and Seamless Roaming.△ |
Optimized Wired Performance with 2.5G PoE + Port
With a 2.5 Gigabit Ethernet Port, EAP723 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 160 MHz bandwidth is only available on the 5GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be) and features including 160 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
| HARDWARE FEATURES | |
| Main design | |
| LAN Interfaces | 1x 2.5Gbps Ethernet Port |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Maximum Data Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) |
| Wireless Client Capacity | 2.4 GHz: 128 5 GHz: 128 |
| Antennas | 2.4 GHz: 2x 4 dBi 5 GHz: 2x 5 dBi |
| Bluetooth | 1 × 3dBi, Bluetooth 5.2 |
| Transmit Power |
CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 28 dBm (5 GHz, band 3, EIRP)
FCC: <25dBm (2.4 GHz); <25dBm (5 GHz Band1&Band4); <24dBm (5 GHz Band2&Band3)
|
| Reception Sensitivity |
2.4 GHz:
11ax HE20MCS0:-96dBm; 11ax HE20MCS11:-66.5dBm
11ax HE40MCS0:-93dBm; 11ax HE40MCS11:-64dBm
5 GHz:
11be EHT20MCS0:-95.5dBm; 11be EHTMCS13:-65dBm
11be EHT40MCS0:-93dBm; 11be EHT40MCS13:-62dBm
11be EHT80MCS0:-90dBm; 11be EHT80MCS13:-59dBm
11be EHT160MCS0:-87dBm; 11be EHT160MCS13:-57dBm
|
| Centralized Management | |
| Omada Software Controller | Yes |
| Omada Hardware Controller | Yes |
| Omada APP | Yes |
| Security | |
| Captive Portal Authentication | Yes |
| Access Control | Yes |
| Maximum number of MAC Filter | 4000 |
| Wireless Isolation between Clients | Yes |
| VLAN | Yes |
| Rogue AP Detection | Yes |
| Wireless Encryption | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Wireless Function | |
| Multiple SSIDs | 16 (8 on each band) |
| Channel | 2.4 GHz: 1~13; 5 GHz: 36~140 |
| Enable/Disable Wireless Radio | Yes |
| Enable/Disable SSID Broadcast | Yes |
| Guest Network | Yes |
| Automatic Channel Assignment | Yes |
| Transmit Power Control | Adjust transmit Power on dBm |
| QoS (WMM) | Yes |
| Seamless Roaming | Yes |
| Mesh | Yes |
| Beamforming | Yes |
| MU-MIMO | 2*2 (5 GHz) DL/UL MU-MIMO |
| MIMO | 2*2 (2.4 GHz/5 GHz) MIMO |
| OFDMA | DL/UL OFDMA |
| Rate Limit | Based on SSID/Client |
| Load Balance | Yes |
| Airtime Fairness | Yes |
| Band Steering | Yes |
| RADIUS Accounting | Yes |
| MAC Authentication | Yes |
| Reboot Schedule | Yes |
| Wireless Schedule | Yes |
| Wireless Statistics | Yes |
| Static IP/Dynamic IP | Yes |
| Support Data Rates | |
| 802.11be |
2.4 GHz Band: 8Mbps to 688Mbps(MCS0-MCS13,NSS=1 to 2 BE20/40)
5 GHz Band: EU: 8Mbps to 2882Mbps(MCS0—MCS13,NSS=1 to 2 EHT20/40/80/160)
|
| 802.11ax |
2.4 GHz Band: 8Mbps to 574Mbps(MCS0—MCS11,NSS=1 to 2 HE20/40
5 GHz Band: 8Mbps to 2402Mbps(MCS0—MCS11, NSS=1 to 2 HE20/40/80/160)
|
| 802.11ac | 6.5Mbps to 2166.7Mbps(MCS0—MCS11,NSS=1 to 2 VHT20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps(MSC0-MCS15, HT20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48 ,54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48 ,54 Mbps |
| Management | |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| Web-based Management | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| System Log | Yes |
| Email Alerts | Yes |
| OTHERS | |
| Power Supply | 802.3at PoE or 12V/1.5A DC Power Adapter Is Not Included |
| Maximum Power Consumption | 18.6W (For PoE); 16.0W (For DC) |
| Reset | Yes |

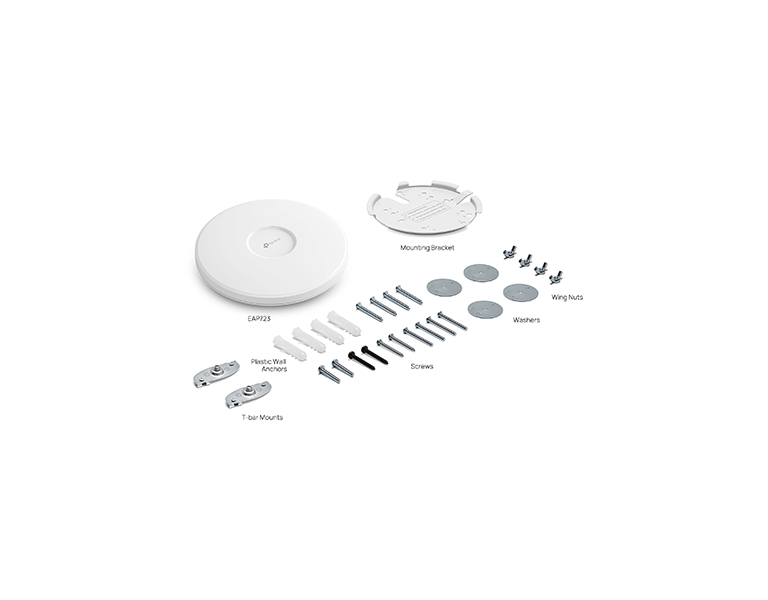

| Mounting | Ceiling / Wall mouting (Kits included) |
| Certifications | CE, FCC, RoHS, IC |
| Dimensions (W x D x H) | 160 x 160 x 36.7 mm |
| Net Weight | 412g |
| Enclosure Material / Rack Material | Top cover: PC Bottom shell: aluminum alloy Mounting rack: stainless stee |
| Lightning Protection | 4KV |
| Environment | Operating Temperature: 0 °C–40 °C Storage Temperature: -40 °C–70 °C Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
