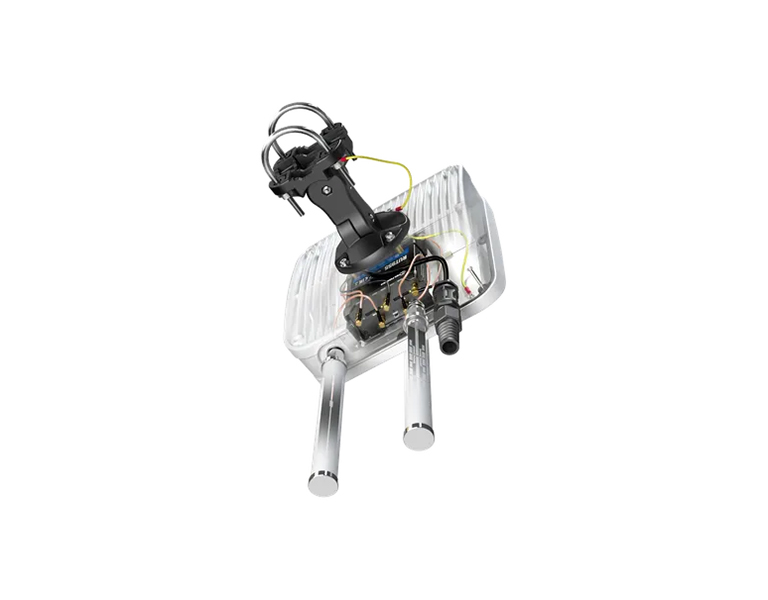

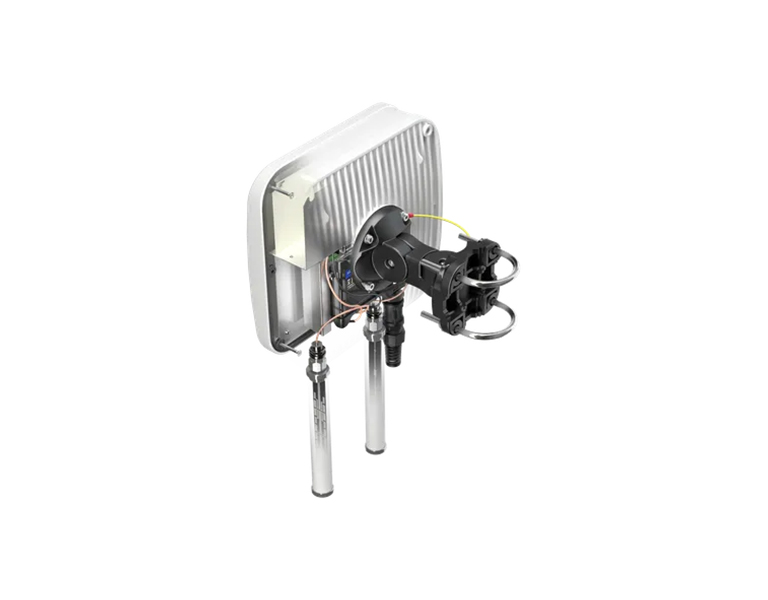

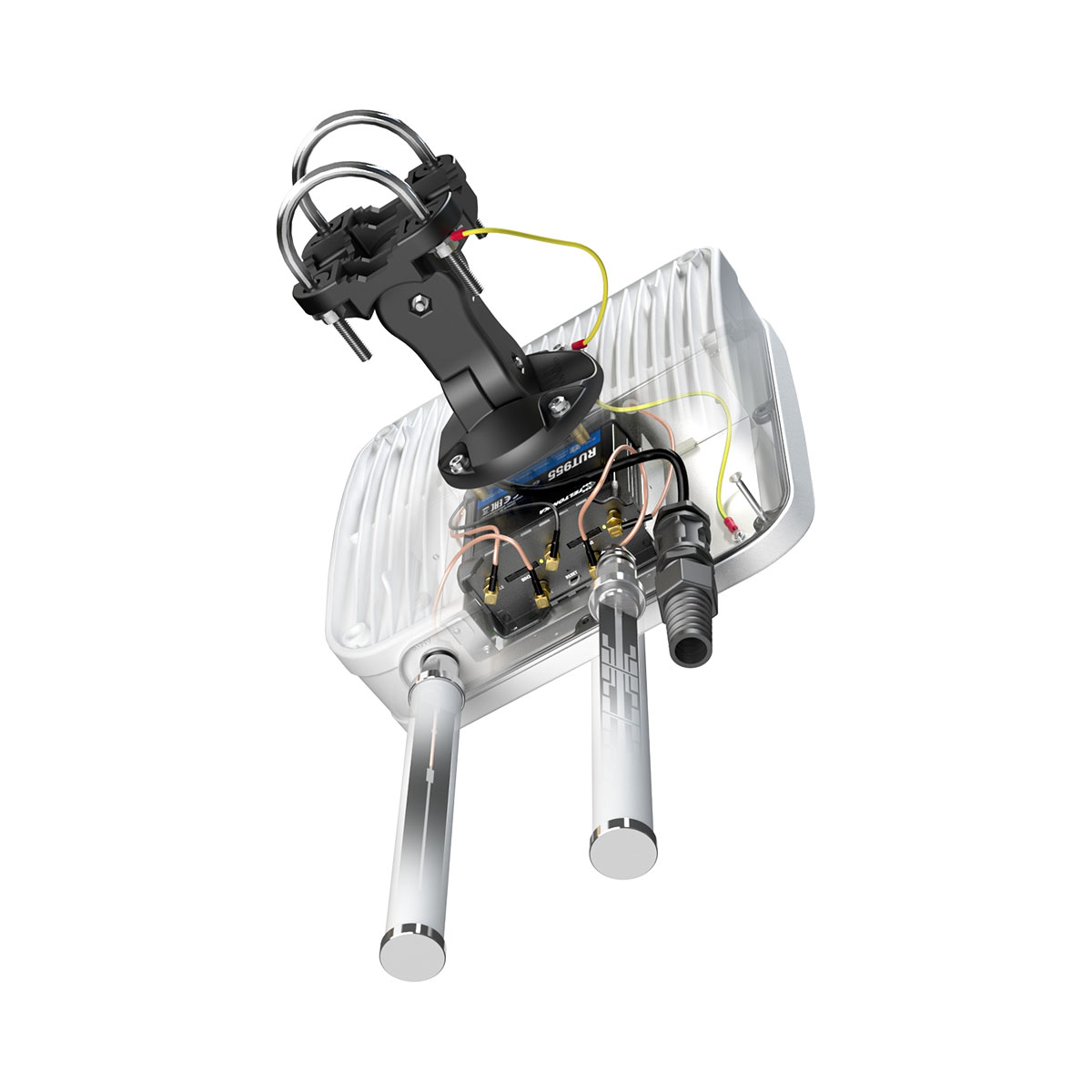

QuWireless A955M QuMax Antenna for Teltonika RUT956 / RUT955 / RUT906
Κωδικός προϊόντος:
A955M
178,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
143,55 €
Άμεσα διαθέσιμο
QuWireless A955M QuMax Antenna for Teltonika RUT956 / RUT955 / RUT906
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Integrated outdoor multi-band high power LTE directional antenna + outdoor Wi-Fi omni antenna + GPS antenna + place to install Teltonika RUT956, RUT955 ot RUT906 (All in-one)
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT956, RUT955 or RUT906 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna and outdoor Wi-Fi omni antennas.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
Χαρακτηριστικά
| Specifications | |
| LTE Antenna | |
| Frequency | 694 - 960 MHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz |
| Supported LTE/5G Bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| Gain | 694 - 960 MHz : 4 dBi 1.7 - 2.2 GHz : 5 dBi 2.2 - 2.7 GHz : 6 dBi |
| Front-ToBack | >8 dB |
| VSWR | <1.30, max <1.80 |
| Beamwidth | 90°/90° ±30° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Wi-Fi Antenna Specification | |
| Frequency | 2.4 - 2.5 GHz |
| Gain | 6 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Connector | 2 x PRSMA |
| Impedance | 50 Ω |
| Cable type | RG316 |
| GPS Active Antenna Specification | |
| Frequency | 1.56 - 1.61 GHz |
| VSWR | <2 |
| Gain | 3 dBi |
| DC Power Input | 2.5 V - 6.5 V |
| Power Consumption | 2.5 - 6.5 mA |
| Impedance | 50Ω |
| Polarization | RCHP (right hand circularly polarized) |
| Connector | 1 x SMA |
| Cable type | RG174 |
| Mechanical Specification | |
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Connector type | RJ45 + 2xNf + 2xNm in external omni wi-fi antenna |
| Ingress | IP67 |
| Dimensions | 272 x 276 x 96 mm |
| Weight | 1.8 kg |
| Operating Temperature | From -40°C to 80°C |
| Mast Diameter | 25-60 mm |
