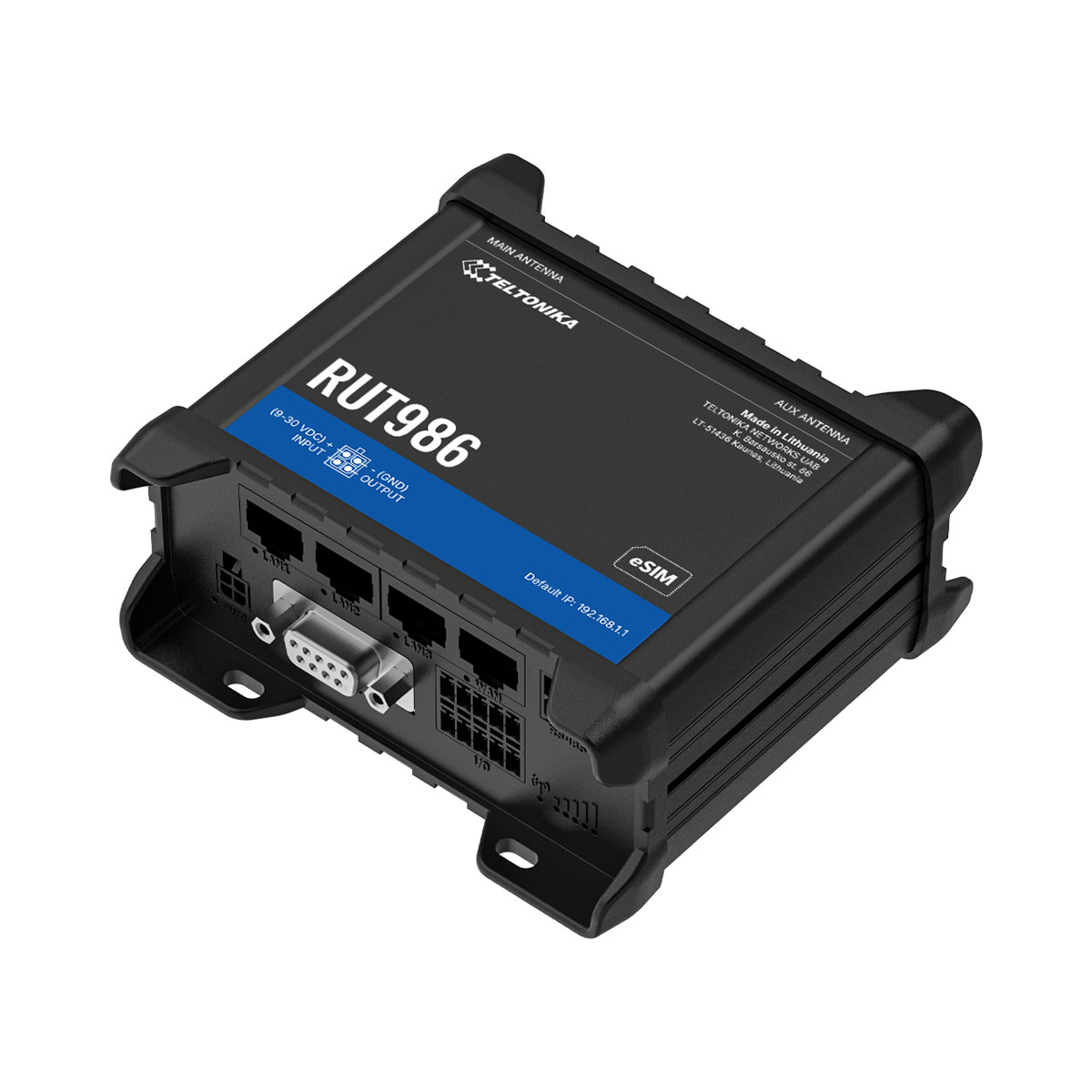

Teltonika RUT986 Industrial Global LTE Cat4 Router , ESIM
Κάθε συσκευή της Teltonika έρχεται με 1 μήνα δωρεάν RMS άδειας
Deploy reliable 4G for industrial and smart infrastructure at scale. The RUT986 is a global LTE router that pairs a trusted Telit Cat 4 modem with the proven hardware platform for dependable long-term availability. Integrate equipment via 4 x Ethernet, RS232, RS485, GNSS, and multiple I/Os, and industrial protocol support, including Modbus, DNP3, and OPC UA. Ensure always-on connectivity with SIM and eSIM, and use eSIM bootstrap for initial profile download. The RUT986 is ideal for demanding industrial deployments, offering zero-touch deployment and centralised management via RMS.
| Specifications | |
| Hardware | |
| Mobile | 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Kbps |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| Storage | 32 MB, NOR Flash |
| Powering options | 4-pin industrial DC power socket, 9 - 30 VDC |
| eSIM | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM |
| Antenna connectors | 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps: 1 x WAN (configurable as LAN), 1 x LAN |
| Wi-Fi | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Inputs/Outputs | 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V; with 4-20 mA capability), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high), 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector) |
| Serial | RS232, RS485 |
| Status LEDs | 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
| Operating temperature | -40 °C to 65 °C |
| Housing | Aluminum housing, plastic panels |
| Dimensions (W x H x D) | 110 x 50 x 100 mm |
| Weight | 294 g |
| Software | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | SIM switch, Status, SMS, USSD, Block/Allow list, Multiple PDN, Band management, SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough |
| Wireless features | Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless QR code generator, TravelMate |
| Network features | Routing, Network protocols, VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, Hotspot, Hotspot 2.0, SSHFS, VRF support, Traffic Management, Port Mirroring |
| Security | Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, Certificate Manager, 802.1x |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, EoIP, OpenConnect |
| Monitoring and Management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Cloud solutions | RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core |
| Services | BacNET, OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS/COSEM |
| Location Tracking | GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing |
