Κάθε συσκευή της Teltonika έρχεται με 1 μήνα δωρεάν RMS άδειας
Νέο μοντέλο, με 2 έτη πλήρη εργοστασιακή εγγύηση!

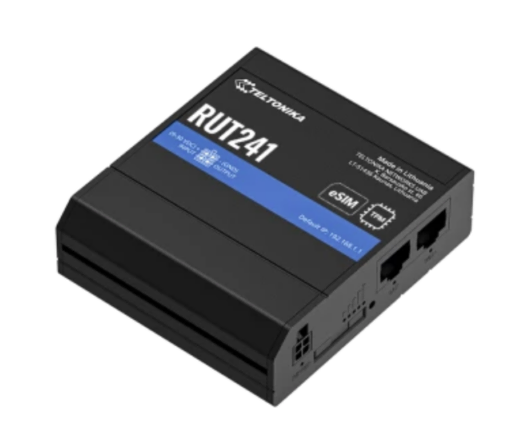

The RUT241 eSIM™ is an industrial cellular router equipped with LTE Cat 4 and eSIM™ with SGP.22 pull-based consumer architecture. This compact eSIM™ router supports a physical SIM card, up to seven eSIM™ profiles, controlled via WebUI and RMS, and Trusted Platform Module (TPM) for enhanced security. The RUT241 eSIM™ router provides undisrupted connectivity with automatic WAN failover and two Ethernet ports, making it perfect for your M2M and IoT solutions.
| Specifications | |
| Hardware | |
| Mobile | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| Storage | 16 MB Flash |
| RAM | 128 MB, DDR2 |
| Powering option | 4pin power socket, 9-30 VDC |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder |
| eSIM™ | Consumer type eSIM™, profile download and removal operations, up to 7 eSIM™ profiles |
| TPM | Identification and authentication module, TPM 2.0 standard |
| Antenna connectors | 2 x SMA for mobile, 1 x RP-SMA for WiFi antenna connectors |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| WiFi | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| Inputs/Outputs | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Status LEDs | 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminum housing, plastic panels |
| Dimensions (W x H x D) | 83 x 25 x 74 mm |
| Weight | 130 g |
| SOFTWARE | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | eSIM, Status, SMS, USSD, Black/White list, Multiple PDN, Band management, SIM idle protection service, APN, Bridge, Passthrough |
| Network features | VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DDNS, DNS over HTTPS, Network backup, Load balancing, SSHFS |
| Security | Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, TPM, SSL certificate generation |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Monitoring and Management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Cloud solutions | RMS, Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub |
| Services | OPC UA, Modbus, Data to Server, Modbus MQTT Gateway, DNP3, DLMS, API |
| Package Contents | • Router RUT241 • 9 W PSU • 2x Mobile antennas (swivel, SMA male) • 1x Wi-Fi antenna (swivel, RP-SMA male) • Ethernet cable (1.5 m) • SIM Adapter kit • QSG (Quick Start Guide) • Packaging box |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
