Ubiquiti UA-INTERCOM-VIEWER-3 UniFi Access Intercom Viewer, 3 Pack
Κωδικός προϊόντος:
UA-INTERCOM-VIEWER-3
550,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
443,55 €
Άμεσα διαθέσιμο
Ubiquiti UA-INTERCOM-VIEWER-3 UniFi Access Intercom Viewer, 3 Pack
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

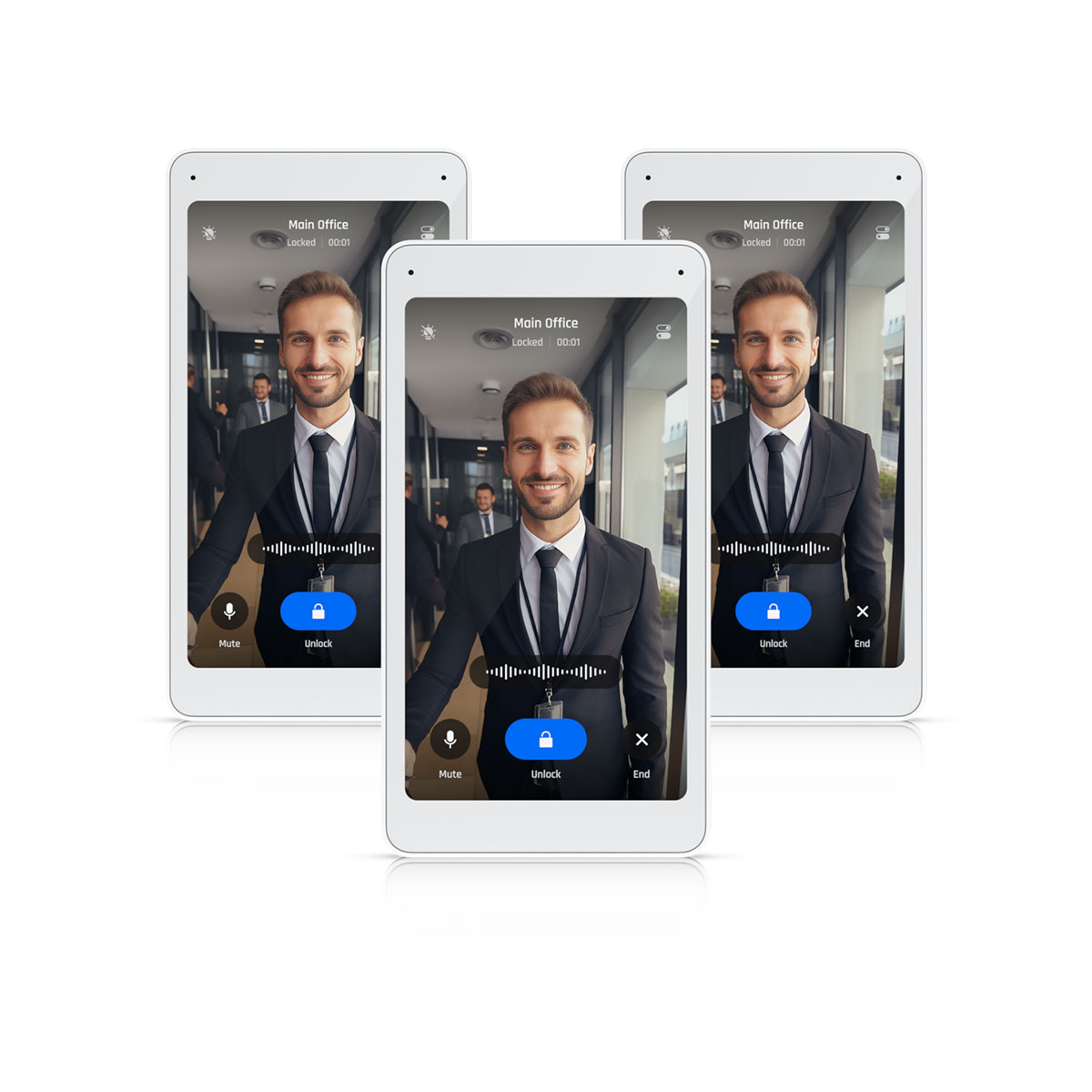

The professional indoor and very elegant video intercom unit from the UniFi Access series from Ubiquiti Networks is equipped with a 5" touch screen b> and two-way audio for access control within residential houses and commercial buildings. The intercom display communicates with other elements using a 802.3af PoE support, allows a live preview of what is happening at the input with the option to enable access on its touch screen.
Key Features
- Home intercom for visitor control and remote access
- Support live view from outdoor intercom
- 5" touch screen
- Resolution 720 x 1280 px (9:16 aspect ratio)
- Brightness 300 nits
- Two-way audio
- Communication via Ethernet - 10/100 Mbps
- Power supply via PoE, max. consumption 5 W
- Mounting on a box or wall
- Access with UniFi Access application 1.22.17+

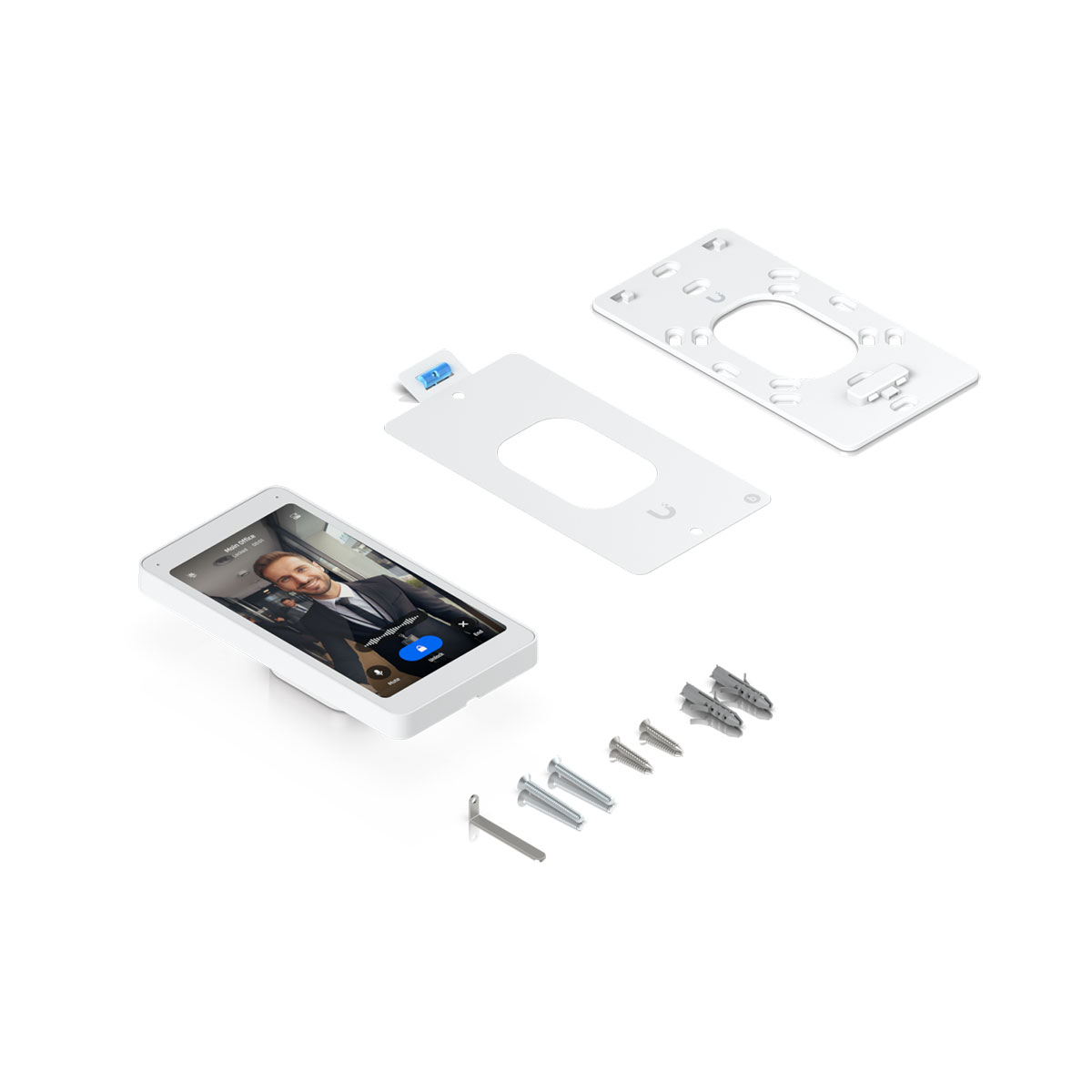

Package contents
- (3) Equipment
- (3) Installation bar
- (3) Screws and dowels
Χαρακτηριστικά
| Specifications | |
| Mechanical | |

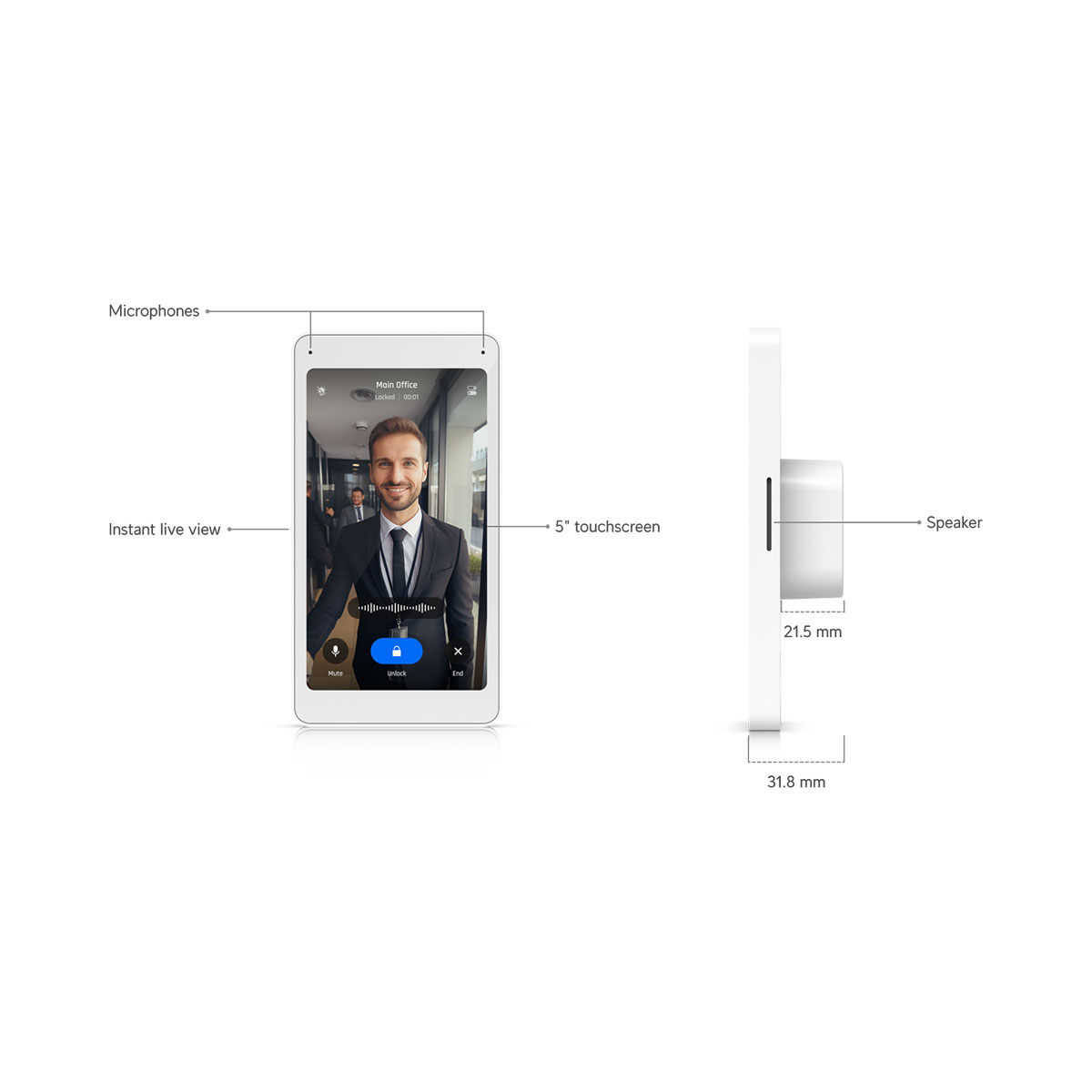

| Dimensions | 135 x 185 x 32 mm |
| Mobile Unlock | ✓ |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Mechanical | |
| Weight | 168 g |
| Enclosure Material | Glass, polycarbonate |
| Mount Material | Aluminum alloy |
| Mounting | Wall (Included) Gang box mount (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Indoor only |
| Networking Interface | (1) 10/100 Mbps RJ45 port |
| Connectivity | Ethernet |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 44—57V DC |
| Display | Size - 127 mm (5") diagonal Luminance - 300 nits (Typical) Screen Orientation - Portrait Resolution - 1280 x 720 px |
| Microphone | ✓ |
| Speaker | ✓ |
| Buttons | (1) Factory-reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Intercom-Viewer, V01 |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Management application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
