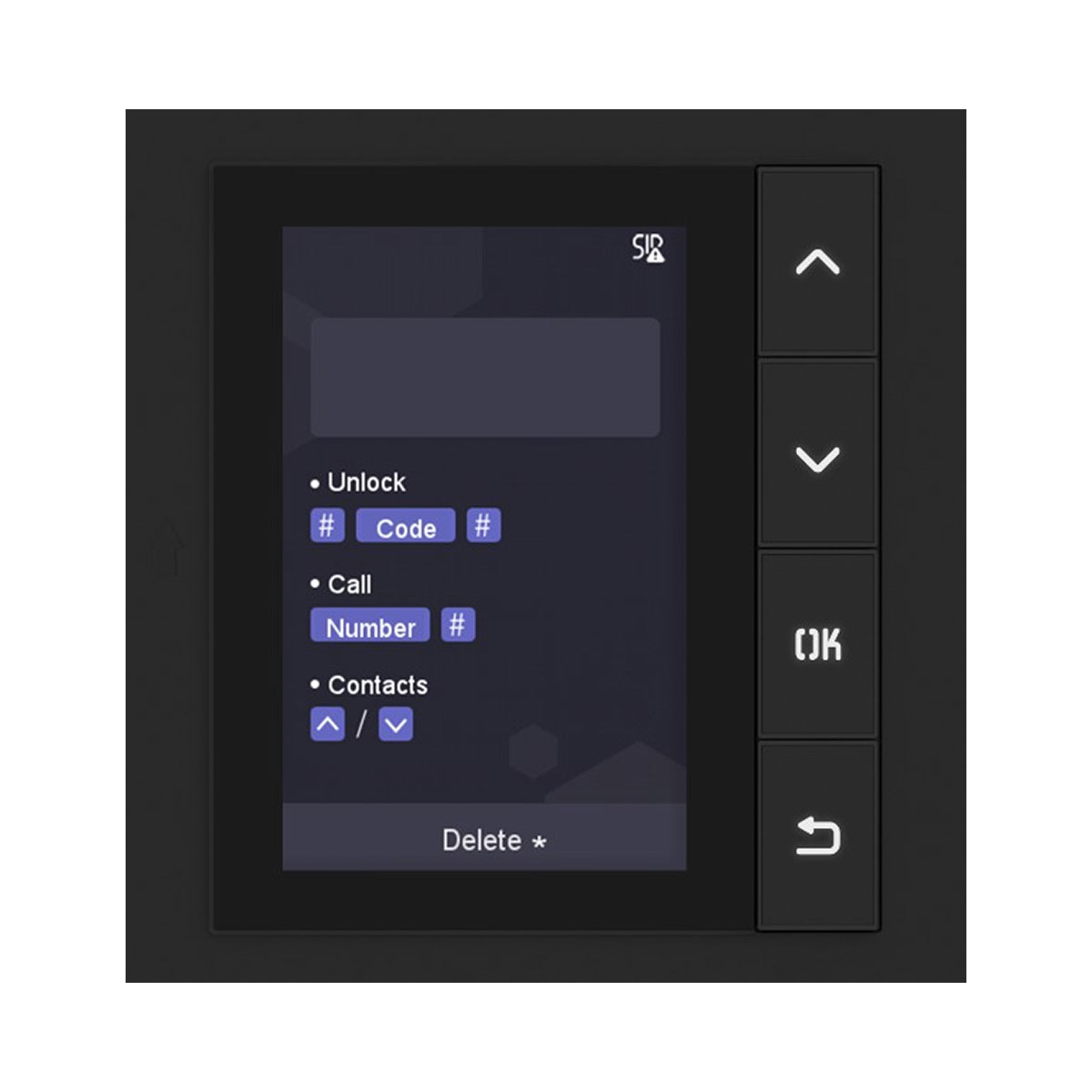

Hikvision DS-KD-DIS Video Intercom Display Module
Κωδικός προϊόντος:
DS-KD-DIS
Άμεσα διαθέσιμο
Hikvision DS-KD-DIS Video Intercom Display Module
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
• 3.5-inch LCD screen with resolution: 320 x 480p
• 4 physical buttons with backlight
• Up to 500 contacts can be added to the device
• Dials number and calls indoor station with keypad module
• Unlocks door by PIN code with keypad module
• Multiple languages
Χαρακτηριστικά
| Specifications | |
| Processor | Embedded MCU Processor |
| Storage | 64 MB |
| Flash | 8 MB |
| Screen | 3.5-inch TFT LCD screen |
| Resolution | 320 x 480p |
| Backlight | Supported |
| Operation method | Physical buttons |
| Module-connecting | 2 (1 input, 1 output) |
| Power input | 12VDC (From the other module) |
| Power output | 12VDC (For the other module) |
| Physical buttons | 4 (Up, Down, OK, Back) |
| Debugging port | 1 |
| Power consumption | ≤ 3 W |
| Working temperature | -20° C to +60° C (-4° F to 140° F) |
| Working humidity | 10% to 95% |
| IP protection level | IP65 |
| Installation | Flush mounting, surface mounting |
| Dimension | 98.5 mm x 100 mm x 34.2 mm |
Note: Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.
