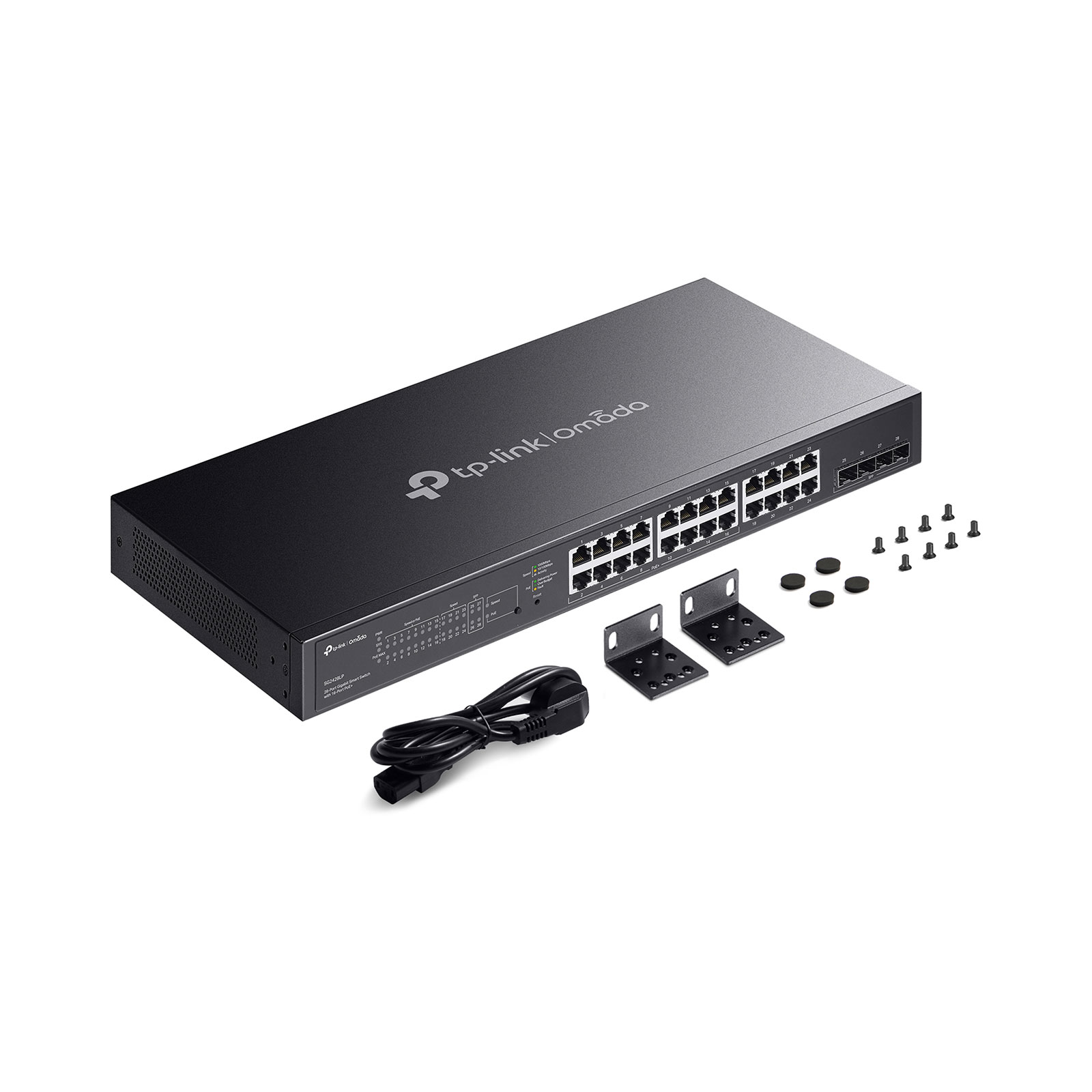

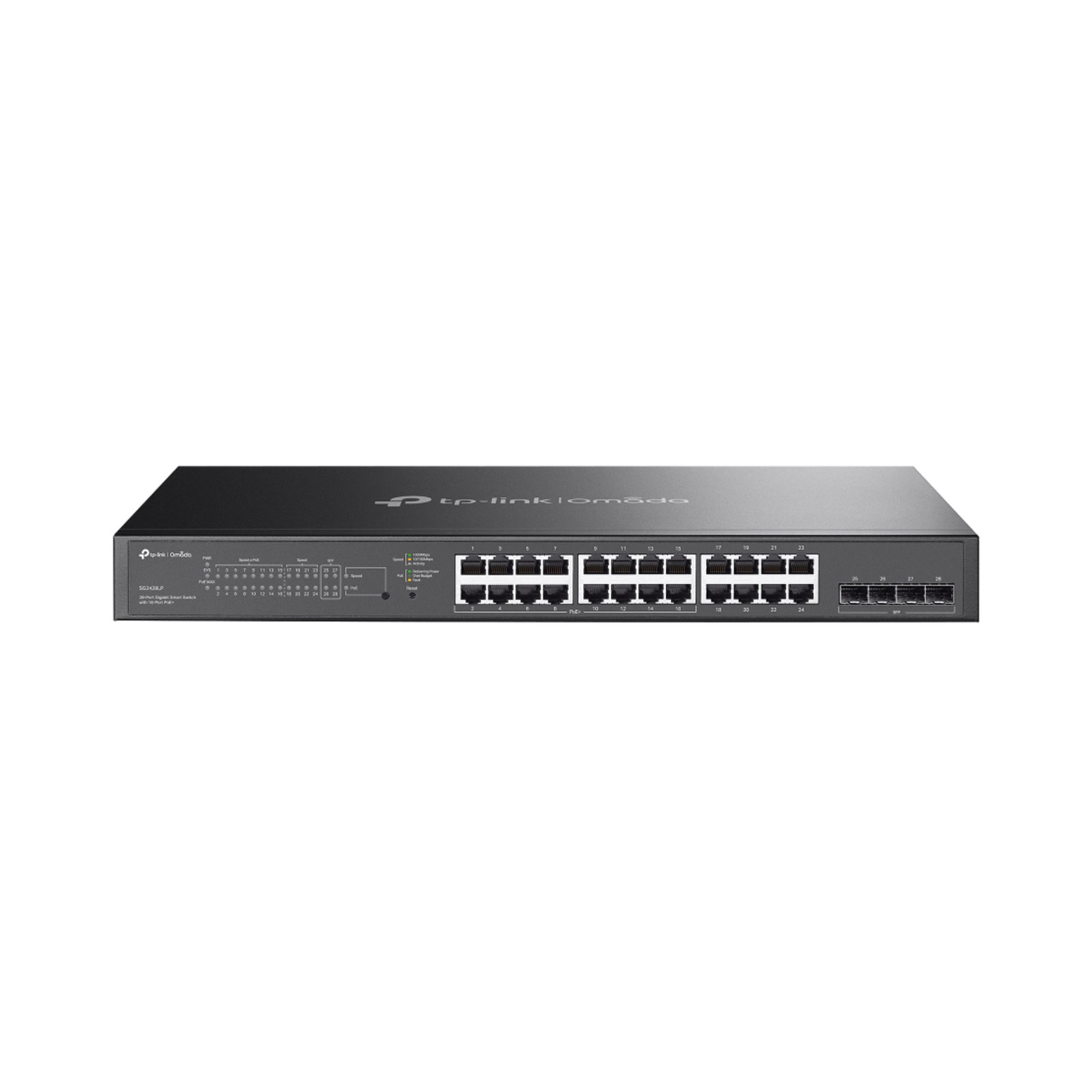

TP-LINK SG2428LP V1.2 Omada 28-Port Gigabit Smart Switch With 16-Port PoE+
Κωδικός προϊόντος:
SG2428LP
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

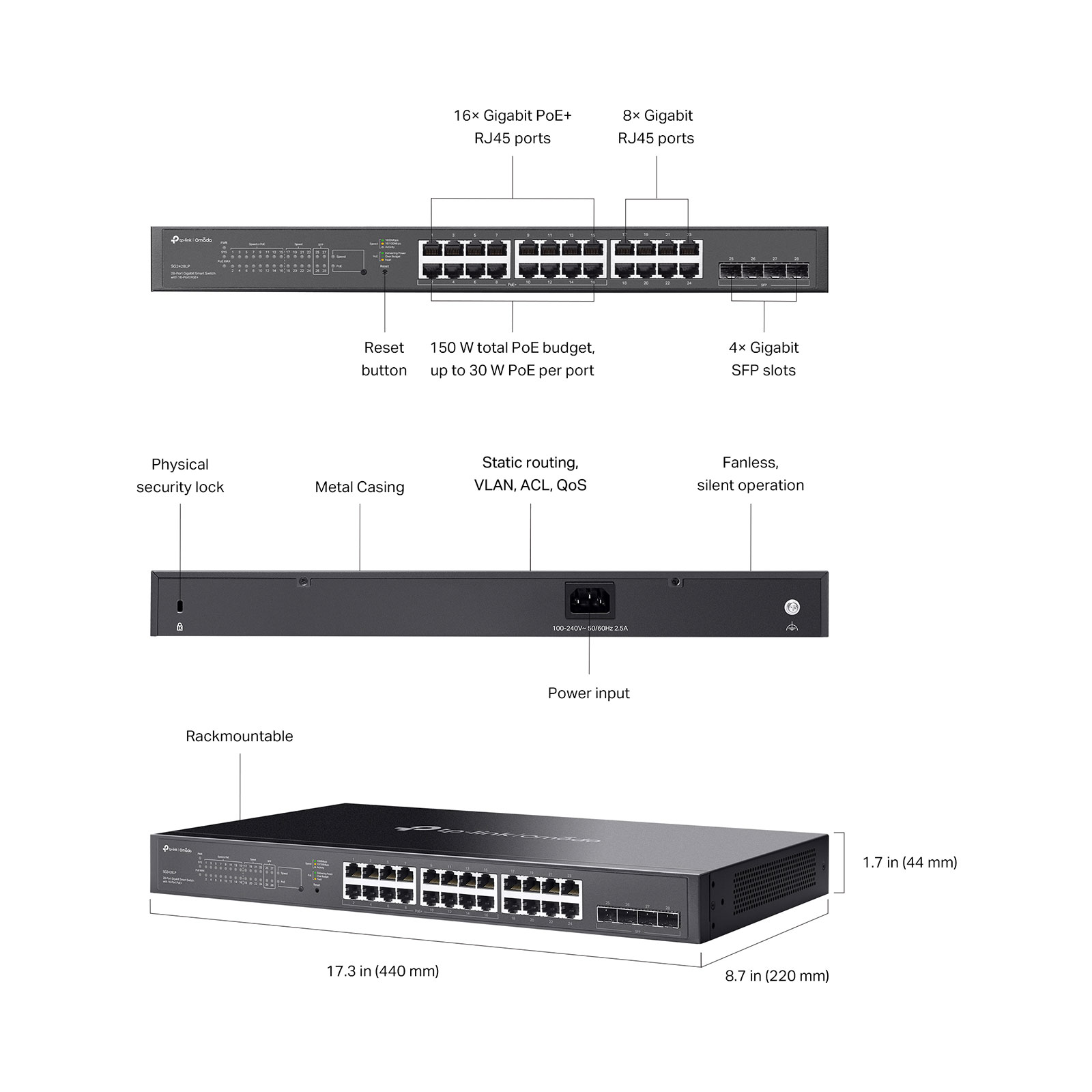

| • 16× Gigabit 802.3af/at PoE+ ports • 8× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots • 150 W total PoE budget with up to 30 W PoE output per port* • Centralized cloud management via the web or the Omada app† • Standalone management via web, CLI, SNMP, and RMON • Static Routing helps route internal traffic for higher efficiency • VLAN, ACL, QoS, and IGMP Snooping • Fanless design for quiet operation • Durable metal casing and rackmountable design |
Omada Solution
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface
* Centralized cloud management functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
†PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client
limitations and environmental factors.
Χαρακτηριστικά
| HARDWARE FEATURES | |
| GENERAL | |
| Interface | 24 10/100/1000Mbps RJ45 ports 4 Gigabit SFP Slots |
| Flash | 32 MB |
| DRAM | 256 MB |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-X Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber) |
| PoE | |
| PoE Standard | 802.3af/at |
| PoE Ports | 16, up to 30W per port |
| PoE Power Budget | 150 W |
| PoE Pinout | Alternative A, 1/2(-) & 3/6(+) |
| Perpetual PoE | YES |
| Fast PoE | YES |
| PoE Extend Mode | YES |
| PERFORMANCE | |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 Mbit |
| Number of IP Interfaces | 32 |
| Transmission Method | Store and Forward |
| Number of Static Routers | 32 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| PHYSICAL & ENVIRONMENT | |
| Fan Quantity | Fanless |
| Installation | Rack Mountable |
| Power Supply | 100-240V AC, 50/60Hz |
| Max Power Consumption | 184.5 W (220 V/50 Hz @ 25 °C) (with 150 W PD connected) 188.8 W (110 V/60 Hz @ 25 °C) (with 150 W PD connected) |
| Max Heat Dissipation | 627.23 BTU/hr (220 V/50 Hz @ 25 °C) (with 150 W PD connected) 641.92 BTU/hr (110 V/60 Hz @ 25 °C) (with 150 W PD connected) |
| Standby Power Consumption | 8.3 W (220 V/50 Hz) 8.8 W (110 V/60 Hz) |
| Surge Protection | Service port: ±6 kV in common mode |
| ESD Protection | Air: ±8 kV, Contact: ±4 kV |
| MTBF | 436912 h @ 25 °C |
| Dimensions(WxDxH) | 440 x 220 x 44 mm |
| Net Weight | 3.2 kg |
| Certification | CE, FCC |
| Operating Temperature | -5 ̊C to 45 ̊C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
