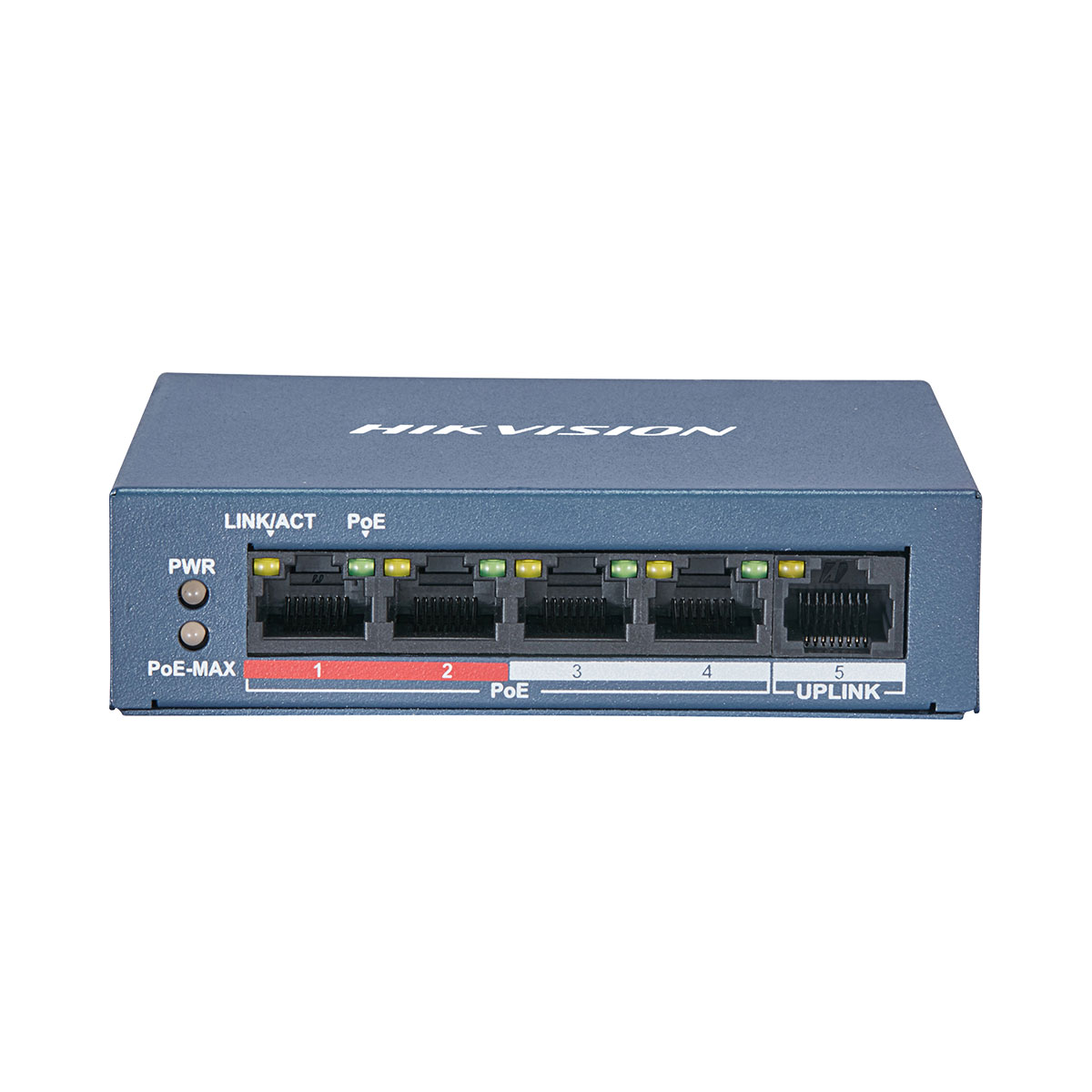

Hikvision DS-3E0105P-E/M(B) 4 Port Fast Ethernet Unmanaged POE Switch
Κωδικός προϊόντος:
DS-3E0105P-E/M(B)
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
• Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
• Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Χαρακτηριστικά
| Specifications | |
| Network parameters | |
| Port number | 4 x 100 Mbps PoE ports, 1 x 100 Mbps Ethernet port |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default); Extend mode |
| High priority ports | Ports 1 to 2 |
| Ports for long-distance transmission | Ports 1 to 4 |
| MAC address table | 1 K |
| Switching capacity | 1 Gbps |
| Packet forwarding rate | 0.744 Mpps |
| Internal cache | 448 Kbits |
| PoE power supply | |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply |
| PoE port | Ports 1 to 4 |
| Max. port power | 30 W |
| PoE power budget | 35 W |
| Max. power consumption | 38 W |
| General | |
| Shell | Metal material, fan-free design |
| Gross weight | 0.48 kg |
| Net weight | 0.2 kg |
| Dimension (LxHxD) | 105 mm x 27.6 mm x 83.1 mm |
| Operating temperature | -10 °C to 55 °C |
| Storage temperature | -40 °C to 85 °C |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 48 VDC, 0.8 A |
| Power consumption in idle | 3 W |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
