Ubiquiti UVC-G6-PRO-ENTRY, UniFi Protect/Access Entry Terminal, Black
Ubiquiti UVC-G6-PRO-ENTRY, UniFi Protect/Access Entry Terminal, Black
Elegance and intelligence in one – high-quality 12 Mpx camera with a 100° field of view ensures detailed images at every ring, and with the additional camera, you can see packages or items near the door. Thanks to two-way audio communication with a microphone and speaker, you can talk to visitors from anywhere through the UniFi Protect app, while the built-in NFC reader, Apple Wallet, and Google Wallet expand the options for visitor authentication.
Durability and easy installation
Robust construction with IP55 rating and IK07 resistance to tampering can handle outdoor conditions from -30 °C to +50 °C and works reliably in various situations. PoE power supply ensures stable operation without the need for additional cables, and simple wall or gangbox mounting allows for quick setup, including color LED status indicators. There is also a 3" touch display with a resolution of 480 x 854 px.
Smart features for a modern home
With support for Bluetooth and NFC, access is intuitive and compatible with modern devices, while integration with the UniFi Protect system gives full control over security and recordings – the ideal solution for a smart doorbell with a camera that combines safety, convenience, and intelligence into one device.
Key features
- High-quality 12 Mpx camera with a 100° field of view
- Max resolution 2160 x 3840 px, illumination range 5 m
- Two-way audio communication with a microphone and speaker
- NFC, Apple Wallet, and Google Wallet support for authentication
- Durable construction with IP55 and IK07 rating for outdoor use
- PoE power supply for stable operation without additional cables
- Color LED status indicators
- 3" touch display with a resolution of 480 x 854 px
- Bluetooth 4.1 support and integration with UniFi Protect/Access system
- Easy wall or standard box mounting
| Specifications | |
| Overview | |

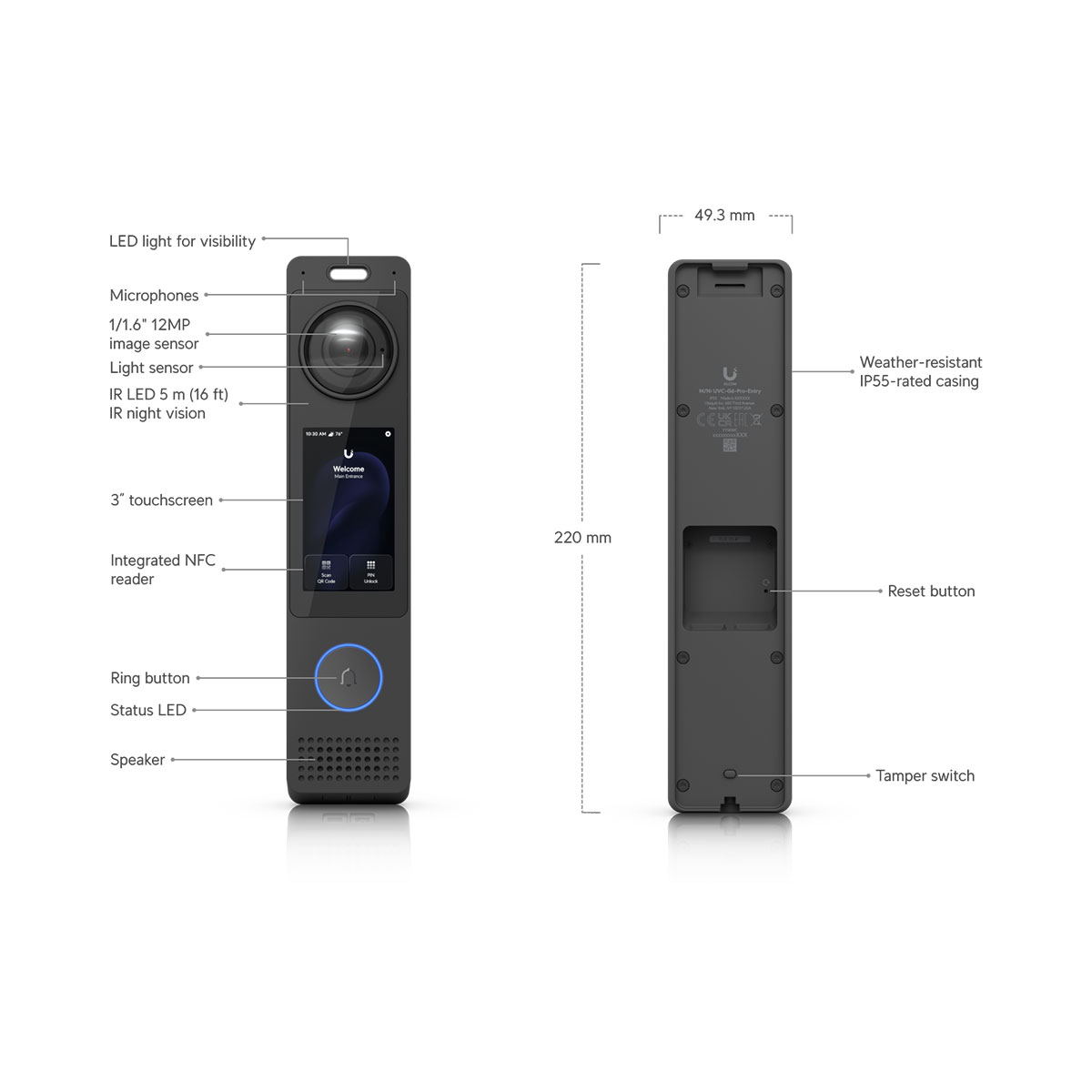

| Dimensions | 220 x 49.3 x 29.6 mm |
| Integrated Camera | ✓ |
| IR Night Vision | 5 m |
| Resolution | Main camera: 12MP Package camera: 8MP |
| UniFi Application Suite |
Protect Access: |
| Face Recognition | ✓ |
| NFC Card & Keyfob Access | ✓ 🛈Requires UniFi Access Hub / Hub Mini for NFC functionality |
| PIN Access | ✓ |
| Apple/Google Wallet | ✓ 🛈Apple MFi Certification pending. |
| Mobile Unlock | ✓ |
| Two-Way Intercom & Doorbell Access | ✓ |
| Weatherproofing | IP55 |
| Smart Detections (People, Vehicles, Animals) | ✓ |
| Tamper Resistance | IK07 LCM IK04 |
| Audio | Two-way audio 🛈With noise cancellation / Beam forming |
| NDAA Compliant | ✓ |
| Mechanical | |
| Weight | 360 g |
| Enclosure material | Aluminum |
| Mount Material | Wall mount: Stainless steel Gangbox mount plate: SGCC steel Gangbox mount cover: Polycarbonate Wedge mount: Aluminum |
| Mounting | Wall mount, Gangbox mount plate, 20° wedge mount (Included) Junction box (Optional) |
| Hardware | |
| Networking Interface | GbE RJ45 port |
| Connectivity | BLE 4.1 NFC 🛈 Requires UniFi Access Hub / Hub Mini for NFC functionality. |
| Power Method | PoE+ |
| Max. Power Consumption | 18W |
| Supported Voltage Range | 42—57V DC |
| Video |
Image Settings - Max.Frame Rate - |
| Optics |
Resolution - Field of View - Sensor - Lens - Night Mode - |
| Display |
Size - 75 mm (3") diagonal Screen Technology - Capacitive multi-touch Luminance - Max. 1000 nits (Typical) Screen Orientation - Portrait Resolution - 480 x 854 px |
| LEDs | R/G/B/W/Amber |
| Button | (1) Ring button (1) Factory reset (1) Tamper switch |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | Device: -30 to 50° C Display: -25 to 50° C 🛈The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional |
| Ambient Operating Humidity | 5 to 90% noncondensing |
