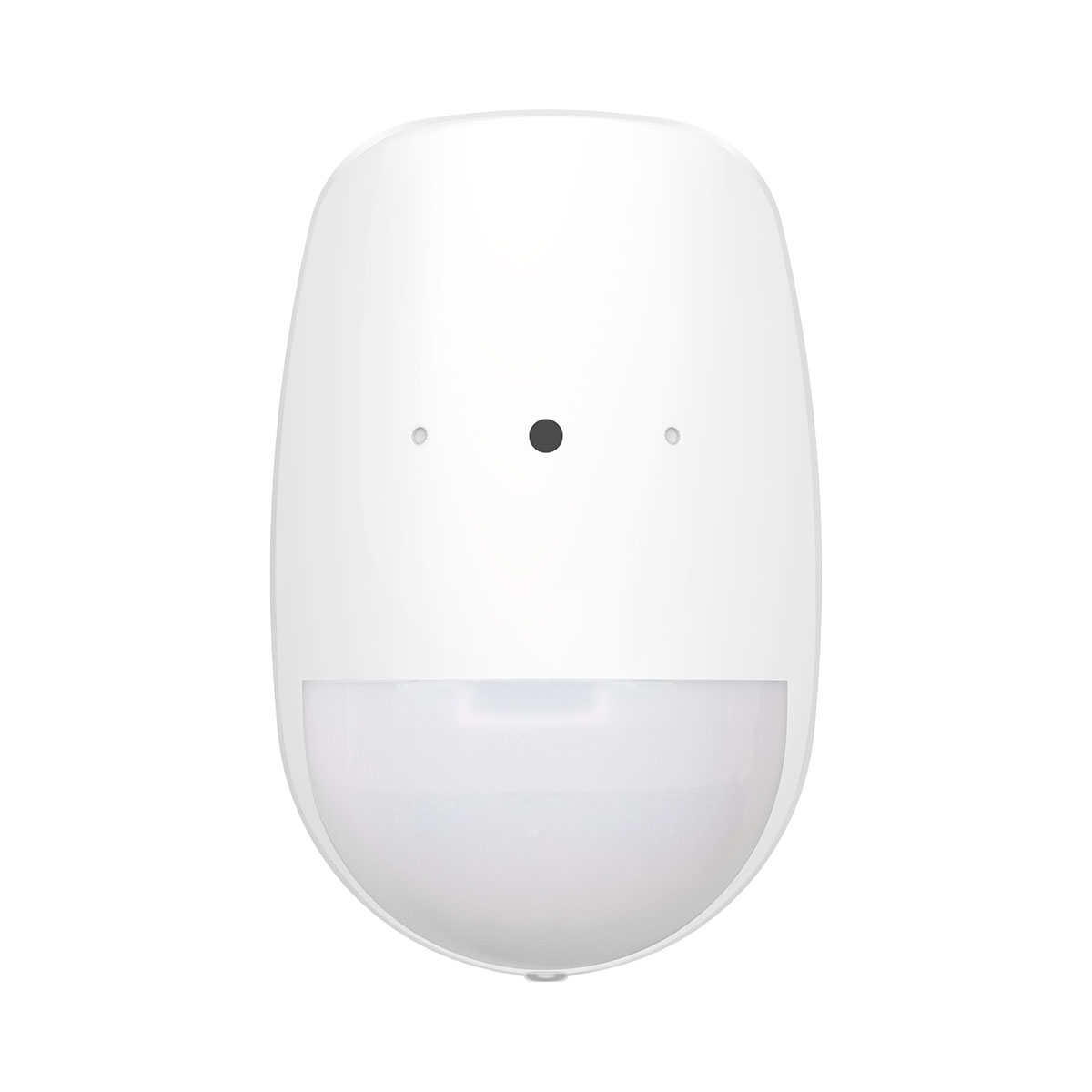

Hikvision DS-PDPG12P-EG2, AX Hybrid Pro Wired Pir-Glass Break Detector
Κωδικός προϊόντος:
DS-PDPG12P-EG2
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Wired PIR-Glass Break Detector
• PIR Detection Range: 12m / 85.9°
• Glass Break Range: 8m / 120°
• Up to 30KG pet immunity
• Selectable EOL resistors
• 9-16 VDC wide voltage adaptation with polarity reverse connection protection
Χαρακτηριστικά
| Specification | |
| Detection performance | |
| Detection Method | Passive Infrared;Acoustic Sensor |
| Detection Range | 12m |
| Detection Angle | 85.9° |
| Detection Zones | 52 |
| Detectable Speed | 0.3～2m/s |
| Pet Immunity | 30Kg |
| PIR Sensitivity | Auto,Pet |
| White Light Filter | 6500lux |
| Glass Break Range | 8m |
| Glass Type | Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing |
| Glass Break Sensitivity | Potentiometer Adjustment |
| Glass Thickness | 2.4mm to 6.4mm |
| Digital Temperature Compensation | Support |
| Glass Size | 0.3m x 0.3m to 3m x 3m |
| Creep Zone Protection | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front |
| Interface | |
| Alarm Output | Normally Closed |
| LED Indicator | Green(PIR),Red(BG),Blue(alarm) |
| Transmission | |
| Transmission Method | Wired |
| Electrical Characteristics | |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12 VDC |
| Power Consumption | Maximum current：26mA @12VDC Quiescent current：36mA@12VDC |
| General | |
| Operation Temperature | -10 °C to 55 °C |
| Storage Temperature | -20 °C to 60 °C |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 65.5mm×103mm×48.5mm |
| Weight | 98.5g |
| Mounting Height | 1.8 to 2.4m |
| Mounting Method | Wall |
| Application Scenario | Indoor |

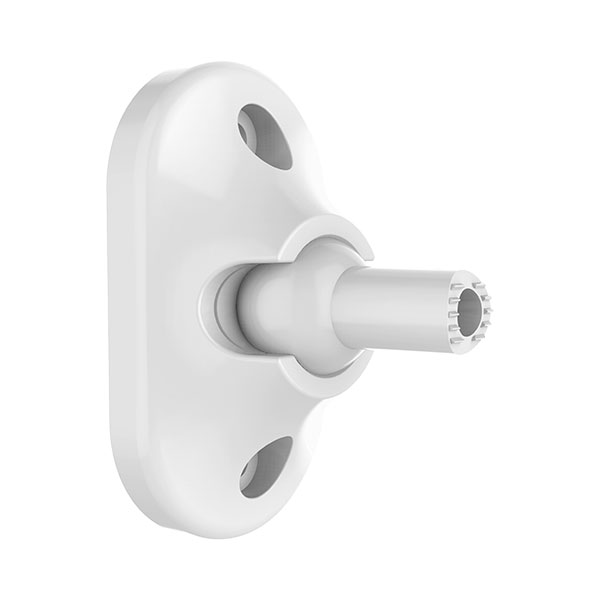

| Bracket | Optional Wall & Ceiling Accessory |
