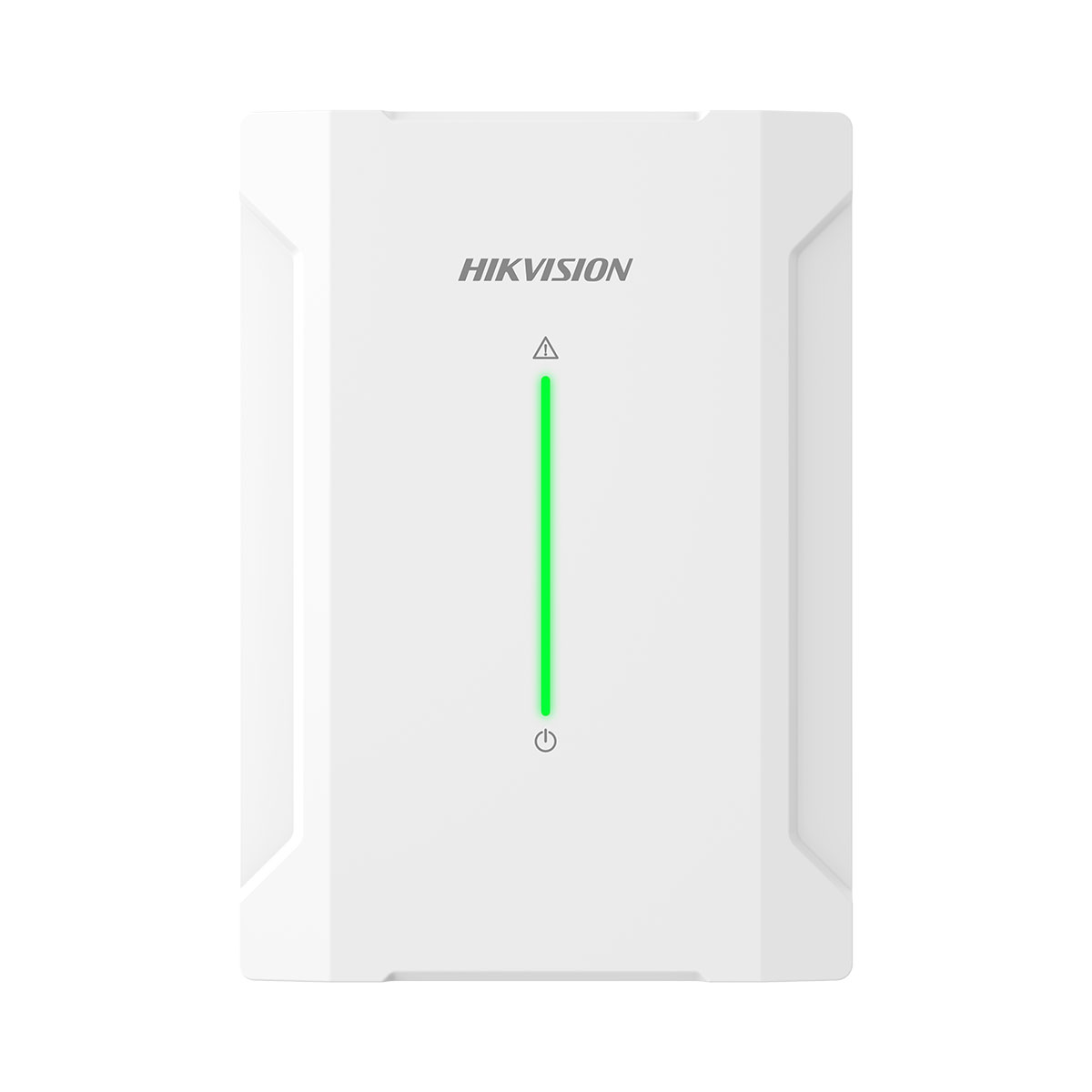

Hikvision DS-PR501-HWE, AX Hybrid Pro Bus Tri-X Receiver (868Mhz)
Κωδικός προϊόντος:
DS-PR501-HWE
Άμεσα διαθέσιμο
Hikvision DS-PR501-HWE, AX Hybrid Pro Bus Tri-X Receiver (868Mhz)
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Bus Tri-X Receiver（868MHz）
• Seamless integration of Tri-X wireless devices via bus
• Stable and encrypted 868 MHz RF communication with frequency hopping
• Reliable wireless coverage for extended installation flexibility
• Built-in bus extender for extended bus range
• Seamless integration of Tri-X wireless devices via bus
• Stable and encrypted 868 MHz RF communication with frequency hopping
• Reliable wireless coverage for extended installation flexibility
• Built-in bus extender for extended bus range
Χαρακτηριστικά
| Specification | |
| Peripherals | |
| Wireless detectors | 32 |
| Wireless sounders | 12 |
| Wireless keypad / tag readers | 8 |
| Wireless keyfob | 64 |
| Bus interconnection | |
| Bus-extender | Yes |
| Bus technology | Half-Duplex RS-485 |
| Bus wiring | 4-Core Alarm Cable (at least 2×0.5mm²+2×0.22mm²) |
| Wireless interconnection | |
| Frequency | 868.0-868.6 MHz |
| Wireless technology | Tri-X, 2-way encrypted wireless, radio frequency hopping |
| Transmission modulation | 2GFSK |
| Transmission range | 1600 m (open area) |
| Power supply - general | |
| Input voltage | 12 VDC nominal (9~16 VDC), powered by bus |
| Quiescent current | 90 mA @12VDC |
| Max. current | 150 mA @12VDC |
| Environmental | |
| Operating temperature | -10°C to 50°C, indoor use only |
| Storage temperature | -20°C to 60°C |
| Relative humidity | 10% ~ 90% non-condensing |
| Physical | |
| Dimension (W × H × D) | 110 × 155 × 31 mm |
| Weight | 208 g |
| Tamper-proof | Front and Rear |
| Installation method | Wall mount |
| Compliance | |
| Electrical conformity | CE, CB |
| EN 50131 | Security Grade 2, Environmental Class II |
