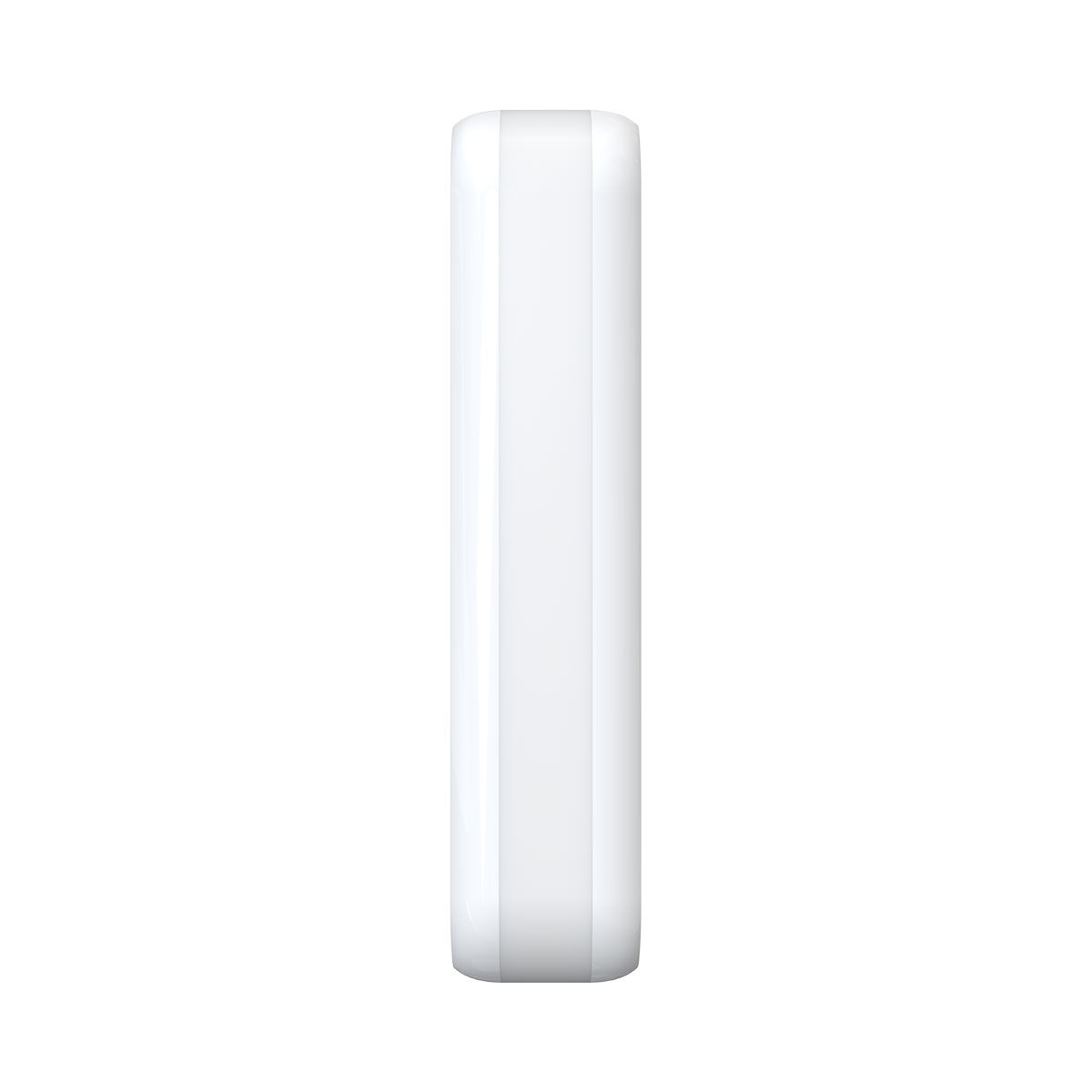

Hikvision DS-PDC10DM-VG3, AX Hybrid Pro Wired Dual-Tech AM Curtain Detector
Κωδικός προϊόντος:
DS-PDC10DM-VG3
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Wired Dual-Tech AM Curtain Detector
• Slim design for window frame installation
• IP65 weather resistance for outdoor application
• Active IR anti-masking
• Automatic sensitivity
• Selectable EOL resistors for alarm and tamper-proof wiring
• Directional detection support
Χαρακτηριστικά
| Specification | |
| Detection performance | |
| Detection Method | Passive Infrared;Microwave |
| Detection Range | Wall Mount：10m Ceiling Mount：6m |
| Detection Angle | 5° |
| Detection Zones | 32 |
| Detectable Speed | 0.2～3m/s |
| Sensitivity | Auto |
| White Light Filter | 6500lux |
| Microwave Frequency | 24GHz(24.15～24.25GHz) |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Anti-masking | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front;Rear |
| Directional Detection | Support |
| Interface | |
| Alarm Output | Normally Closed |
| LED Indicator | Green(PIR), Red(Microwave), Green+Orange(Mask), Blue(Alarm) |
| Transmission | |
| Transmission Method | Wired |
| Electrical Characteristics | |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12 VDC |
| Power Consumption | Maximum current：25mA@12VDC Quiescent current：16mA@12VDC |
| General | |
| Operation Temperature | -25 °C to 60 °C |
| Storage Temperature | -25 °C to 60 °C |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension(WxHxD) | 29.2mm × 134.4mm × 39.5mm |
| Weight | 79g |
| Mounting Height | 2 to 4m |
| Mounting Method | Wall;Ceiling |
| Application Scenario | Indoor,Outdoor |
| Bracket | L-shaped adapter included |
