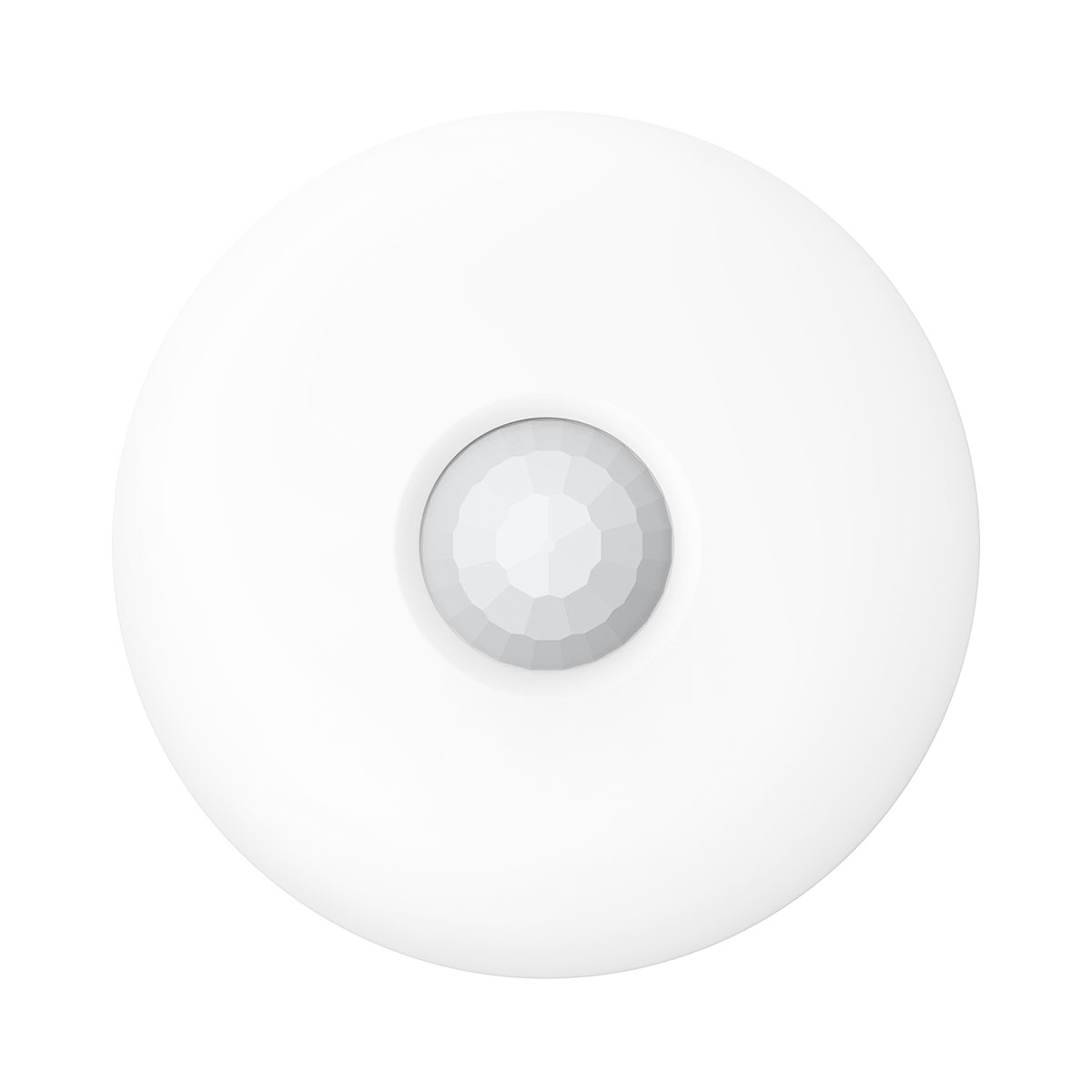

Hikvision DS-PDCL12DT-EG2, AX Hybrid Pro Wired Dual-Tech Ceiling Detector
Κωδικός προϊόντος:
DS-PDCL12DT-EG2
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
It is the ceiling dual-tech detector that uses our latest quad element sensor and 24GHz smart microwave technology,
which brings higher picking-up performance and lower false alarm rate in the field.
• Digital quad pyro sensor + 24GHz microwave
• Automatic sensitivity
• Wide voltage adaptation and on-board EoL resistor
Χαρακτηριστικά
| Specification | |
| Detection performance | |
| Detection Method | Passive Infrared;Microwave |
| Detection Range | 12m |
| Detection Angle | 360° |
| Detection Zones | 172 |
| Detectable Speed | 0.3～2m/s |
| Sensitivity | Auto;Low |
| White Light Filter | 6500lux |
| Microwave Frequency | 24GHz(24.15～24.25GHz) |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front |
| Interface | |
| LED Indicator | Green(PIR), Red(Microwave), Blue(Alarm), Orange(Fault) |
| Electrical Characteristics | |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12 VDC |
| General | |
| Operation Temperature | -10 °C to 55 °C |
| Storage Temperature | -20 °C to 60 °C |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | φ120 mm x 33.2 mm |
| Weight | 138g |
| Mounting Height | 2.4 to 4m |
| Mounting Method | Ceiling |
| Application Scenario | Indoor |
| Electrical characteristics | |
| Power consumption | 100mA Max |
