AJ-MCAM-PHOD-B

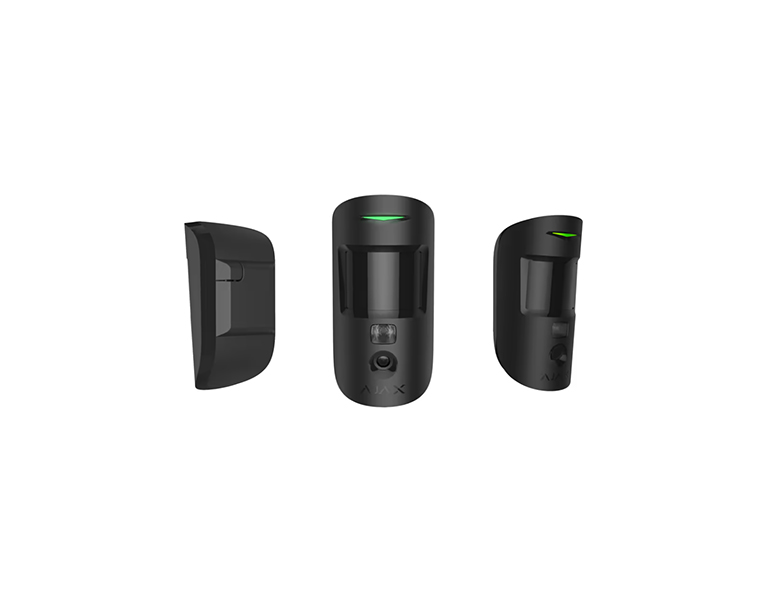

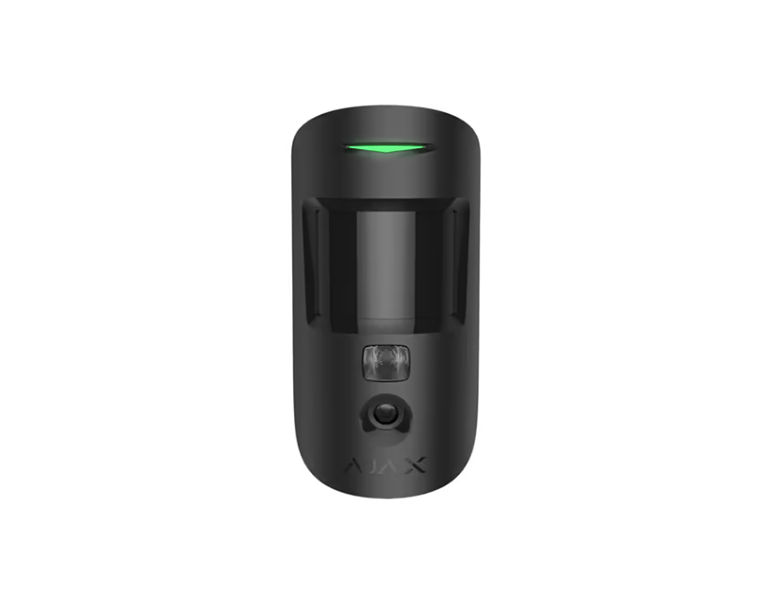

AJAX SYSTEMS AJ-MCAM-PHOD-B - MOTIONCAM BLACK (PhOD)

Product Code:
AJ-MCAM-PHOD-B
Manufacturer Ajax
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
AJAX SYSTEMS AJ-MCAM-PHOD-B - MOTIONCAM BLACK (PhOD)
• Adjustable image resolution
• Photo verification in 9 seconds
• Detection angles
• Pet immunity
• Hassle-free installation
• Data-rich notifications
• IR backlight
• Remote configuration and control
• Software filter for false alarms

Intellect against false alarms
They have combined special optics with a software filter for false alarms in motion detectors. Along with a professional installation, it gives high detection accuracy.

Special lens
The pattern of the Fresnel lens sections is designed so that the diagrams of the infrared radiation of a human, an animal, and thermal noise have significant differences. Large sections of the lens capture radiation at the level of the head and torso of an adult. Smaller sections make the diagram more detailed. The MotionCam lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement.

Professional installation
Installing the MotionCam in the right spot, at the optimum height, and perpendicular to the likely intrusion path ensures an informative thermal diagram. It significantly improves detection accuracy. Professional installation also makes the pet immunity feature more effective.

Filter for thermal interferences
The detector instantly analyzes the thermal diagram from the sensor: the infrared radiation intensity, the heat spot size, the motion speed, the time spent in the detection zone, and other parameters.
Ajax engineers have analyzed thousands of IR sensor triggerings caused by humans, animals, and thermal interference and developed SmartDetect. The software algorithm finds false alarm markers instantly and with high accuracy. As a result, the detector accurately responds to a human and does not bother the user with false alarms.

Temperature compensation
Temperature compensation is a software mechanism keeping the thermal diagram contrast even if the ambient temperature is close to the temperature of the human body. With each ambient temperature measurement, the detector corrects the PIR sensor data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range.

Sensitivity level
With the sensitivity setting, the detector adapts to the conditions of a particular room, considering possible thermal interference or pets. Changing the sensitivity setting affects the markers by which false alarms are filtered. With low sensitivity, the detector is less likely to respond even to an active pet. And with high sensitivity, it will raise the alarm in case of any motion in the detection zone. Sensitivity is configured in the Ajax app both on-site and remotely.

Peace of mind on demand
MotionCam (PhOD) needs only seconds to show the actual situation on the scene and dispel the user's doubts in case of an alarm. It takes a click in the Ajax app to take an on-demand photo. Also, the detector will automatically take a series of photos if it captures motion or when FireProtect 2 (Heat/Smoke) or FireProtect 2 (Heat/Smoke/CO) fire detector triggers.

Advantages of photo verification
Loved ones and valuables are under care
In case of any doubts, the system users can check what is happening on the spot. There is no need to wait for an alarm. Just open the app, select the detector, and see the situation at home in seconds.

Less false calls for fire brigades
According to statistics, almost half of fire alarms are false. Visual verification of fire alarms has already become a worldwide practice. MotionCam automatically takes the photos of the premice when the FireProtect 2 (Heat/Smoke) or FireProtect 2 (Heat/Smoke/CO) detectors trigger. The fire brigade monitoring station can receive the photos and assess the situation in seconds.

Less concern
Up to 70% of false alarms happen when disarming the security system. With MotionCam, system users and monitoring company operators can verify in seconds whether an alarm is real and respond accordingly.

More security
Both system users and a rapid response team need to clearly understand what happens on the scene in case of an alarm. MotionCam shows how many intruders are armed and whether they are still in the room. This will help a security company patrol prepare, and the users avoid danger.

Evidence in a smartphone
A series of animated photos provide the law enforcers with the description of intruders, no time wasted. MotionCam will capture them even in complete darkness, thanks to the IR backlight. The chances of catching burglars in the act increase.

Privacy as a top priority
MotionCam is designed to control security, not privacy. Photos are protected from prying eyes at the detector, system and software levels.

Intuitive installation and connection
Add the MotionCam detector to the Ajax security system with a few taps. Open the Ajax app, scan the QR code and assign the detector to the room. There is no need to disassemble the detector enclosure. SmartBracket mounting panel allows you to securely install the detector on a flat surface or in a corner.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.


Warranties - Returns:
Money Return: Repair - Replacement:
20 days 24 months



Technical Specifications
Compatibility
Compatible hub models Hub 2 (2G) / Hub 2 (4G) / Hub 2 Plus
Hub Hybrid (2G) / Hub Hybrid (4G)
Compatible range extenders ReX 2
Communication

Communication technology

Jeweller: Proprietary wireless communication technology to transmit alarms and events.
Wings: Proprietary wireless communication technology to transmit photo verifications.
Maximum effective radiated power (ERP)
(Jeweller)
up to 20 mW
Radio signal range
(Jeweller / Wings)
up to 1,700 m
Between detector and hub or range extender in an open space.
Encrypted communication
(Jeweller / Wings)
All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping
(Jeweller / Wings)
Radio communication uses frequency hopping to prevent interception and jamming.
Detection
Sensitive element 1 PIR sensor
Motion detection distance up to 12 m
When installed at a height of 2.4 m.
Motion detection angles horizontal — 88.5°
vertical — 80°
Motion detection speed from 0.3 to 2.0 m/s
Sensitivity
3 levels
Pet immunity weight: up to 20 kg
height: up to 50 cm
False alarm prevention
SmartDetect - Software algorithm
Temperature compensation Effective motion detection at temperatures from −10°C to +40°C.
Anti-sabotage protection • Tampering alarm
• Protection against spoofing
• Communication loss detection
Power supply 2 × CR123A battery, 3 V
(pre-installed)
Battery life
up to 4 years
with Photo on demand toggle disabled
up to 3 years
with Photo on demand toggle enabled
Enclosure
Dimensions 135 × 70 × 60 mm
Weight 167 g
Operating temperature range from −10°C to +40°C
Operating humidity up to 75%
Protection class IP50
Package contents
MotionCam (PhOD) Jeweller
SmartBracket mounting panel
Installation kit
2 × CR123A battery (pre-installed)
Quick Start Guide
