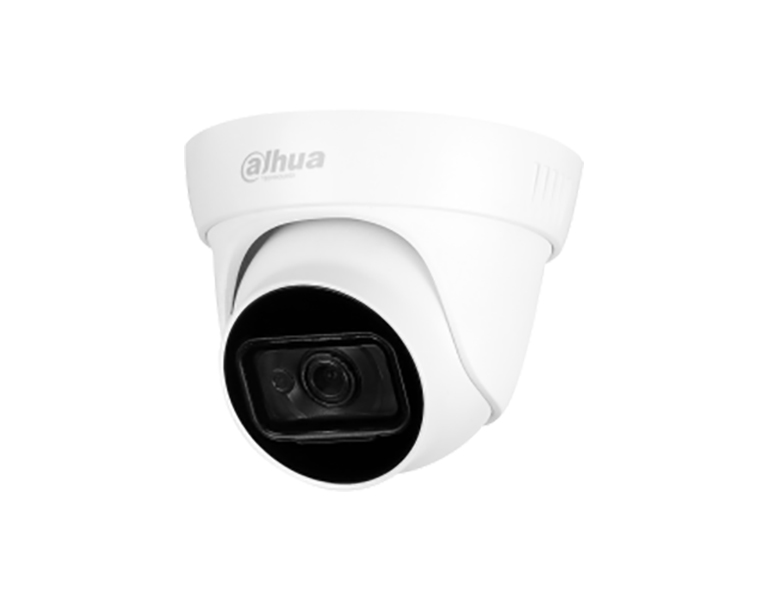

DAHUA HAC-HDW1800TL-A-2.8 4K Real-time HDCVI IR Eyeball Camera (2.8mm)
• Max. 4K resolution, real-time video transmission
• CVI/CVBS/AHD/TVI switchable
• Built-in mic
• Fixed lens 2.8mm
• Max. IR length 30m, Smart IR
• IP67, 12V±30%DC

System Overview
Experience 4K video surveillance with the simplicity of reusing existing coaxial infrastructure. The 4K HDCVI camera adopts a powerful Dahua ISP and advanced 1/2.7" CMOS sensor, which provides superior high quality images. In addition, the camera features broadcastquality audio to provide enhanced supplementary evidence collection. Ultra-high definition and a complete set of features makes the 4K HDCVI camera an ideal choice for mid to large-size businesses and projects where both highly reliable surveillance and construction flexibility are demanded.

Functions
4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technol¬ ogy supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.

Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700m transmission for 4K and 4MP HD video via coaxial cable, and up to 300m via UTP cable. *
*Actual results verified by real-scene testing in Dahua's test laboratory.

Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmis¬sion over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.

Multiple-formats
The camera supports multiple video formats including HDCVI, CVBS, and other two common HD analog formats in the market. This feature makes the camera compatible with not only XVRs, but also most existing HD/ SD DVRs. *
*Use OSD menu to switch HDCVI to other video formats. Use PFM820 UTC Controller to switch CVBS to HDCVI video format.

Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protectionagainst the camera and its structure from the effects of lightning.

Smart IR
The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.

4K Real-time Image Display
Used together with 4K Real-time XVR, the camera can output 4K realtime video stream with clear details and no lag or smear.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months



SPECIFICATIONS
Camera
Image Sensor 1/2.7 inch CMOS
Effective Pixels 3840 (H)× 2160 (V), 4K
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
S/N Ratio >65dB
Minimum Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
Fill Light Working Distance 30 m
IR On/Off Contro Auto, manual
IR LED Number 1
Pan/Tilt/Rotation Range e Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed focal
Focal Length  2.8 mm
Mount Type M12
Max. Aperture F2.0
Angle of View 125° x 105° x 56° (diagonal x horizontal x vertical)
Iris Type Fixed iris
Close Focus Distance 1.0 m
DORI Distance

Detect: 74.7 m
Observe: 29.9 m
Recognize: 14.9 m
Identify: 7.5 m

Video
Video Frame Rate

CVI: 4K@25/30fps, 4K@15fps, 5M@20fps, 4M@25fps/30fps
AHD: 4K@15fps
TVI: 4K@15fps
CVBS: 960H

Resolution 4K (3840 × 2160)
5M (2592 × 1944)
4M (2560 × 1440)
960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/WDR
WDR DWDR
White Balance Auto, Manual
Gain Control Auto, Manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certification
Certifications CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel, built-in mic
Power
Power Supply 12V ± 30% DC
Power Consumption Max 4.3 W (12 VDC, IR on)
Environment
Operating Temperature –40 °C to +60 °C
<95% (non-condensation)
Storage Temperature –40 °C to +60 °C
<95% (non-condensation)
Protection IP67
Structure
Casing Material Cover: plastic
Inner core: metal
Product Dimensions Φ97.0 mm × 85.8 mm
Packaging Dimensions 148 mm × 139 mm × 137 mm
Net Weight 0.3 kg
Gross Weight 0.38 kg
