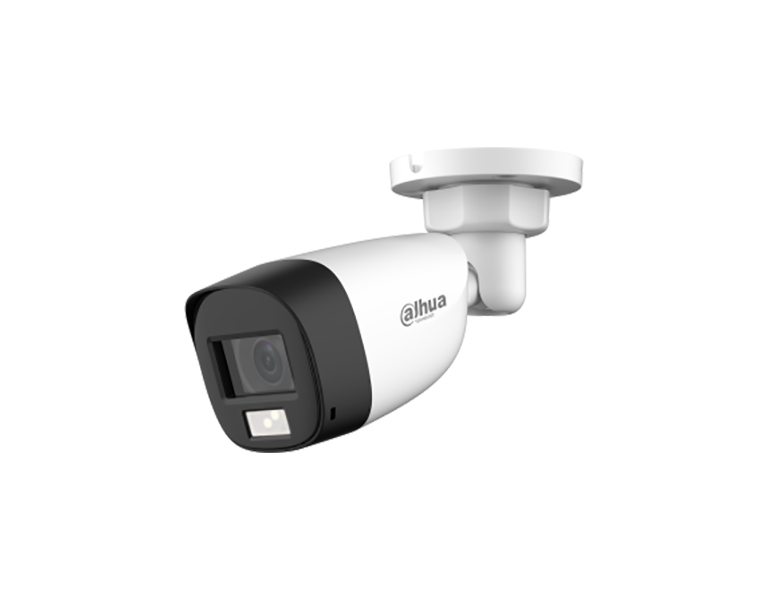

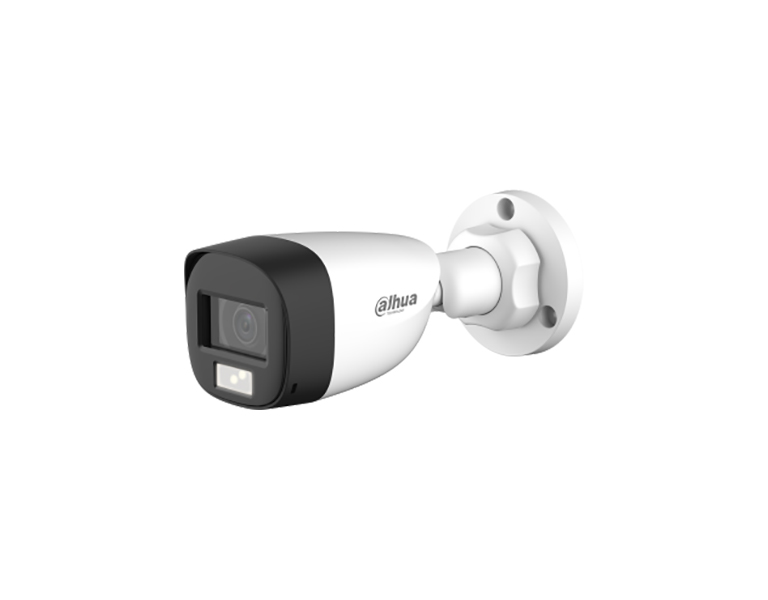

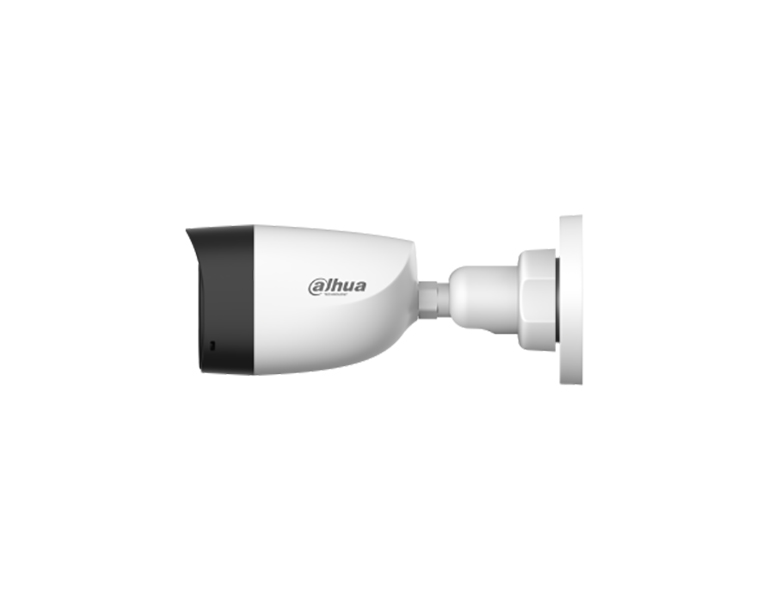

DAHUA HAC-HFW1200CL-IL-A-0360B-S6 2MP Smart Dual Light HDCVI Fixed-focal Bullet Camera (3.6mm)

Product Code:
HAC-HFW1200CL-IL-A-0360B-S6
Manufacturer Dahua
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
DAHUA HAC-HFW1200CL-IL-A-0360B-S6 2MP Smart Dual Light HDCVI Fixed-focal Bullet Camera (3.6mm)
• Max. 30 fps@1080p
• 3D NR
• Smart Dual Light
• 20 m illumination distance
• Super Adapt
• Built-in mic
• 3.6 mm fixed lens
• IP67, 12 V DC
• CVI/CVBS/AHD/TVI switchable

System Overview
The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as full-color and starlight, providing various solutions for different scenarios.

Functions
Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.

Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.

Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.

Advanced 3D NR
Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.

4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. HDCVI technology also supports PoC, which makes the camera easy and quick to install.
* Audio input is available for select HDCVI camera models

Long Distance Transmission
HDCVI technology provides long distance transmission in real time without transmission loss. It supports transmission distances up to 700 m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300 m through UTP cables. The results were obtained and verified through rigorous testing in Dahua's test laboratory.

Protection (IP67, wide voltage)
IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes.
Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months



SPECIFICATIONS
Camera
Image Sensor 2MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Min. Illumination 0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 20 m
Warm light: 20 m
Illuminator On/Off Control Auto
Illuminator Number 2 (Warm light)
2 (IR light)
Angle Adjustment Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Focal Length  3.6 mm
Lens Mount M12
Max. Aperture F2.0
Field of View H: 83°; V: 48°; D: 105°
Iris Control Fixed
Close Focus Distance 0.7 m
DORI Distance Detect: 50.9 m
Observe: 20.3 m
Recognize: 10.2 m
Identify: 5.1 m
Video
Video Frame Rate CVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
AHD:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution 1080p (1920 × 1080)
960H (960 × 576/960 × 480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto
Area White Balance
Gain Control Auto
Noise Reduction 3D NR
Illumination Mode Smart IR&WL, WL Mode, IR Mode
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications CE-LVD: EN 62368-1
CE-EMC: EN 55032, EN 55035
FCC: 47 CFR FCC Part 15, Subpart B
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input 1 channel
Power
Power Supply 12 VDC ± 30%
Power Consumption Max 2.6W (12 VDC, IR on)
Environment
Operating Temperature –40 °C to +60 °C
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C
Storage Humidity <95% (RH), non-condensing
Protection Grade IP67
Structure
Casing Material Plastic
Product Dimensions 163.4 mm × 69.7 mm × 70 mm
Net Weight 0.18 kg
Gross Weight 0.26 kg
Installation Wall mount, ceiling mount, vertical pole mount
