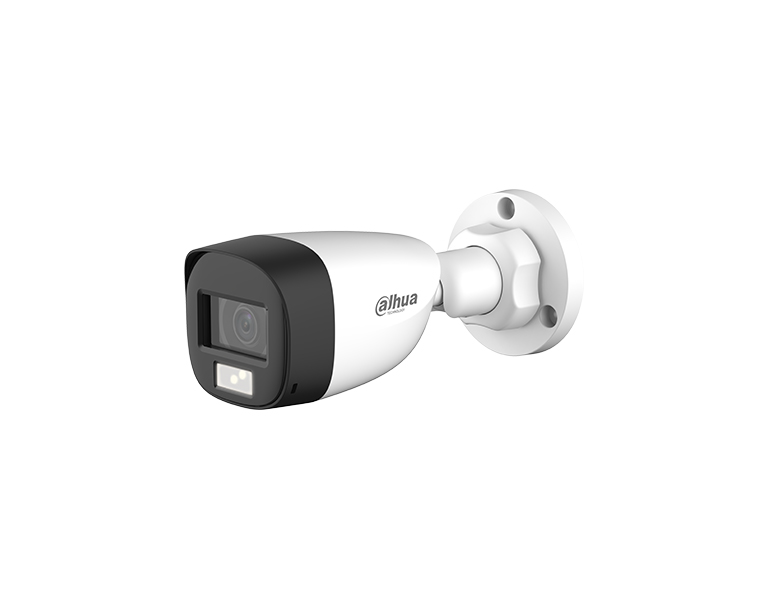

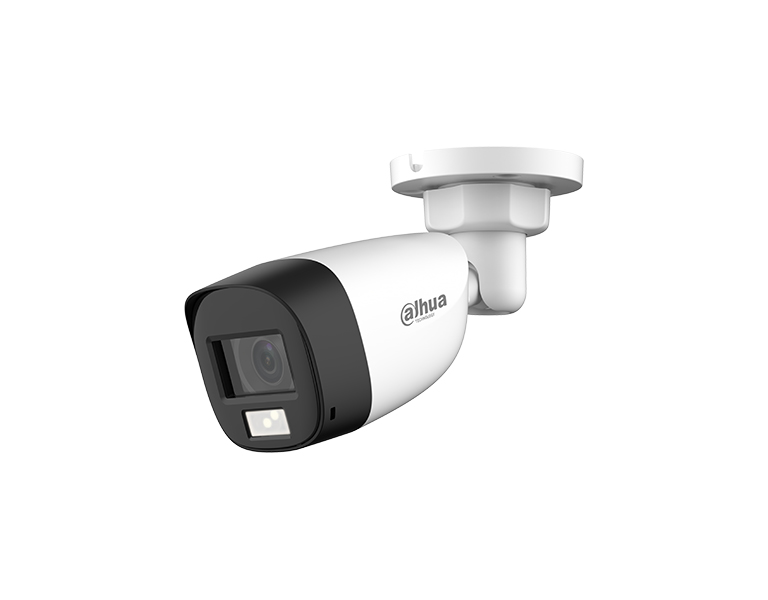

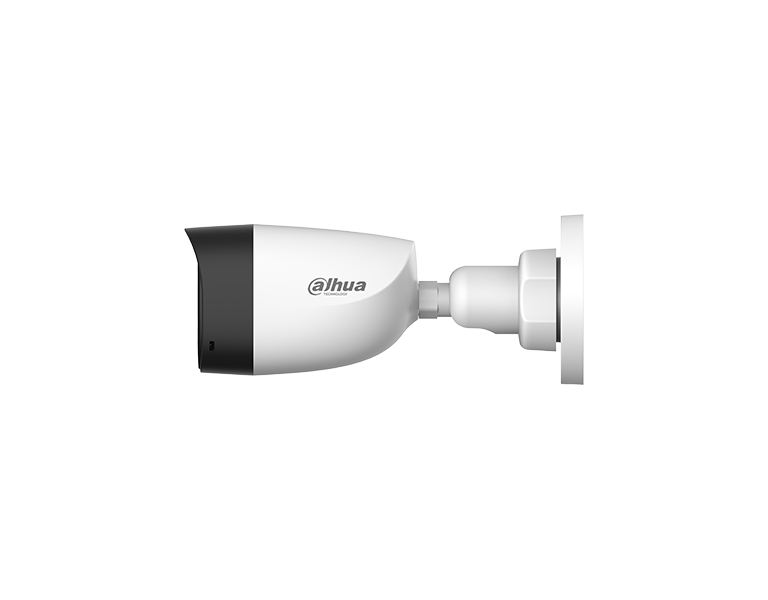

DAHUA HAC-HFW1500CL-IL-A-0360B-S2 5MP Smart Dual Light HDCVI Fixed-focal Bullet Camera (3.6mm)

Product Code:
HAC-HFW1500CL-IL-A-0360B-S2
Manufacturer Dahua
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
DAHUA HAC-HFW1500CL-IL-A-0360B-S2 5MP Smart Dual Light HDCVI Fixed-focal Bullet Camera (3.6mm)
• Max 25 fps@5MP (16:9 video output)
• Smart Dual Light
• 20 m illumination distance
• Super Adapt
• 3.6 mm fixed lens
• Built-in mic
• CVI/CVBS/AHD/TVI switchable
• IP67, 12 VDC

System Overview
The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as full-color and starlight, providing various solutions for different scenarios.

Functions
Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.

Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.

Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.

Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes.
Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios.

4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. HDCVI technology also supports PoC, which makes the camera easy and quick to install.
* Audio input is available for select HDCVI camera models.

Long Distance Transmission
HDCVI technology provides long distance transmission in real time without transmission loss. It supports transmission distances up to 700 m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300 m through UTP cables. The results were obtained and verified through rigorous testing in Dahua's test laboratory.

Simplicity
HDCVI technology inherits the simplicity of traditional analog surveillance systems, making it a great mechanism for protecting your valuables. HDCVI can be upgraded from the traditional analog system without replacing the existing coaxial cabling. Its plug and play design enables it to produce high-definition videos during surveillance without the hassle of configuring a network.

Multi-language OSD
The OSD offers multiple functions to meet the many requirements of a monitoring scene, such as backlight mode, day/night mode, white balance, privacy mask, and motion detection. 11 languages are available for OSD: Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months



SPECIFICATIONS
Camera
Image Sensor 5MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Min. Illumination 0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 20 m
Warm Light: 20 m
Illuminator On/Off Control Auto
Μanual
Illuminator Number 2 (Warm light)
2 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Focal Length  3.6 mm
Lens Mount  M12
Max. Aperture F1.6
Field of View H: 92°; V: 48°; D: 109°
Iris Control Fixed
Close Focus Distance 1.3 m
DORI Distance Detect: 76.0 m
Observe: 30.4 m
Recognize: 15.2 m
Identify: 7.6 m
Video
Video Frame Rate CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution 5M (2880 × 1620), 4M (2560 × 1440), 1080p (1920 × 1080), 960H (960 × 576/960 × 480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto
Area White Balance
Gain Control Auto
Manual
Noise Reduction 2D NR
Illumination Mode Smart IR&WL, WL Mode, IR Mode
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power
Power Supply 12 VDC ± 30%
Power Consumption Max 4.5 W (12 VDC, WLED on)
Environment
Operating Temperature –40 °C to +60 °C
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C
Storage Humidity <95% (RH), non-condensing
Protection Grade IP67
Structure
Casing Metal
Product Dimensions 163.4 mm × 69.7 mm × 70 mm
Net Weight 0.19 kg
Gross Weight 0.27 kg
Installation Wall mount, ceiling mount, vertical pole mount
