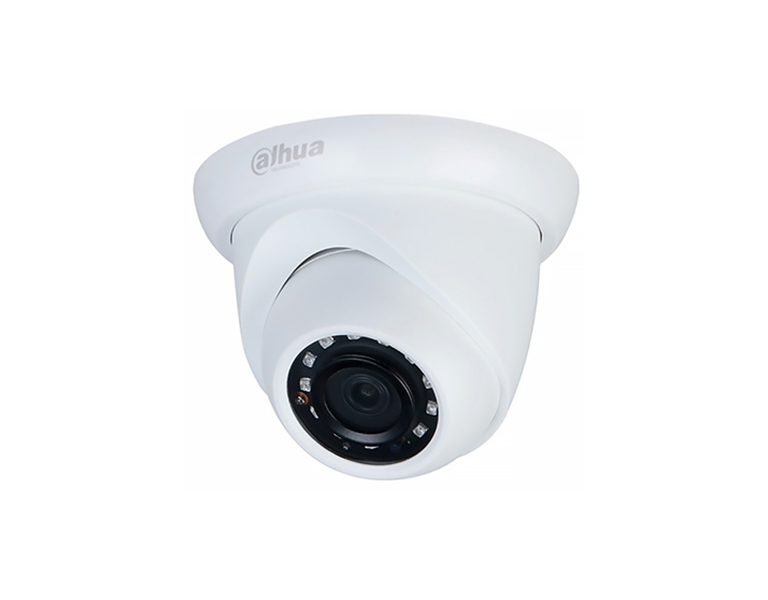

DAHUA IPC-HDW1230S-S5-2.8 2MP Entry IR Fixed-Focal Eyeball Netwok Camera (2.8mm)

Product Code:
IPC-HDW1230S-S5-2.8
Manufacturer Dahua
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
DAHUA IPC-HDW1230S-S5-2.8 2MP Entry IR Fixed-Focal Eyeball Netwok Camera (2.8mm)
• 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
• Outputs max. 2MP (1920 × 1080) @25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in efficient IR illuminator, and the max. illumination distance is 30 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
• 12 V DC/PoE power supply
• IP67 protection


Series Overview
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises.

Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection (General) technology triggers alarm or records.

Smart Illumination
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target.

Image Flip
For narrow and long scenes, Dahua image flip technology flips the image by 90°/180°/270° to realize better surveillance in rotation mode

Cyber Security
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.

Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.



Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months



SPECIFICATIONS
Camera
Image Sensor 1/2.8" CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 16 MB
RAM 64 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.01 Lux @F2.0
S/N Ratio >56 dB
Illumination Distance 30 m
Illuminator On/Off Control Auto/ manual
Illuminator Number 12 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Focal Length  2.8 mm
Lens Mount M12
Max. Aperture F2.0
Field of View H: 102°; V: 54°; D: 120°
Iris Control Fixed
Close Focus Distance 0.5 m
DORI Distance Detect: 38.6 m
Observe: 15.4 m
Recognize: 7.7 m
Identify: 3.9 m
Video
Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+
Smart H.264+
Video Frame Rate Main Stream:
1920 × 1080 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
BLC Yes
HLC Yes
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6400 kbps
Day/Night Auto(ICR)/Color/B/W
WDR DWDR
White Balance Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control Auto, manual
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Noise Reduction 3D NR
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Alarm
Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception
Network
Network  RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Genetec
User/Host 6 (Total bandwidth: 36 M)
Storage FTP
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS, Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption Basic power consumption:1.5W (12V DC); 3.3W (PoE)
Max. power consumption (ICR + H.265+IR intensity): 2.3W (12V DC); 4.4W (PoE)
Environment
Operating Conditions –40 °C to +60 °C /less than ≤ 95%
Storage Temperature –40 °C to +60 °C
Protection  IP67
Structure
Casing Inner core: Metal
Cover: Plastic
Decoration ring: Plastic
Pedestal: Plastic
Product Dimensions 84.9 mm × Φ108 mm
Net Weight 0.26 kg
Gross Weight 0.39 kg
