• 1/2.8" 5Megapixel STARVIS™ CMOS
• Max. 20 fps@5MP
• Human detection
• Tripwire, intrusion
• H.265 encoding
• Wi-Fi
• IP66
• Two-way audio
• Sound and light alarm
• IR and white light, three night view modes

System Overview

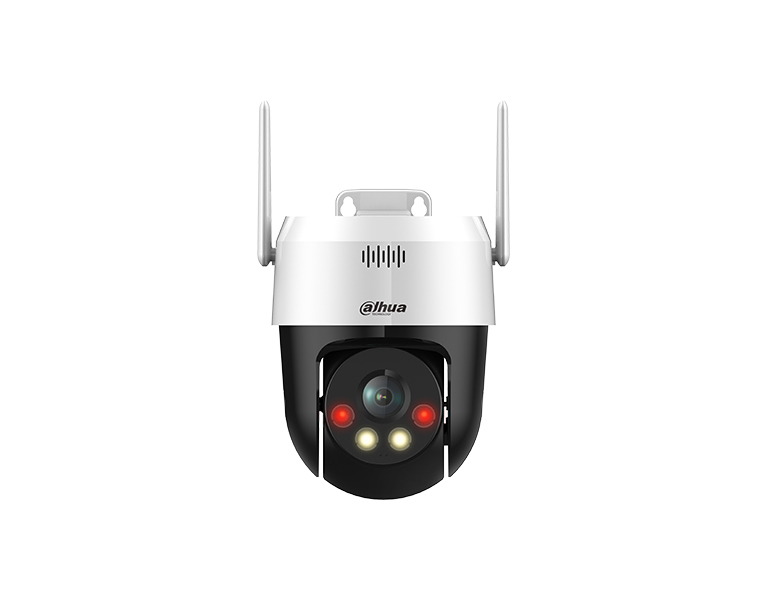

The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. It also records videos in full color, and uses Smart Dual Light to help produce vivid images, making it easy to obtain information on events, and reduce light pollution.

Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Two-way Talk
With its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.

IVS
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.

Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports the white light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in one voice, and supports customized voice importing.

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

Specifications
Camera
Image Sensor	1/2.8" CMOS
Pixel	5 MP
Max. Resolution	2560 (H) × 1920 (V)
ROM	128 MB
RAM	128 MB
Electronic Shutter Speed	1/3 s–1/100,000 s
Scanning System	Progressive
Min. Illumination	Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (illuminator on)
Illumination Distance	30 m(IR) 30 m(white light)
Illuminator On/Off Control	Manual, auto, off
Illuminator Number	2 (IR light) 2 (White light)
Lens
Max. Aperture	F1.6
Focal Length	4.0 mm
Field of View	H: 80.4° V: 58.1° D: 104.8°
Close Focus Distance	0.3m
Iris Control	Fixed
DORI Distance	Detect:77.4 m Observe: 31.0 m Recognize: 15.5 m Identify: 7.74 m
PTZ
Pan/Tilt Range	Pan: 0° to 345° Tilt: 0° to +80°
Manual Control Speed	Pan: 0.1°–74°/s Tilt: 0.1°–36.4°/s
Preset Speed	Pan: 62°/s Tilt: 36.3°/s
Preset	300
Power-off Memory	Yes
Idle Motion	Preset
Smart Event
IVS	Tripwire, intrusion
Human Detection	Yes
Active Deterrence
Light Warning	White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low
Sound Warning	Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s
Video
Video Compression	H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+
Streaming Capability	2 streams
Resolution	5M (2560 × 1920); 4M (2560 × 1440); 1080P (1920 × 1080); 960P(1280x960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate	Main stream: 5M(1–20 fps),4M/1080p/1.3M/720p (1–25/30 fps) Sub stream: D1/CIF (1–25/30 fps)
Bit Rate Control	CBR/VBR
Video Bit Rate	H264: 512–8192 kbps H265: 233–7680 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
WDR	DWDR
HLC	Yes
White Balance	Auto, manual, tracking, indoor, outdoor, sodium lamp, street lamp, natural light
Gain Control	Auto, manual
Noise Reduction	2D NR, 3D NR
Motion Detection	Yes
Image Rotation	180°
S/N Ratio	≥55 dB
Audio
Audio Compression	PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1
Network
Network Port	RJ-45 (10/100 Base-T)
Wi-Fi	Yes
Wi-Fi–Wireless Standard	802.11n, IEEE802.11b, 802.11g
Wi-Fi–Wireless Frequency Range	2.4GHz
Wi-Fi–Wireless Transmission Rate	150Mbps
Network Protocol	UDP,FTP,RTMP,IPv6,IPv4,IP Filter,DNS,RTCP,HTTP,NTP,SS L,DHCP,RTP,SMTP,HTTPS,TCP/IP,RTSP,DDNS,ARP
Interoperability	CGI, SDK, ONVIF (Profile S&T), P2P
Streaming Method	Unicast/Multicast
User/Host	20
Storage	Micro SD card (512 GB), FTP
Browser	IE: IE 7 and later versions, Chrome, Firefox, Safari
Management Software	DMSS
Mobile Client	iOS, Android
Certification
Certification	CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000- 3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
Port
Audio Input	1 channel (built-in mic)
Audio Output	1 channel (built-in speaker)
Two-way Audio	Yes
Alarm Linkage	Capture, preset, recording, audio, sending email
Alarm Event	Motion/Tampering detection, audio detection, network disconnection detection, IP conflict detection, memory card state detection, memory space detection
Audio I/O	1/1
Power
Power Supply	12 VDC/1.5 A±10%
Power Consumption	Basic: 3.5 W Max.: 11 W (illuminator + PT + speaker + heating glass)
Environment
Operating Temperature	–30 °C to +55 °C
Operating Humidity	≤ 95%
Protection	IP66, TVS 2000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions	140.5 mm × Φ111.0 mm
Net Weight	0.5 kg
Gross Weight	1 kg
*The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
