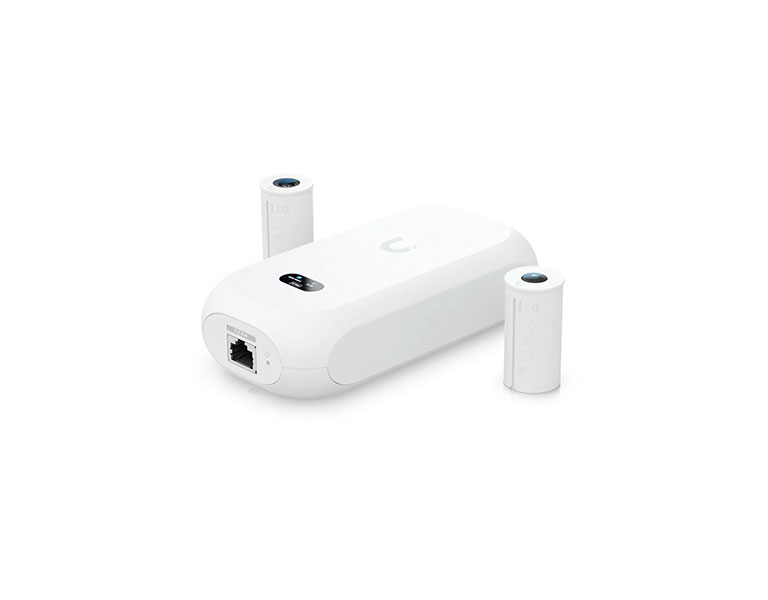

UniFi Protect UVC AI Theta is a special camera unit (hub) with an Ethernet port, information display and two USB-C ports for connecting the camera at a distance of up to 30m (a 1m connecting cable is included in the package) and an audio microphone/speaker, which is not included in the package. In the package there are 2 cameras with different characteristics and it is possible to connect only one of them. The panoramic camera has a 12MP sensor, a resolution of 2560 x 2560px at 20 fps and a fixed lens with a viewing angle of 180° The wide-angle camera is directional, has an 8MP sensor, a max. resolution of 3264 x 2448px at 24 fps and a fixed lens with a viewing angle of 98° The hub connects to the network using a 10/100/1000 Mbps Ethernet port which supports power via PoE 37 - 57V DC with a maximum consumption of 12.5W. The hub is intended for indoor use only, supports H.264 and MJPEG compression, and thanks to the powerful CPU supports intelligent AI detection of movement, people, cars and license plates.

Features:
• 8MP, 98° wide viewing angle, max. 24 fps
• 12MP, 180° panoramic viewing angle, max. 20 fps
• Possibility of additional purchase of audio module with microphone and speaker
• Power supply via PoE, max. consumption 12.5W
• Color LCM display for monitoring device status
• Advanced AI processor for long range intelligent detection
• Managed by UniFi Protect software - from version 2.7.18 (web) or 1.11.0 (mobile app)

*Note: UniFI Protect is required to run this product with full functionality, we recommend using it with UniFi Dream Machine Pro or UniFi Protect Network Video Recorder.

Package contents

• Device - Hub
• Wide-angle camera
• Panoramic camera
• USB-C connection cable
• Screws + dowels
• Plastic installation kit for attaching the camera to the ceiling
• Plastic installation kit for attaching the sponge to the wall

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Dimensions	UVC-AI-Theta-Hub: 140 x 70 x 38 mm UVC-AI-Theta-Lens/360: Ø 22.8. x 43.5 mm
Weight	UVC-AI-Theta-Hub: 330 g UVC-AI-Theta-Hub Mount: 35 g UVC-AI-Theta-Lens/360: 15 g UVC-AI-Theta-Lens/360 Flush Mount: 12 g
Enclosure Material	UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
Mount materials	UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
Cable jacket enclosure dimensions	28 x 13 x 7.5 mm
Cable jacket enclosure material	PVC
Cable length	1 m
Cable diameter	3.3 mm
Cable jacket material	PVC
Cable weight	18 g
Cable connector type	Theta proprietary
Optics
Sensor	UVC-AI-Theta-Lens: 8MP CMOS sensor UVC-AI-Theta-Lens-360: 12MP CMOS sensor
Lens	Fixed focal length
View angle	UVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2° UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180°
Video
Video compression	H.264, MJPEG
Resolution	UVC-AI-Theta-Lens: 3264 x 2448 (4:3) UVC-AI-Theta-Lens-360: 2560 x 2560 (1:1)
Maximum frame rate	UVC-AI-Theta-Lens: 24 FPS UVC-AI-Theta-Lens-360: 20 FPS
Image settings	Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor specs	Quad core Arm Cortex -A53 based chip
Memory information	2 GB LPDDR4
Managementinterface	UniFi Protect
Networking interface	10/100/1,000 MbE RJ45
Flash memory support	8 GB eMMC
Max. power consumption	12.5W
Power requirements	PoE
Supported voltage range	37 to 57VDC
Link/activity LED	R/G/B/W
Button	Factory reset
Mounting	Wall, ceiling mount
Operating temperature	-20 to 40º C
Operating humidity	10 to 90% noncondensing
Certications	FCC, IC, CE
Audio
Microphone	Yes (can be disabled in software)
Speaker	Yes
Software
UniFi OS application	UniFi Protect
Mobile app	UniFi ProtectiOS and Android
