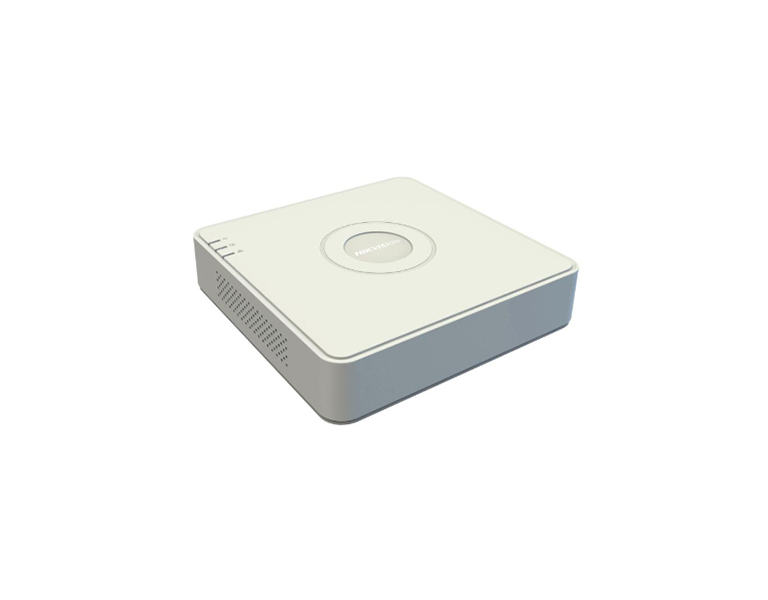

Hikvision DS-7104NI-Q1/4P(D) 4-ch Mini 4 PoE 1U NVR
Product Code:
DS-7104NI-Q1/4P(D)
Manufacturer Hikvision
- Description
- Specifications
- Downloads
- Reviews
Hikvision DS-7104NI-Q1/4P(D) 4-ch Mini 4 PoE 1U NVR
CAUTION!!! Package includes power supply!!!
• H.265+/H.265/H.264+/H.264 video compression
• Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
• Up to 4-ch network camera inputs
• Up to 4-ch 1080p decoding capability
• HDMI and VGA simultaneous output
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Video and Audio | |
| IP video input | 4-ch Up to 6 MP resolution |
| Incoming bandwidth | 40 Mbps |
| Outgoing bandwidth | 60 Mbps |
| HDMI output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video output mode | HDMI/VGA simultaneous output |
| Decoding | |
| Decoding format | H.265+/H.265/ H.264+/H.264 |
| Recording resolution | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playback | 4-ch |
| Capability | 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps) |
| Stream type | Video, Video & Audio |
| Network | |
| Remote connection | 16 |
| Network protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
| Network interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interface | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 36 W |
| Supported standard | IEEE 802.3 af/at |
| Auxiliary interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| USB interface | Rear panel: 2 x USB 2.0 |
| General | |
| Power supply | 48 VDC, 1 A |
| Consumption(without HDD) | ≤ 10 W |
| Working temperature | -10 °C to +55 °C |
| Working humidity | 10% to 90% |
| Dimension(WxDxH) | 200 x 200 x 48 mm |
| Weight (without HDD) | ≤ 1 kg |
| Certification | |
| CE | EN50130-4, EN 61000-3-2,EN 61000-3-3 |
There are yet no reviews for this product.
