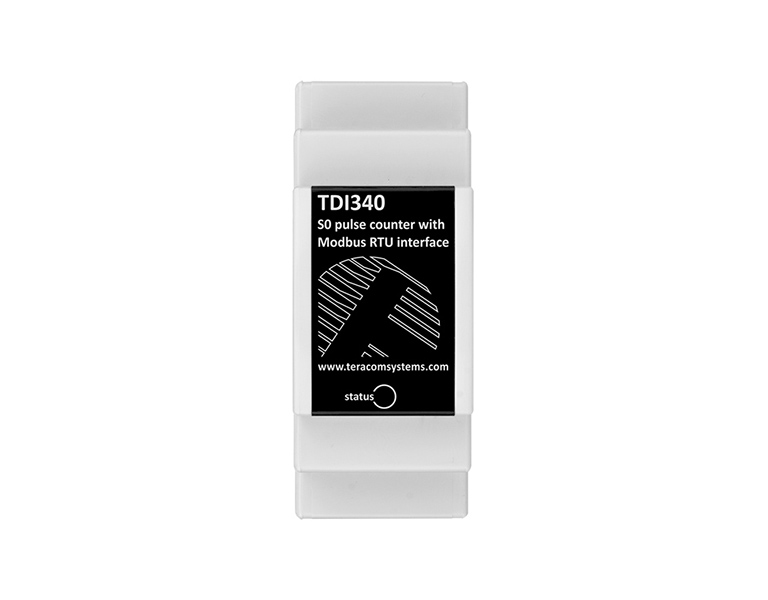

Teracom TDI340 S0 pulse counter with MODBUS RTU interface

Product Code:
TDI340
Manufacturer Teracom
Sales price: 122,50 €(Includes 24% VAT)
Sales price without TAX:98,79 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
Teracom TDI340 S0 pulse counter with MODBUS RTU interface

TDI340 is an S0 pulse counter with MODBUS RTU interface. It has 4 isolated digital inputs. The inputs complying with the S0 standard 62053-31. The counter works in polling or edge modes. In the edge mode, it can count on rising, falling, and both edges.
In fact, the device has 4 independent counters. Their information is stored in non-volatile memory. This prevents the loss of information.
In addition to raw information about counted impulses, the device also offers registers for the true (calculated) physical values. This helps to record energy, water, gas, etc. directly.
The device is dedicated for the pulse counter. It also provides simultaneous readings for the state of the digital inputs – OPEN/CLOSE.
Independent delays for Low-To-High and High-To-Low transitions can be applied. The delays are from 0 to 656 seconds in 10mS step. They work if the counter for the corresponding digital input is in polling mode. The delays are very useful for additional digital filtering of the incoming pulses.
The device has a very wide range of supply voltage starting from 5, up to 32 volts. This makes it suitable for various industrial applications.

Features:
• RS-485 interface carrying up to 63 nods
• Non-volatile memory for counters storage
• Wide supply voltage range, starting from 5VDC
• Galvanically isolated inputs
• 32-bit counters
• Built-in 120 ohms termination resistor
• DIN rail mounting
• Firmware update via the interface

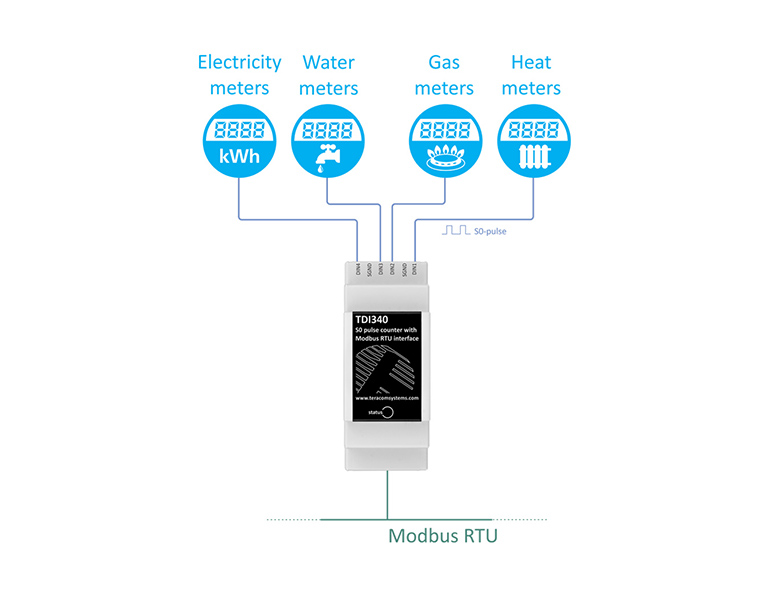

Applications:
• Remote monitoring of electricity meters
• Industrial process control
• Remote monitoring of water meters
• Monitoring of devices with S0 outputs
• Remote data acquisition
• Remote monitoring of gas meters
• Energy management
• Process monitoring

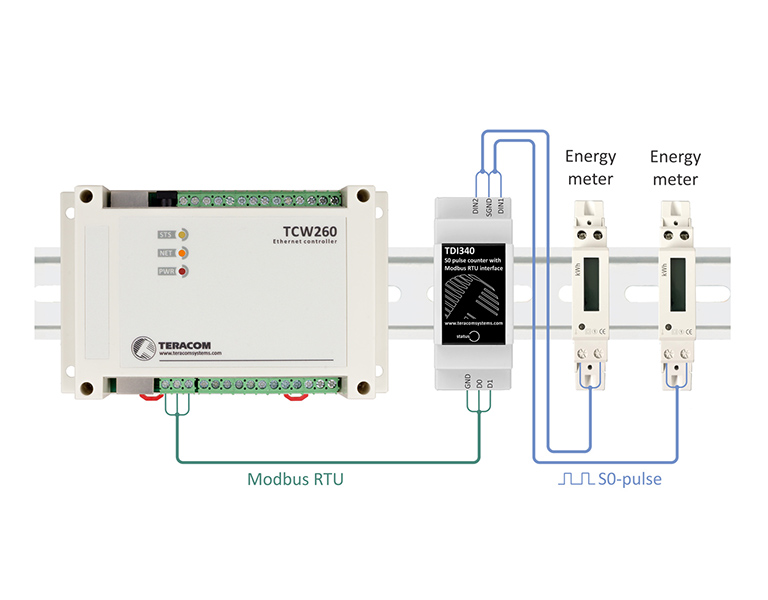

The counter can be used with:
• Energy monitoring module TCW260
• Third party MODBUS RTU master devices

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Supply voltage 5 - 36 VDC
Maximum current 25mA @ 5 VDC
Operating temperature range -20 to +60 °C
Operating relative humidity range 10 to 90 %RH (non-condensing)
Isolation functional 1000 VDC
Ingress protection IP40
Dimensions 35x86x59 mm, (2 module enclosure)









There are yet no reviews for this product.
