Teracom TSD800 - door magnetic sensor

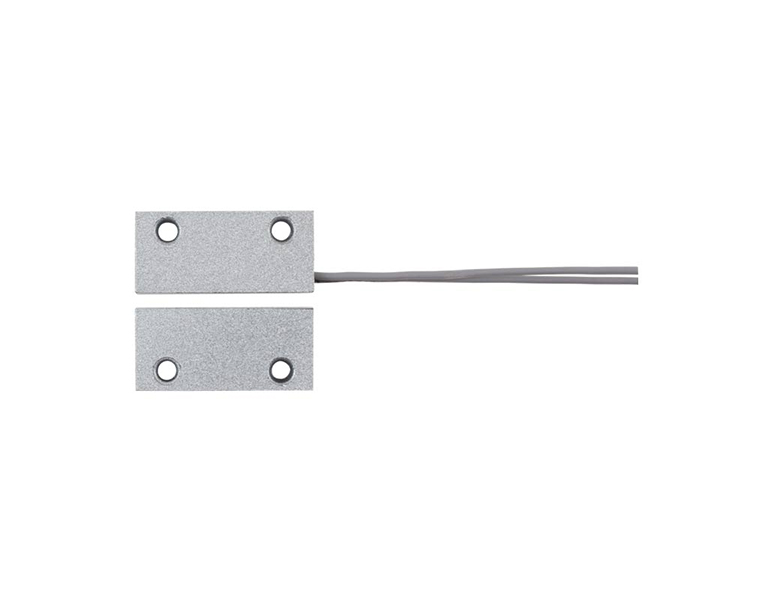

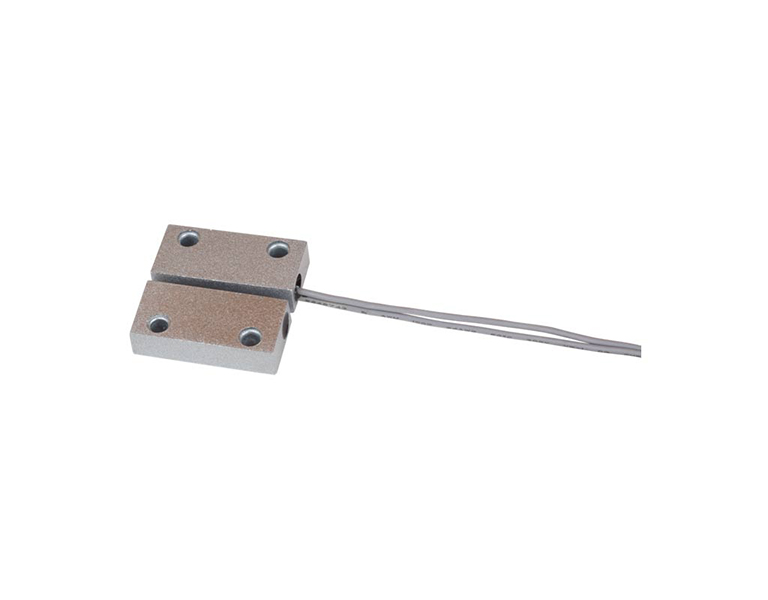

TSD800 is a door magnetic sensor with leads. The robust design makes it ideal choice for either metal or wooden doors and windows.
TSD800 has a relay output and can be used with controllers which have digital inputs in “dry contact” mode.

Features:
• Excelent choice for for residential or commercial use
• Wide gap between the two parts of sensor
• Screw mount for better durability
• IP65 ingress protection

Applications:
• Door or window monitoring security
• Open window detection for hotel and offices HVAC systems
• Building Management System (BMS)
• Server rooms and data centers door opening monitoring

The magnetic door sensor can be used with:
• Ethernet IO module TCW241
• Ethernet data logger TCW220
• Remote IO module TCW122B-CM
• GSM-GPRS remote monitoring controller TCG120
• Ethernet digital IO module TCW181B-CM
• IP watchdog monitoring module TCW122B-WD
• Remote environmental monitoring module TCW112-CM
• IP watchdog relay board TCW112-WD

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 36 months
Specifications
Maximum switchable voltage 28 VDC
Maximum switchable current 100 mA
Maximum gap 25 mm
Leads 250 mm
Switch type SPDT Reed
