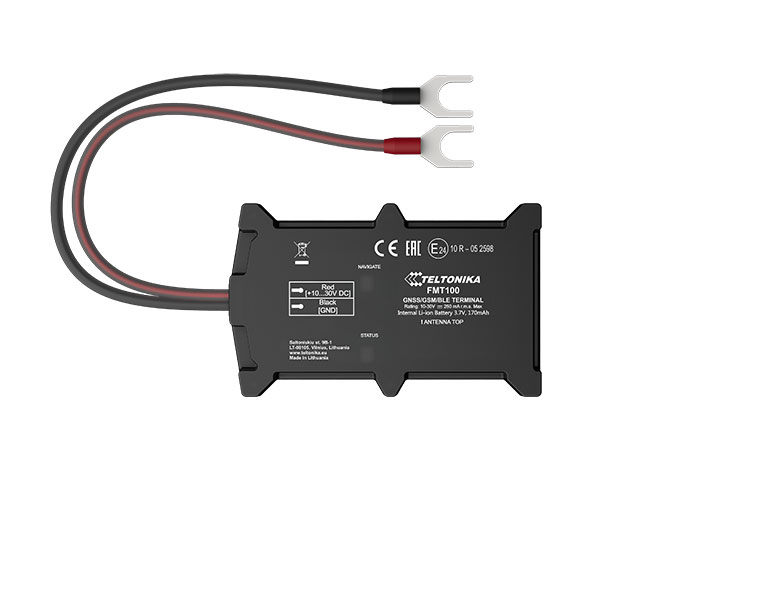

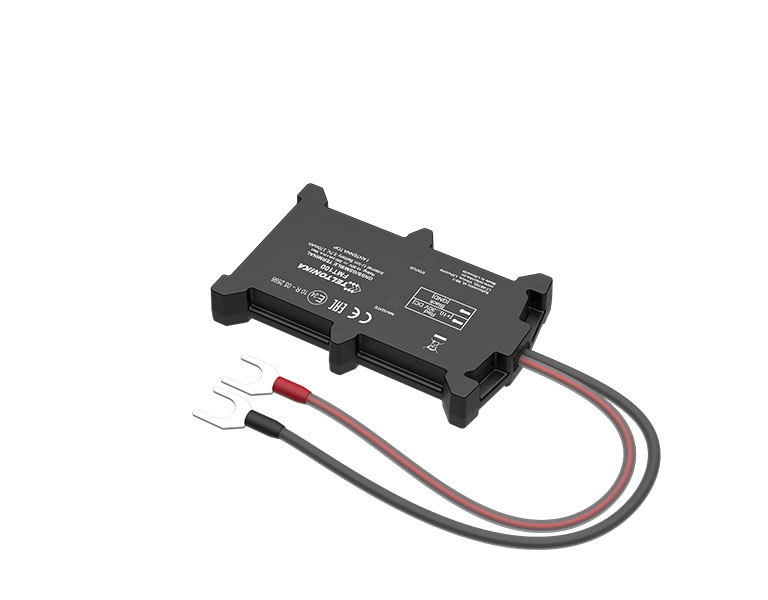

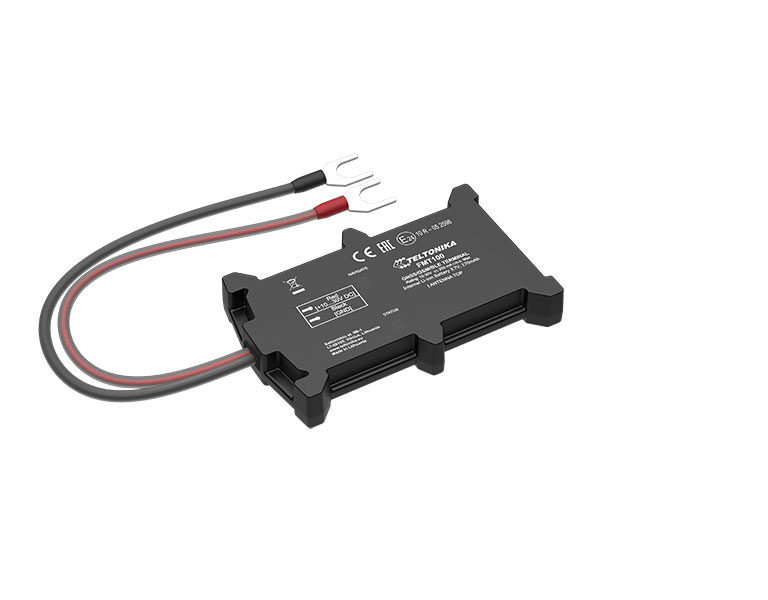

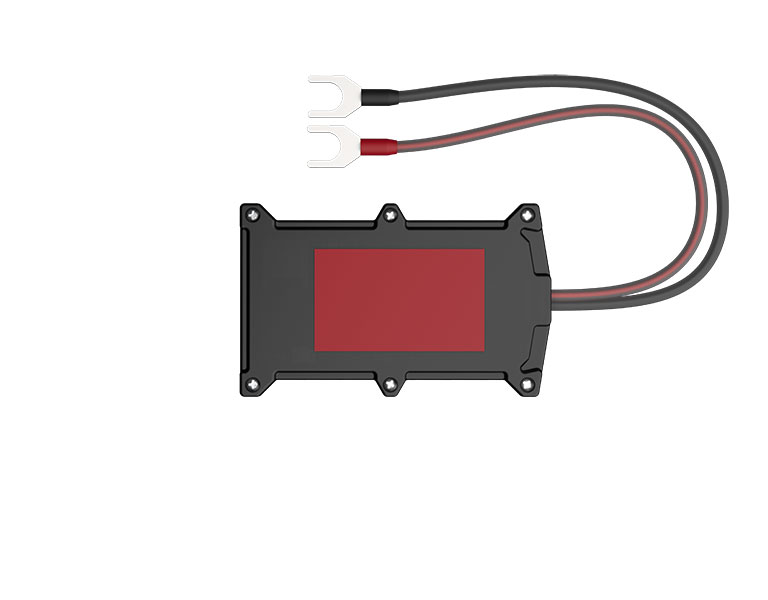

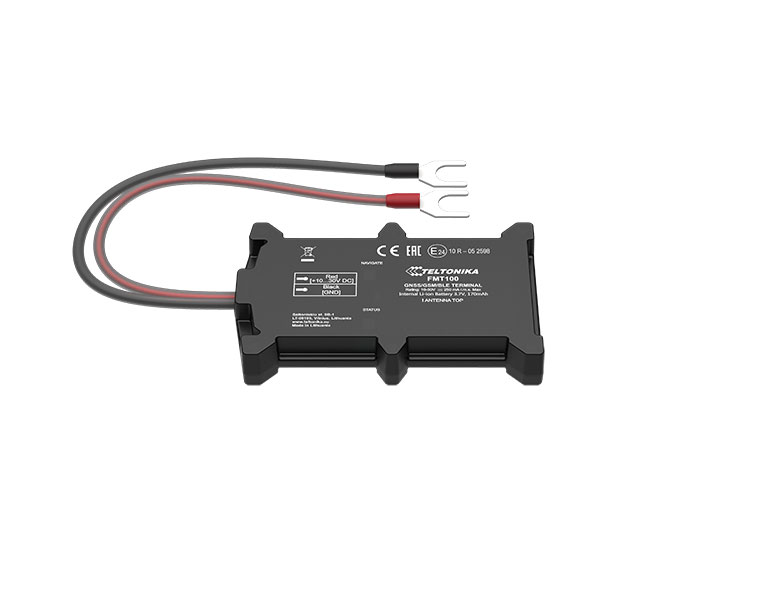

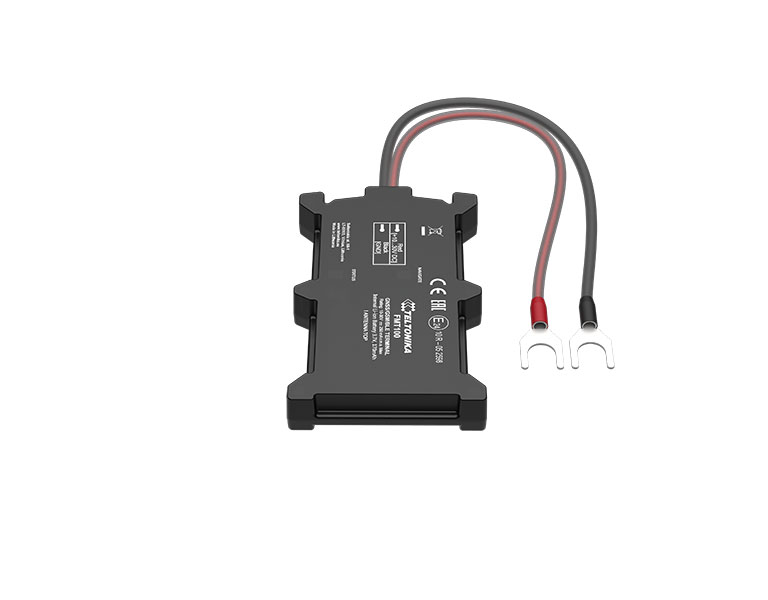

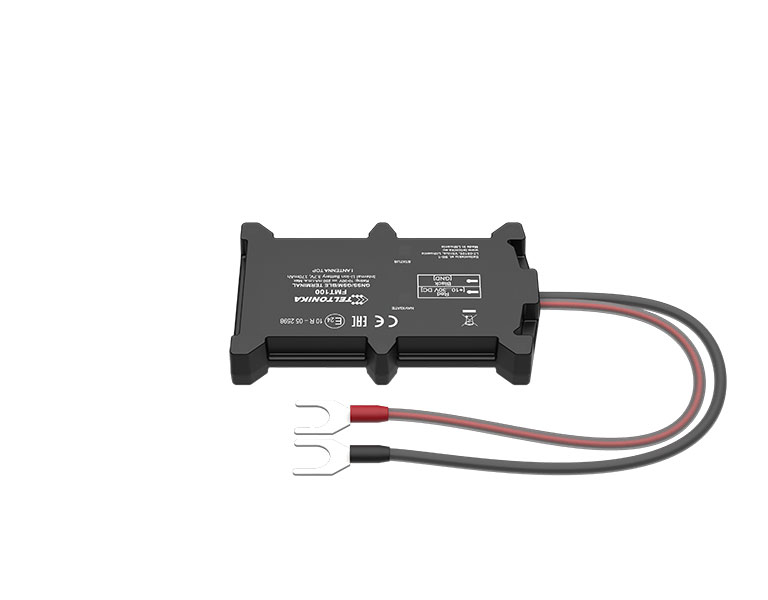

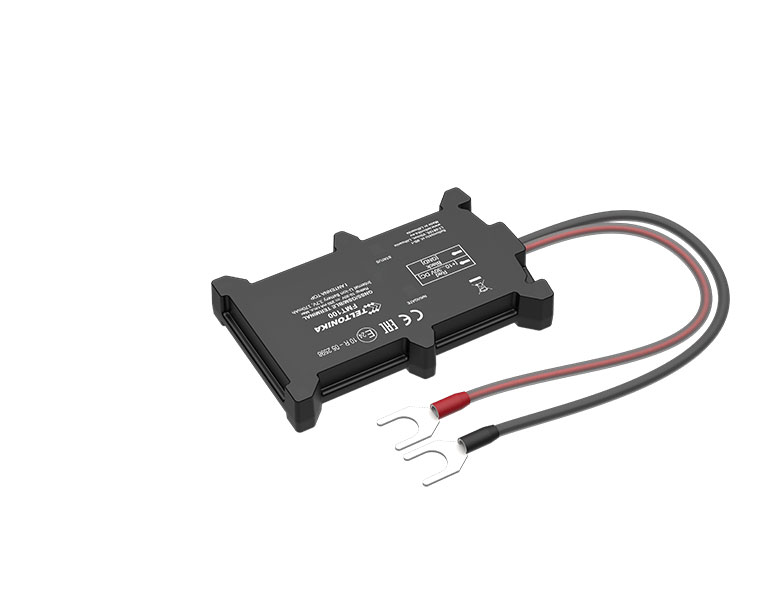

Teltonika FMT100 Special and small waterproof tracker

Product Code:
FMT100
Manufacturer Teltonika
Sales price: 55,00 €(Includes 24% VAT)
Sales price without TAX:44,35 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

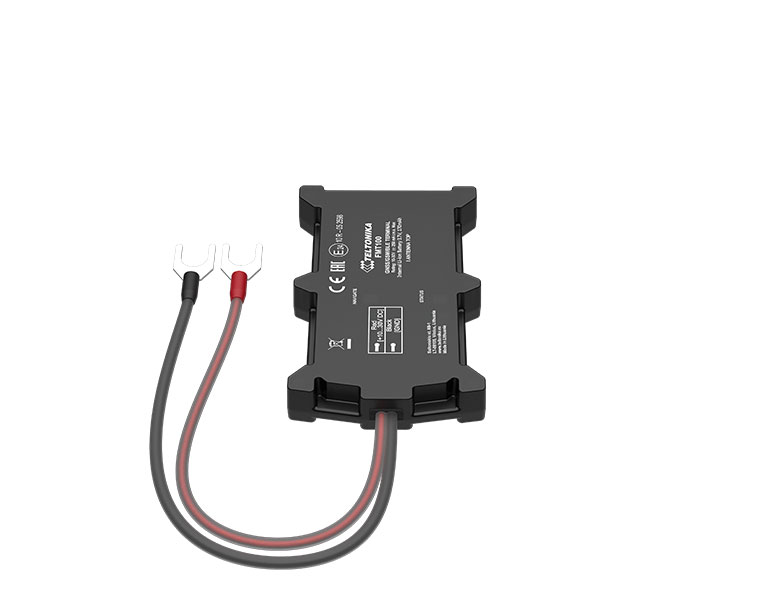

Teltonika FMT100 Special and small waterproof tracker

Teltonika FMT100 small, smart and waterproof GNSS SPECIAL tracker with Bluetooth connectivity and internal backup battery. Biggest in its class internal High Gain GNSS antenna allows mounting directly on car battery under the hood. FMT100 is equipped with special clamp connector for fast power cable connection to the car battery. Solid waterproof case and built-in accelerometer & gyroscope sensors with extremely accurate crash trace functionality makes this device perfectly suitable for insurance market solutions.

Warranties - Returns:
Money Return: Repair - Replacement*:
20 days 24 months
*Batteries are accompanied by a 6-month warranty




Specifications
Module
Name Teltonika TM2500
Technology GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Position accuracy < 2.5 CEP
Velocity accuracy < 0.1m/s (within +/- 15% error)
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Cellular
Technology GSM
2G bands Quad-band 850/900/1800/1900 MHz
Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps),
GPRS Mobile Station Class B
Data support SMS (text/data)
Power
Input voltage range 10 - 30 V DC with overvoltage protection
Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Bluetooth
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
Physical
Dimensions(LxWxH) 92.5 x 57.6 x 14 mm
Weight 63 g
Interface
GNSS antenna Internal High Gain
Cellular antenna Internal GSM High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memory
Operating environment
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP65
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Features
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, Debug
GPRS commands Configuration, Debug
Time Synchronization GPS, NITZ, NTP
Fuel monitoring OBDII dongle
Ignition detection Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
Standard Package Contains • FMT100 tracker
• Power supply cable with special clamp connector (0.4m)
• Packaging box
Certification & Approvals
Regulatory CE/RED, EAC, REACH, RoHS
There are yet no reviews for this product.
