TP-LINK TL-FC111B-20 V1 10/100 Mbps WDM Media Converter

Product Code:
TL-FC111B-20
Manufacturer Tp-link
Sales price: 19,00 €(Includes 24% VAT)
Sales price without TAX:15,32 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews
TP-LINK TL-FC111B-20 V1 10/100 Mbps WDM Media Converter

•Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 20km

What This Product Does
TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works
TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111B-20 should send data at a wavelength of 1550nm and receive data at a wavelength of 1310nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111B-20.

Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 24 months





General Specifications
Standards IEEE 802.3, IEEE 802.3i, IEEE802.3u
LED PWR, Link/Act
Connector 1 SC fiber optic, 1 RJ45 jack
Twisted-Pair 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
Fiber 9/125 μm single-mode fiber (≤20 km)
Wave Length 1310 nm TX, 1550 nm RX
Power Supply 5 V/0.6 A Power Adapter
Dimensions 94.5*73*27 mm
Environmental and Physical Specifications
Operating Temperature 0˚C to 50˚C
Storage Temperature -40˚C to 70˚C
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing



There are yet no reviews for this product.

YOU HAVE SEEN RECENTLY

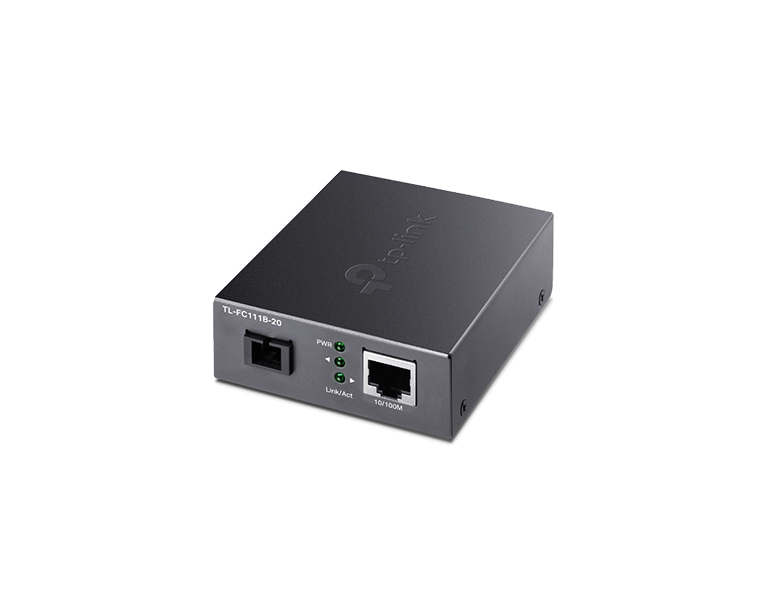

Screenshot_12
