E-zy EZ-BP1512 12v 1.25A Power Supply + PoE Injector LEDs Desktop
Product Code:
EZ-BP1512
Manufacturer E-zy
Sales price:
15,10 €(Includes 24% VAT)
Sales price without TAX:12,18 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews
E-zy EZ-BP1512 12v 1.25A Power Supply + PoE Injector LEDs Desktop

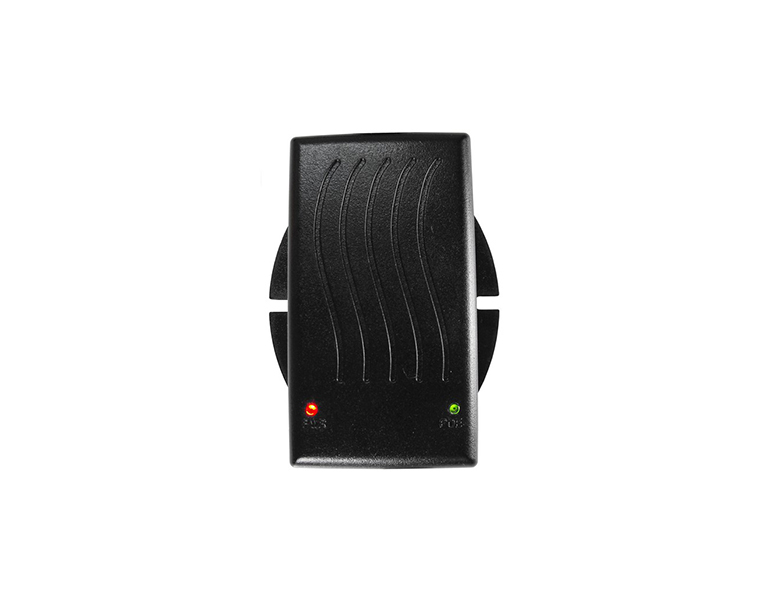

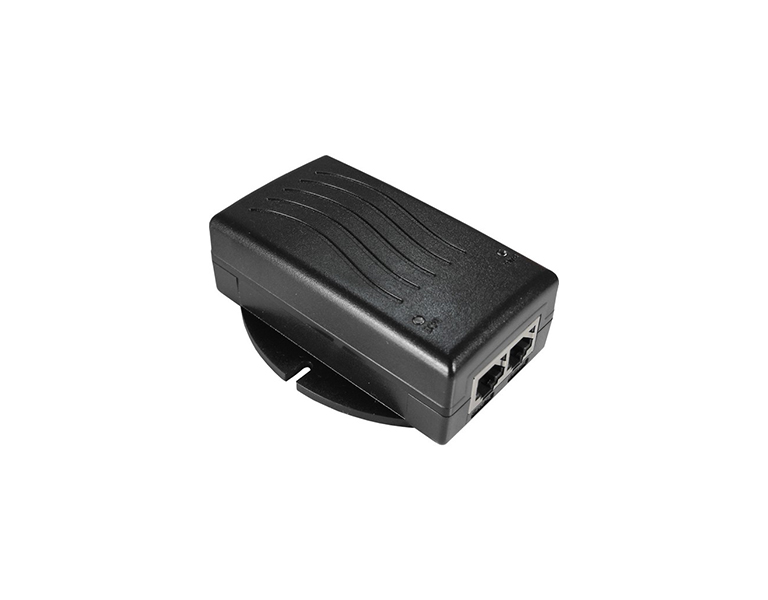

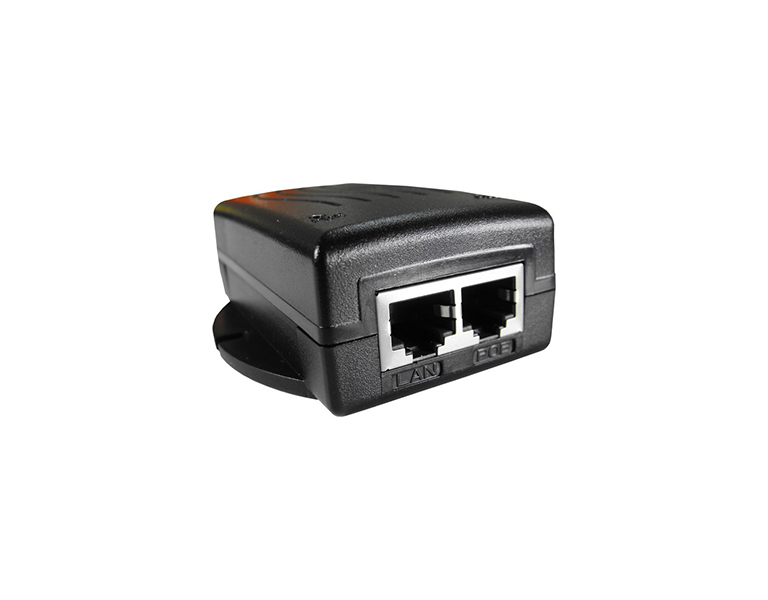

The EZ-BP1512 Power Supply and PoE Injector with LEDs is available with two RJ45 ports to act as “Data-In” and “PoE+Data out”. The EZ-BP1512 indoor PoE Injector allows you to use your space efficiently when installing your wireless equipment through the smart wall mount case. The two PoE LED/Red and ETH LED/Green allows fast and easy control of your equipment.
Features:
• Fast and easy wall mount case.
• All-In-One Power Supply and POE Injector Included.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications | |
| Input Condition | AC100~240V 50/60Hz 0.6A max |
| Input Rated Voltage | 100Vac~200Vac |
| Input Voltage Rate | 90Vac~264Vac |
| Input Rated Frequency | 50/60Hz |
| Input Frequency Range | 47Hz~63Hz |
| Input Current | 0.6A Max |
| Input Inrush Current | 30A Max |
| Input No Load Power Consuption | 0.5 Watt Max @ 115Vac/230Vac |
| Efficiency | 80% Min |
| Rated Output Voltage & Current | 12V/1A |
| Output Line Regulation | +-1% |
| Output Load Regulation | +-5% |
| Output Over Shoot | 10% Max |
| Output Ripple and Noise | 1% Max |
| Output Rising Time | 20ms Max @ 115Vac |
| Output Hold-Up Time | 8ms Min @ 230Vac |
| Protection | OCP OVP SCP OPP |
| Dielectric Withstand Voltage | 3KV 5mA 60s |
| Leakage Current | 0.25mA @ 230Vac |
| DC Plug Specification | 5.5 x 2.1 x 11mm |
| Dimensions | 89 x 70 x 32mm |
| Weight | 146 g (Without AC cable) |
| Operating Temperature Range | 0ºC~40ºC |
| Storage Temperature Range | -20ºC~+85ºC |
| Certifications | CE / UL / GS / RoHS / EMC |
