E-zy EZ-BP1518 18v 0.8A Power Supply + PoE Injector LEDs - Desktop

Product Code:
EZ-BP1518
Manufacturer E-zy
Sales price: 10,50 €(Includes 24% VAT)
Sales price without TAX:8,47 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

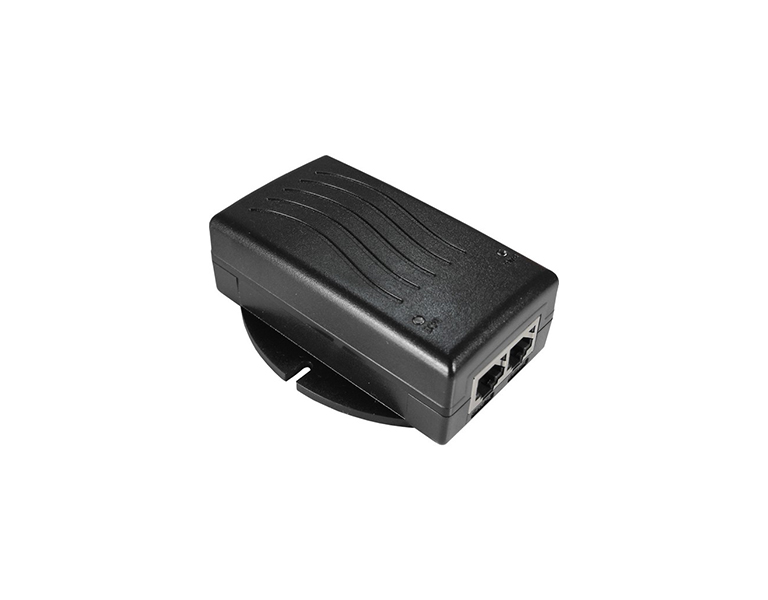

E-zy EZ-BP1518 18v 0.8A Power Supply + PoE Injector LEDs - Desktop

The EZ-BP1518 Power Supply and PoE Injector with LEDs is available with two RJ45 ports to act as “Data-In” and “PoE+Data out”. The EZ-BP1518 indoor PoE Injector allows you to use your space efficiently when installing your wireless equipment through the smart wall mount case. The two PoE LED/Red and ETH LED/Green allows fast and easy control of your equipment.

Features:
• Fast and easy wall mount case
• All-In-One Power Supply and POE Injector Included

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months



Specifications
Input Condition AC100~240V 50/60Hz 0.6A max
Input Rated Voltage 100Vac~200Vac
Input Voltage Rate 90Vac~264Vac
Input Rated Frequency 50/60Hz
Input Frequency Range 47Hz~63Hz
Input Current 0.6A Max
Input Inrush Current 30A Max
Input No Load Power Consuption 0.5 Watt Max @ 115Vac/230Vac
Efficiency 80% Min
Rated Output Voltage & Current 18V/0.8A
Output Line Regulation +-1%
Output Load Regulation +-5%
Output Over Shoot 10% Max
Output Ripple and Noise 1% Max
Output Rising Time 20ms Max @ 115Vac
Output Hold-Up Time 8ms Min @ 230Vac
Protection OCP OVP SCP OPP
Dielectric Withstand Voltage 3KV 5mA 60s
Leakage Current 0.25mA @ 230Vac
DC Plug Specification 5.5 x 2.1 x 11mm
Dimensions 89 x 70 x 32mm
Weight 146 g (Without AC cable)
Operating Temperature Range 0ºC~40ºC
Storage Temperature Range -20ºC~+85ºC
Certifications CE / UL / GS / RoHS / EMC
