Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:
• airFiber^®
• airMAX^®
• EdgeMAX^®
• mFi^®
• UniFi^® AP
• UniFi Protect / airVision^®
• UniFi LED
• UFiber
* Check product specifications to verify PoE compatibility

Ubiquiti PoE Adapter Compatibility with the airGateway™
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber’s local network to the WISP network.

The airGateway is available in three models:
• airGateway Standard model with an internal antenna
• airGateway Pro Dual-Band Wi-Fi model with an internal antenna
• airGateway-LR Long-range Wi-Fi model with an external antenna for extended range

The airGateway plugs into any of these PoE Adapters:

Protection
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.

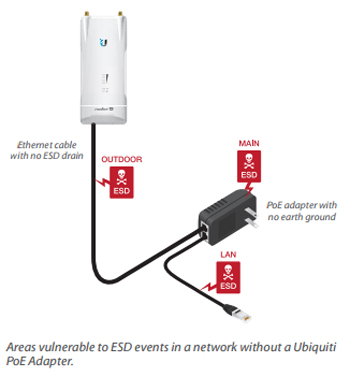

Potential for ESD

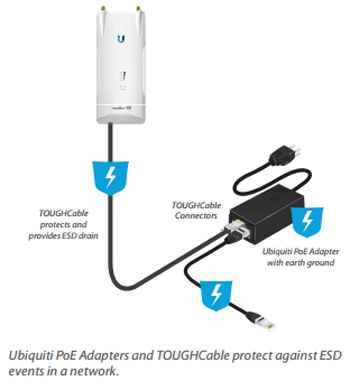

Protection Against ESD

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	12 months

Specifications
Dimensions	89 x 46 x 33 mm
Weight	75 g
Output Voltage	24VDC @ 0.5A
Remote Reset Capability	Yes
Reset Button	Yes
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	0.3A @ 120VAC 0.2A @ 240VAC
Inrush Current	<30A Peak @ 120AC <60A Peak @ 230AC
Efficiency	75+%
Output Ripple	1% Max
Switching Frequency	50 kHz
Line Regulation	≤ 3%
Load Regulation	≤ 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature	0 to 40°C
Storage Temperature	-30 to 70°C
Operating Humidity	35 to 95% Noncondensing

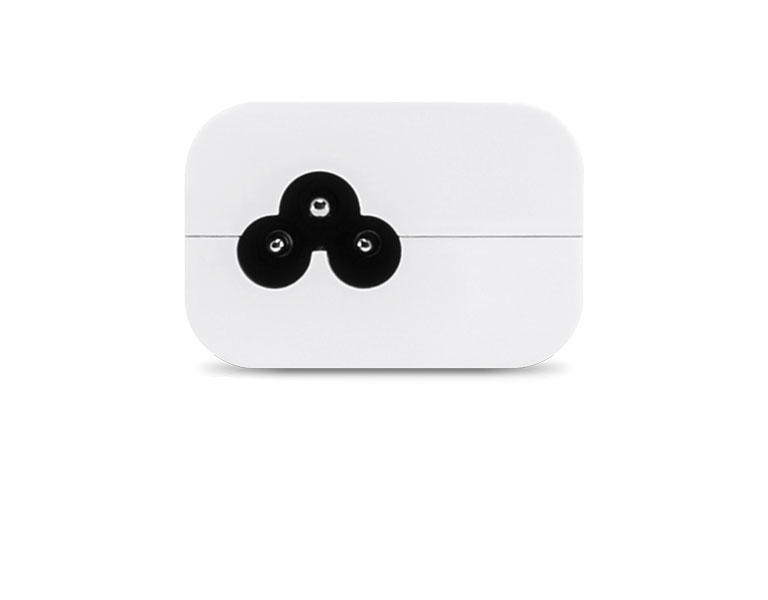

AC Connector	IEC-320 C6

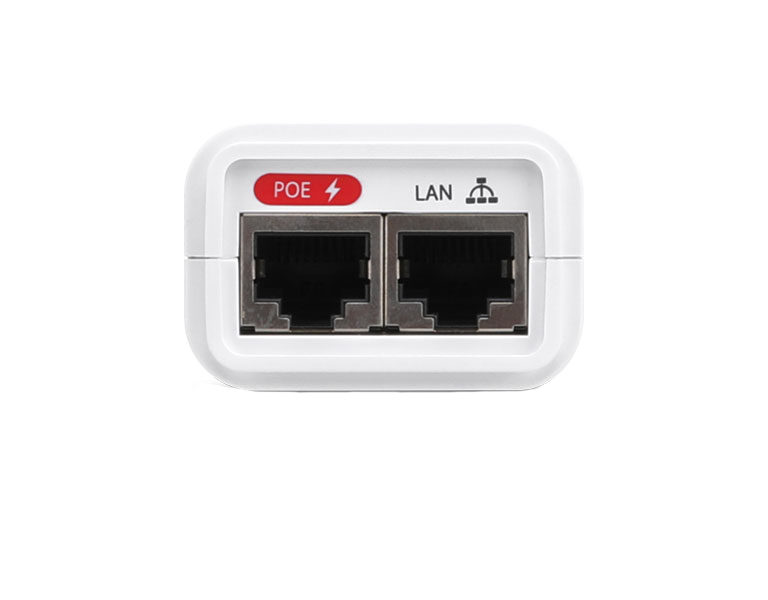

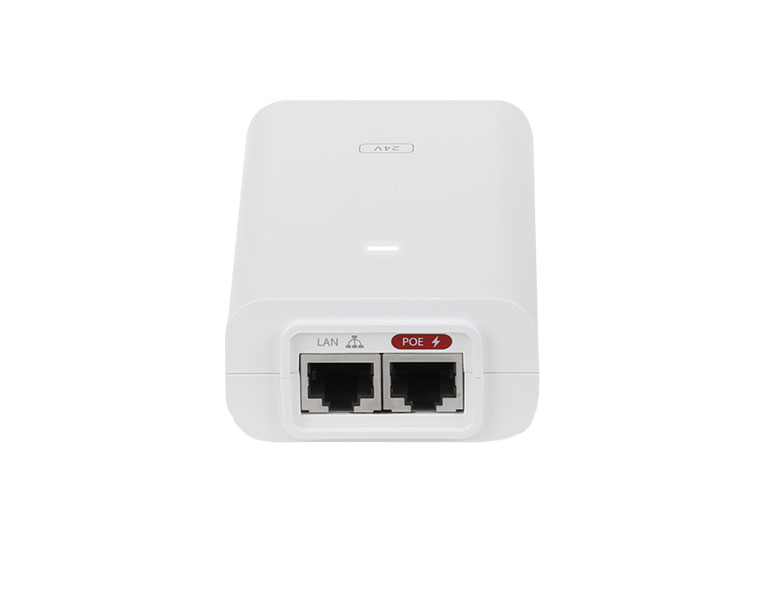

Data IN / POE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 µs) Power
Peak Pulse Current	36A (10/1000 µs) Data
Certifications	CE, FCC, IC, UL
Shunt Capacitance	<5 pF data
Response Time	<1 ns
