E-ZY EZPS1515E 15v 1.0A Power Supply Wallplug EU type

Product Code:
EZPS1515E
Manufacturer E-zy
Sales price: 7,30 €(Includes 24% VAT)
Sales price without TAX:5,89 €
Product Availability:

Show Shipping Cost:
  • Description
  • Specifications
  • Downloads
  • Reviews

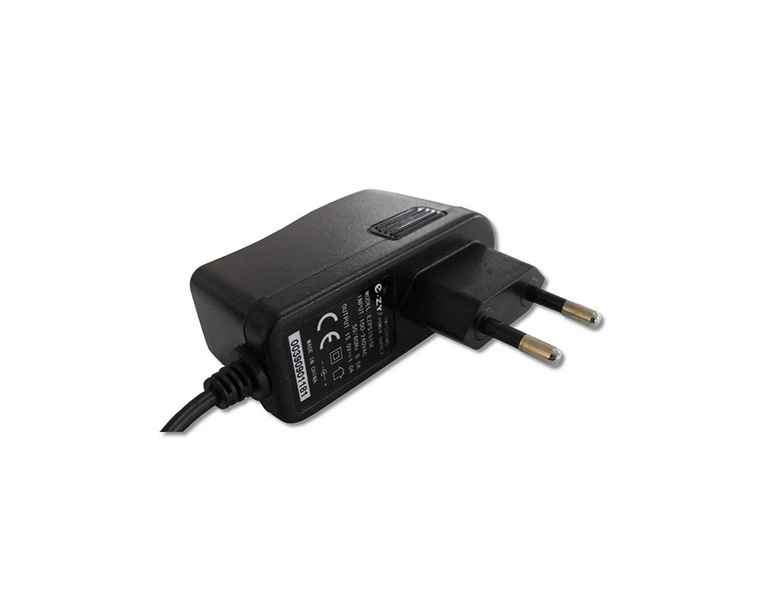

E-ZY EZPS1515E 15v 1.0A Power Supply Wallplug EU type

The EZPS1515E indoor PoE Injector wallplug allows you to use your space efficiently when installing your wireless equipment through the smart wallplug case. The industry standard DC Plug allows compatibility with a viariety of wireless equipment.

Features:
• Fast and easy wallplug case.
• Standard DC Plug.
• Small size.

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 12 months
Specifications
Input Condition AC100~240V 50/60Hz  0.6A max
Input Rated Voltage 100Vac~200Vac
Input Voltage Rate 90Vac~264Vac
Input Rated Frequency 50/60Hz
Input Frequency Range 47Hz~63Hz
Input Current 0.6A Max
Input Inrush Current 30A Max
Input No Load Power Consumption 0.5 Watt Max @ 115Vac/230Vac
Efficiency 80% Min
Rated Output Voltage & Current 15v/1A
Output Line Regulation +-1%
Output Load Regulation +-5%
Output Over Shoot 10% Max
Output Ripple and Noise 1% Max
Output Rising Time 20ms Max @ 115Vac
Output Hold-Up Time 8ms Min @ 230Vac
Protection OCP OVP SCP OPP
Dielectric Withstand Voltage 3KV 5mA 60s
Leakage Current 0.25mA @ 230Vac

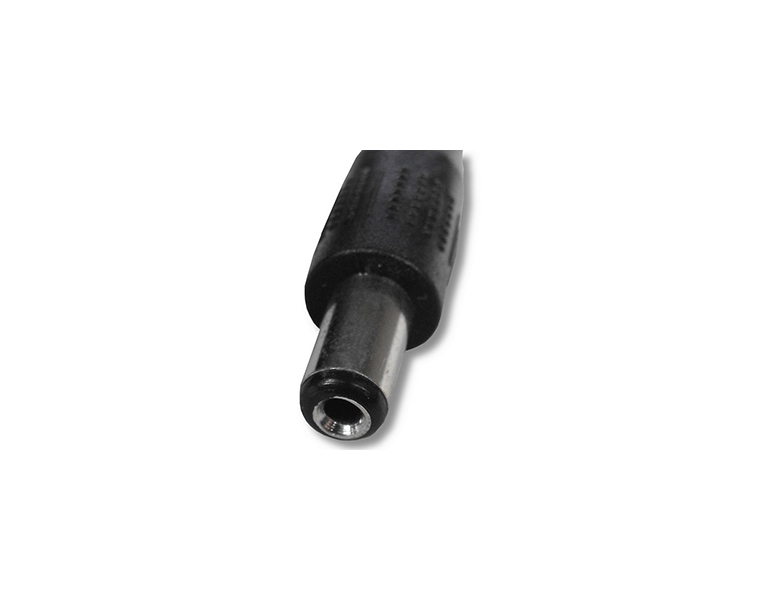

DC Plug Specification 5.5 x 2.1 x 11mm
Dimension 35 x 73 x 53mm
Weight 110g
Operating Temperature Range 0oC~40oC
Storage Temperature Range -20oC~+85oC
Certifications CE / UL / GS / RoHS / EMC
