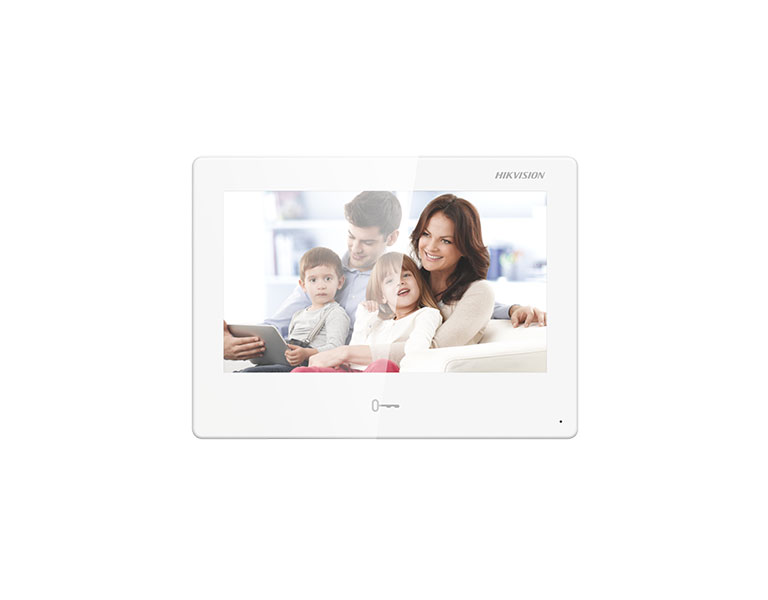

• 7-inch colorful touch screen with resolution 1024 × 600
• Supports Android app installation
• Open platform for the third-party software integration
• Video intercom & live view on mobile phone all-day
• Built-in Hik-Connect for all-in-one management
• Receives 7 seconds of video verification from alarm systems

Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.

Warranties - Returns:
Money Return:	Repair - Replacement:
20 days	36 months

System Parameters
Operating System	Embedded Android operation system
ROM	8 GB Emmc
RAM	2 GB
CPU	Embedded processor
Display Parameters
Screen Size	7-inch
Operation Method	Capacitive touch screen
Type	Colorful TFT
Resolution	1024 × 600
Video Parameters
Lens	/
Resolution	/
FOV	/
WDR	/
Video Compression Standard	/
Focal Length	/
Audio Parameters
Audio Compression Standard	G.711 U, G.711 A
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Audio Compression Bitrate	64 Kbps
Audio Quality	Noise suppression and echo cancellation
Volume Adjustment	Adjustable
Capacity
Event Capacity	200
Notice Capacity	16
Linked Indoor Extensions Capacity	16
Network Parameters
Communication Protocol	TCP/IP, SIP, RTSP
Wired Network	Support
Wi-Fi Standard	Wi-Fi 802.11 b/g/n
Bluetooth Version	/
3G/4G Standard	/
Zigbee	/
Device Interfaces
Alarm Input	8
Network Interface	1 RJ-45 10/100 Mbps self-adaptive
TAMPER	/
RS-485	1
TF Card	Reserved
Alarm Output	1 relay output, 1 alarm output
Power Interface	1
General
Button	/
Installation	Surface mounting
Indicator	/
Without package: 419.3 g	With package: 694 g
Protective Level	/
Working Temperature	-10 °C to 50 °C
Working Humidity	10% to 90%
Dimensions	187 mm × 137 mm × 25.7 mm
Battery	/
Power Supply	IEEE802.3af, standard PoE 12 VDC, 1 A
Application Environment	Indoor
Power Consumption	≤ 8 W
Language	English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Norwegian, Danish
