DrayTek Vigor-2765-A Vigor2765, 35b/VDSL2/ADSL2+ Modem/Router, AnnexA

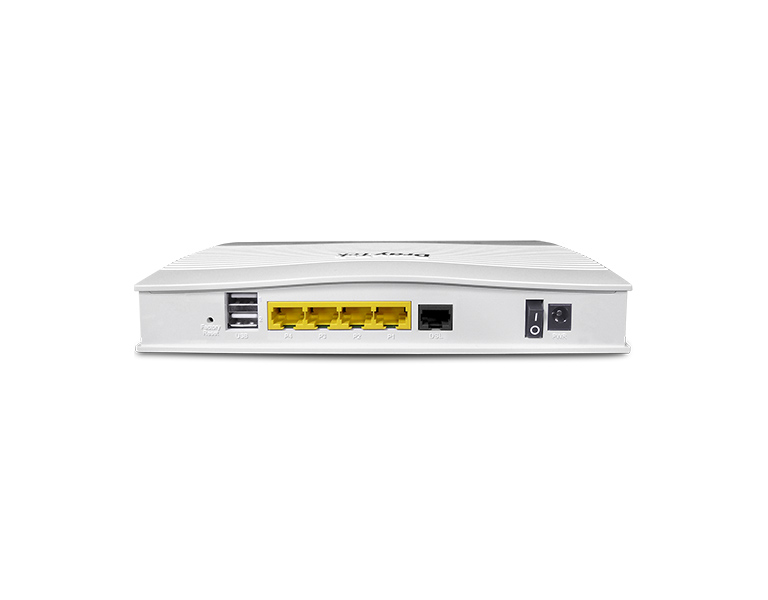

Vigor2765 Series is a 35b Supervectoring VDSL modem, a firewall, and a VPN router. The router has 4x GbE LAN port, one of which is switchable to be a backup WAN interface. It's highly configurable for an abundance of features including web content filtering, bandwidth limit, QoS and lots more, perfect for professional users who would like to take full control of the network.

Features:
• VDSL2 35b - Download speed up to 300 Mbps
• 600 Mbps - Max. NAT Throughput
• 2 VPN - Support IKEv2, SSL VPN, and OpenVPN
• 50k Sessions - Recommended for a network of 30 hosts

Warranties - Returns:
Money Return: Repair - Replacement:
20 days 24 months
Specifications
Interface
Fixed WAN Port 1 x RJ-11 for VDSL2 or ADSL2/2+
WAN/LAN Switchable Port 1x 10/100/1000Base-T, RJ-45 (P4)
Fixed LAN Port 3 x 10/100/1000Base-TX, RJ-45
USB Port 2 x USB 2.0
Performance
Max. Throughput on VDSL 300 Mbps
NAT Throughput 600 Mbps
IPsec VPN Performance 200 Mbps (AES 256 bits)
SSL VPN Performance 80 Mbps
Max. Number of NAT Sessions 50,000
Max. Concurrent VPN Tunnels 2
VDSL/ADSL
VDSL Standards ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2)
VDSL2 Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b (Supervectoring)
VDSL Band Plan 997, 998
ADSL Standards ANSI T1.413, ITU-T G.992.1(G.dmt), G.992.2 (G.lite)
ADSL2 Standards ITU-T G.992.3, G.992.3 Annex M/J
ADSL2+ Standards ITU-T G.992.5, G.992.5 Annex M/J
Internet Connection
IPv4 PPPoE, PPPoA, DHCP, Static IP, MPoA, PPTP/L2TP
IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
Multi-VLAN/PVC
WAN Failover
Connection Detection ARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 8
Number of LAN Subnet 2
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Wired 802.1x Authentication
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking
Routing Ipv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP
Policy-based Routing Protocol, IP Address, Port, Domain, Country
High Availability
DNS Security (DNSSEC)
Multicast IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
SMB File Sharing • (Requires external storage)
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN
User Authentication Local, RADIUS, mOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA-1, SHA-256, MD5
Encryption MPPE, DES, 3DES, AES128, AES192, AES256
Single-Armed VPN
NAT-Traversal (NAT-T)
Firewall & Content Filtering
NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, DNS Keyword, Web Features, Web Category*
(*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization
Management
Local Service HTTP, HTTPS, Telnet, SSH, FTP, TR-069
Config File Export & Import
Firmware Upgrade TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Access List, Brute Force Protection
Notification Alert SMS, E-mail
SNMP v1, v2c, v3
Syslog
Managed by VigorACS
Central AP Management 2 VigorAP
