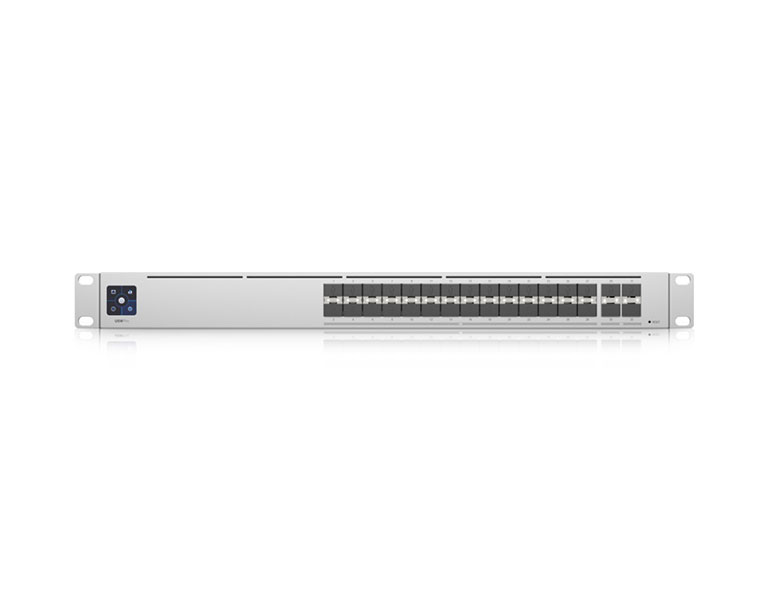

Ubiquiti USW-Pro-Aggregation UniFi Switch Pro Aggregation
Product Code:
USW-Pro-Aggregation
Manufacturer Ubiquiti
Sales price:
1100,00 €(Includes 24% VAT)
Sales price without TAX:887,10 €
Product Availability:
Show Shipping Cost:
- Description
- Specifications
- Downloads
- Reviews
Ubiquiti USW-Pro-Aggregation UniFi Switch Pro Aggregation
The UniFi Switch Pro Aggregation is a fully managed, Layer 3 switch with (4) 25G SFP28 ports and (28) 10G SFP+ ports. The UniFi Switch Pro Aggregation utilizes high-bandwidth links to create link aggregation that enhances its switching capacity.
The UniFi Switch Pro Aggregation is managed with the UniFi Network application (web and mobile), allowing you to easily build, scale, and monitor your enterprise networks.
Features:
• (28) 10 Gbps SFP+ ports
• (4) 25 Gbps SFP28 ports
• 760 Gbps switching capacity
• (1) 1.3” touchscreen with AR switch management
• (1) Backup 12V DC input connector, SmartPower RPS
Managed with UniFi Network Application Version: 6.1.25 or higher.
Works with UniFi Network Controller
• Manage Your Networks from a Single Control Plane
• Intuitive and Robust Configuration, Control and Monitoring
• Remote Firmware Upgrade
• Users and Guests
• Guest Portal/Hotspot Support
The UniFi Switch Pro Aggregation is managed with the UniFi Network application (web and mobile), allowing you to easily build, scale, and monitor your enterprise networks.
Features:
• (28) 10 Gbps SFP+ ports
• (4) 25 Gbps SFP28 ports
• 760 Gbps switching capacity
• (1) 1.3” touchscreen with AR switch management
• (1) Backup 12V DC input connector, SmartPower RPS
Managed with UniFi Network Application Version: 6.1.25 or higher.
Works with UniFi Network Controller
• Manage Your Networks from a Single Control Plane
• Intuitive and Robust Configuration, Control and Monitoring
• Remote Firmware Upgrade
• Users and Guests
• Guest Portal/Hotspot Support
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications | |
| Mechanical | |
| Dimensions | 442 x 325 x 44 mm |
| Weight | Without Mount: 4.6 kg With Mount: 4.7 kg |
| Enclosure Material | SGCC Steel |
| Hardware | |
| Total Non-Blocking Line Rate | 380 Gbps |
| Switching Capacity | 760 Gbps |
| Forwarding Rate | 565.44 Mpps |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz (1) USP-RPS DC input, 11.5VDC, 8.7A |
| Power Supply | AC/DC, Internal, 100W |
| Network Interface | (28) 1/10 Gbps SFP+ Ethernet (4) 1/10/25 Gbps SFP28 Ethernet* *The four SFP28 ports don't support mixed speed at 25Gbps mode. Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps. |
| LCM Display | (1) 1.3" Touchscreen Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| LEDs | SFP28/SFP+: White, Link and Activity |
| Management Interface | Ethernet In-Band |
| Modes | SMB Layer 3 10/25 G Fiber Switch |
| ESD/EMP Protection | Air: ± 16kV, Contact: ± 12kV |
| Operating Temperature | -5 to 40° C |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
